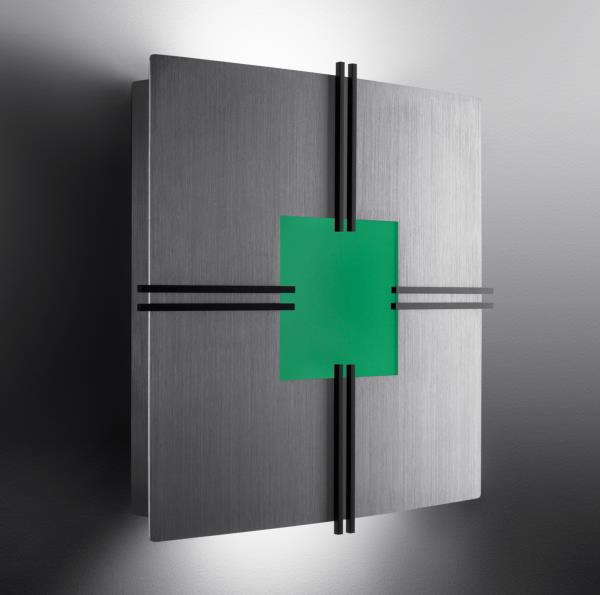

Sebring Exterior - Double Bars
AEW9905 17.70 in
Sebring Exterior - Double Bars
The Sebring is a wet location, ADA compliant sconce providing a path of egress lighting with sophisticated style. Color gels can add a vivid splash of color to complement our palette of powder coat or metal finishes. Sebring enhances a project by allowing design continuity, inside and out.
Sebring Exterior - Double Bars AEW9905

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Solid metal accents add high-quality, decorative element to fixture
  • Add a splash of color to a space with optional theatrical color gels (offered in five standard colors with custom colors available upon request)
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: IP66 white LED light engine or incandescent
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • CCT: Available LED color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER: Integral Class 2 power supply standard
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • LENS: Top and bottom glass lens standard with any LED module
  • CONSTRUCTION: Formed metal construction provides durable protection for internal components and is recyclable. Flush front.
  • FINISH: The face plate is aluminum and available in brushed or painted finishes.  Accents are available in brushed brass or can be painted.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in wet locations

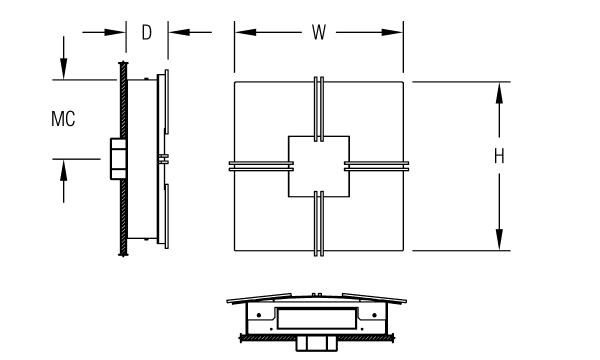

DIMENSIONS

Dimensions
W
17.7 in
45 cm
H
17.7 in
45 cm
D
4 in
10.2 cm
MC
8.8 in
22.4 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2N75 1 | 2INC75W/A19

1 Incandescent Lamp(s) Not Included

Voltage *

120V 2 | 120 Volt
120-277V | Universal Voltage

2 For incandescent light source only

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Not required with incandescent.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR-Damp includes damp location enclosure for Battery back-up. EMR-W/L includes a wet location enclosure for battery back-up.

EMR-DAMP | Emergency Battery Remote - Damp Location

Accents *

ACC | Decorative Accents

Color Accents *

Contact factory to customize a color gel that coordinates with your application.

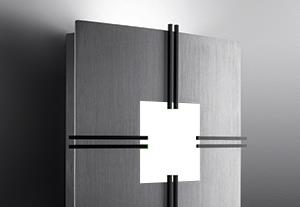

CG00 | White Color Gel

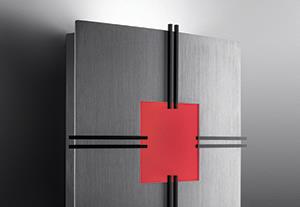

CG01 | Red Color Gel

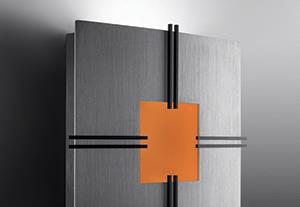

CG02 | Orange Color Gel

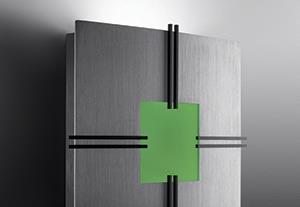

CG03 | Green Color Gel

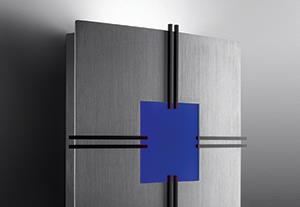

CG04 | Blue Color Gel

CG00
CG01
CG02
CG03
CG04
Request a modification
