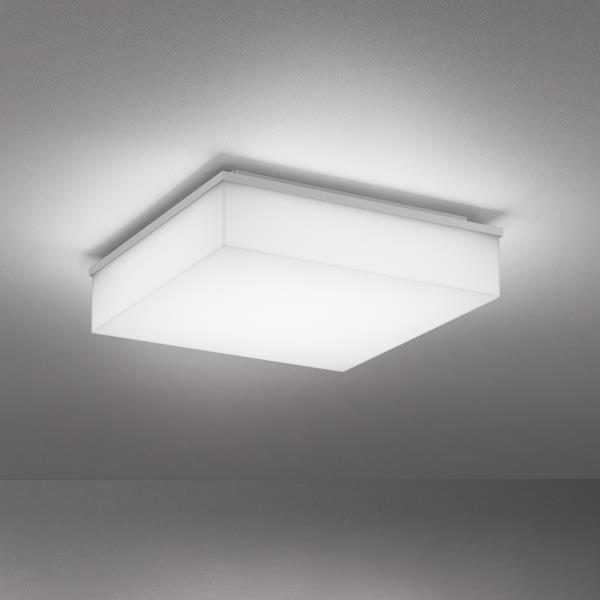

Novato Square - Ceiling
AIC11891 24 in
Novato Square - Ceiling
Part of SPI Lighting’s Luminous Forms collection, Novato Square is an architectural staple designed to deliver a wide range of soft, comfortable light. Fully luminous sides create a broader distribution of light, adding a component of vertical illumination to the ceiling and walls. Even illumination across the entire bottom diffuser gives the luminaire a uniform look. It’s clean, structured shape provides a sharp finish to your design. Novato Square is available in 16”, 24”, 36” and 48” sizes in pendant or ceiling mount.
Novato Square - Ceiling AIC11891

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully luminous sides brighten horizontal and vertical planes
  • 80% direct/20% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, mitered corners are well-lit
  • Fully enclosed to keep out dust and debris
  • Choose from two diffuser heights
  • Mix and match with the entire Novato Family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE:  L80 = >60,000 Hrs.
  • EFFICACY:  84 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • FINISH:  Tailor the mounting plate to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to a standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

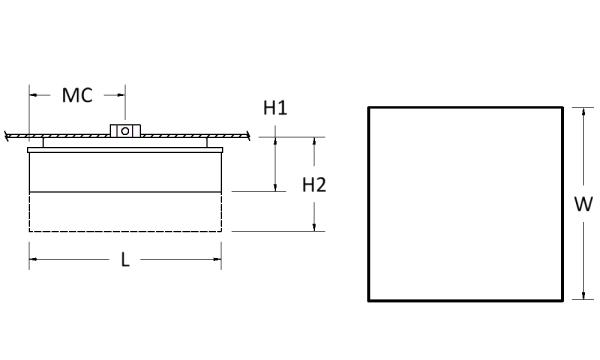

DIMENSIONS

Dimensions
W
24 in
61 cm
H1
6.8 in
17.3 cm
H2
11.8 in
30 cm
MC
12 in
30.5 cm
L
24 in
61 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L72W | White 72W LED Light Engine

Delivered Lumens: 6,064

L143W | White 143W LED Light Engine

Delivered Lumens: 12,128


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser Height *

Please choose one:

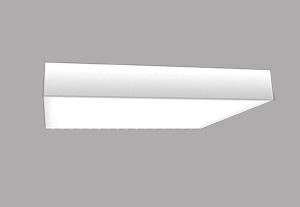

H05 | 5" Height

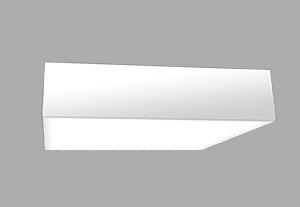

H10 | 10" Height

H05
H10

Diffuser Finish *

FB00 | Matte Opal Diffuser
FB00
