Novato Square - Ceiling
AIC11892 36.00 in
Novato Square - Ceiling
Part of SPI Lighting’s Luminous Forms collection, Novato Square is an architectural staple designed to deliver a wide range of soft, comfortable light. Fully luminous sides create a broader distribution of light, adding a component of vertical illumination to the ceiling and walls. Even illumination across the entire bottom diffuser gives the luminaire a uniform look. It’s clean, structured shape provides a sharp finish to your design. Novato Square is available in 16”, 24”, 36” and 48” sizes in pendant or ceiling mount.
Novato Square - Ceiling AIC11892

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully luminous sides brighten horizontal and vertical planes
  • 80% direct/20% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, mitered corners are well-lit
  • Fully enclosed to keep out dust and debris
  • Choose from two diffuser heights
  • Mix and match with the entire Novato Family
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L80 = >60,000 Hrs.
  • EFFICACY:  84 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • FINISH:  Tailor the mounting plate to your space. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to a standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, or rectangles
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

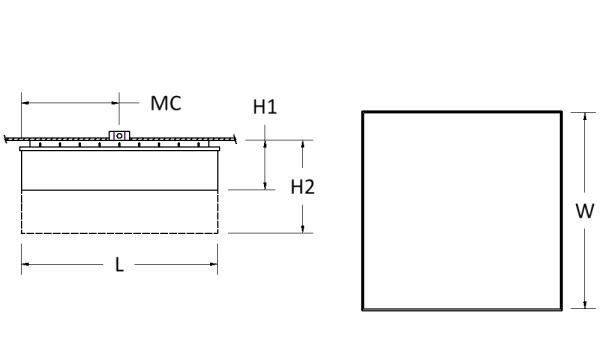

DIMENSIONS

Dimensions
W
36 in
91.4 cm
H1
9.2 in
23.4 cm
H2
13.2 in
33.5 cm
MC
18 in
45.7 cm
L
36 in
91.4 cm
Mounting Weight
Approximate: 40 lb (19 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L158W | White 158W LED Light Engine

Delivered Lumens: 13,341

L315W | White 315W LED Light Engine

Delivered Lumens: 26,681

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 158.0 - Max 315.0
LU   Min 13367 - Max 26649

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Diffuser Height *

Please choose one:

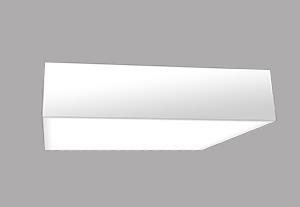

H07.5 | 7.5" Height

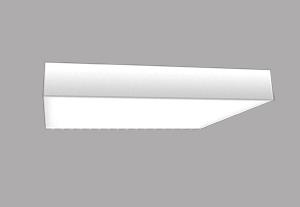

H11.5 | 11.5" Height

H07.5
H11.5

Diffuser Finish *

FB00 | Matte Opal Diffuser

FB00

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Request a modification
prev
close
next

Novato Square Ceiling - PowerBack Rehabilitation
Greg Mitchell Photography

Novato Square Ceiling - PowerBack Rehabilitation
image 1 of 4

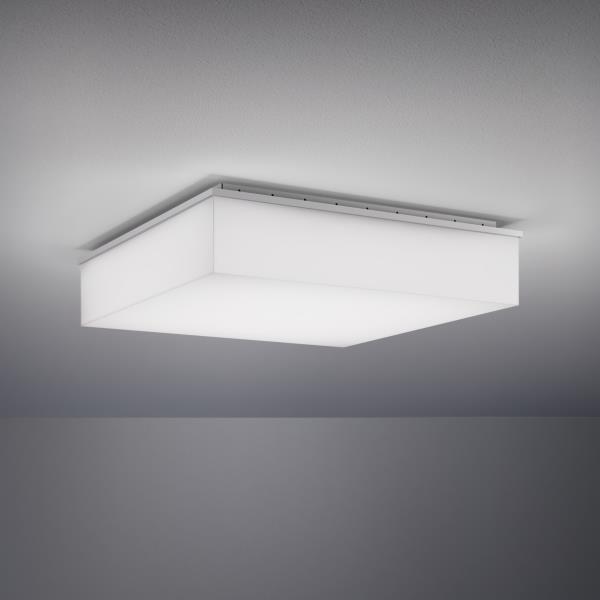

Novato Square - Ceiling (H10)
