Darby - 36"
AIP11432 36.00 in
Darby - 36"

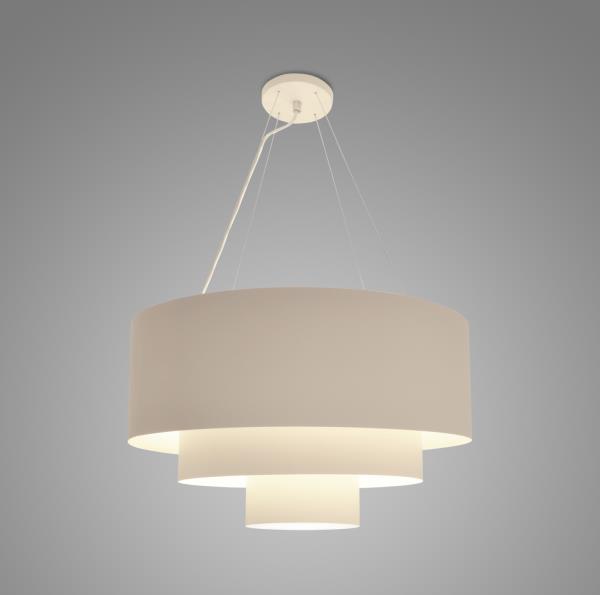

Fill your space with beauty and light. Darby is a tiered, drum shaped pendant that can be painted to match any décor. Specify it with a direct/indirect distribution that adds light to the ceiling plane or choose direct-only depending on the application. Available in 24” and 36” diameters, Darby is a great choice for dining halls, ballrooms, foyers, and other open spaces. Hang it in arrays or cluster pendants for a dramatic effect.
Darby - 36" AIP11432

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Elegant multi-tiered styling
  • Optional uplight component helps eliminate the "cave effect"
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • LENS:  Top lens and bottom lens standard with any LED module
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

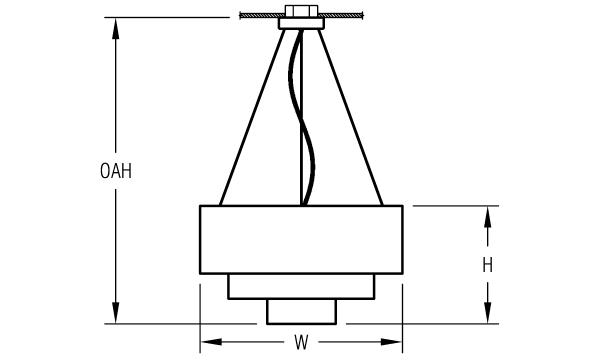

DIMENSIONS

Dimensions
W
36 in
91.4 cm
H
21 in
53.3 cm
OAH
36 in
91.4 cm
Mounting Weight
Approximate: 75 lb (35 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L57W 1 | Direct Only - White 57W LED Light Engine

Delivered Lumens: 3,420
L86W | Direct/Indirect - White 86W LED Light Engine

Delivered Lumens: 5,130

L115W 1 | Direct Only - White 115W LED Light Engine

Delivered Lumens: 10,320
L172W | Direct/Indirect - White 172W LED Light Engine

Delivered Lumens: 10,259


1 Contact factory for photometrics

Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

CRI

80 | (default)
90

Mounting *

Mounts to standard 4" octagonal junction box. Additional mounting structure and hardware required (by others). Field adjustable aircraft cables allow the fixture to be mounted at an application appropriate height (up to OAH).

DF_AC | Aircraft cable and power cord (default)

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

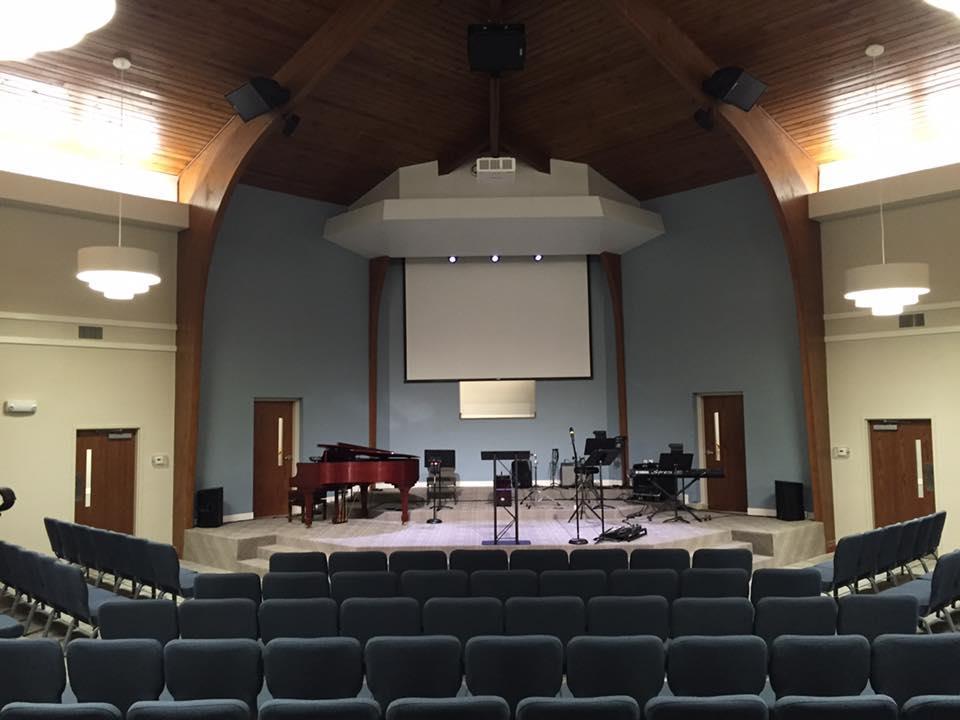

Darby - Living Hope at Ballantyne

<< BACK TO THUMBNAILS
Darby - Living Hope at Ballantyne
image 1 of 2

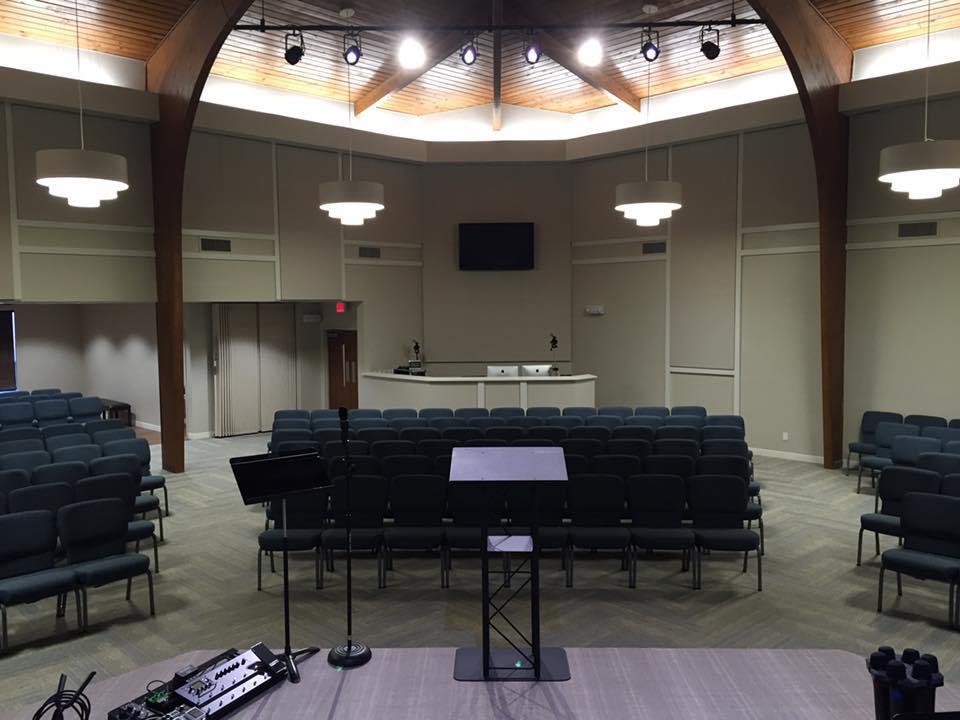

Darby - Living Hope at Ballantyne
