Novato Square - Pendant
Novato Square - Pendant
AIP11883 36.00 in

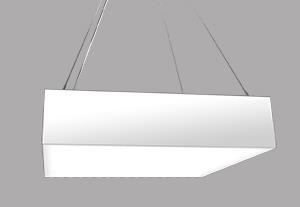

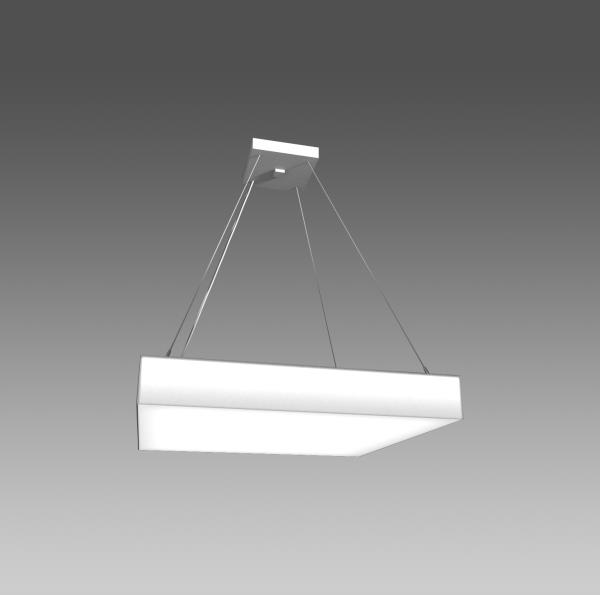

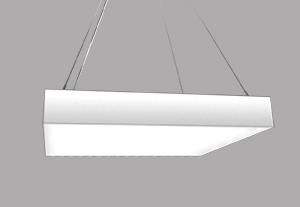

Novato Square - Pendant
Part of SPI Lighting’s Luminous Forms collection, Novato Square is an architectural staple designed to deliver a wide range of soft, comfortable light. Fully luminous sides create a broader distribution of light, adding a component of vertical illumination to the ceiling and walls. Even illumination across the entire bottom diffuser gives the luminaire a uniform look. It’s clean, structured shape provides a sharp finish to your design. Novato Square is available in 16”, 24”, 36” and 48” sizes in pendant or ceiling mount.
Novato Square - Pendant AIP11883

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully luminous sides brighten horizontal and vertical planes
  • 80% direct/20% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, mitered corners are well-lit
  • Fully enclosed to keep out dust and debris
  • Choose from two diffuser heights
  • Mix and match with the entire Novato Family
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L85 = >60,000 Hrs.
  • EFFICACY:  84 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • FINISH:  Tailor the canopy to your space. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, straight cable mounting or rectangles
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

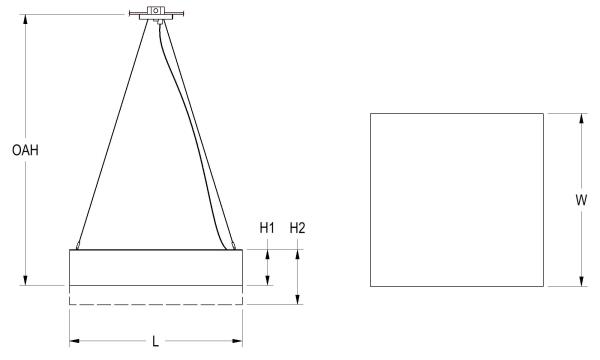

DIMENSIONS

Dimensions
W
36 in
91.4 cm
H1
7.4 in
18.8 cm
H2
11.4 in
29 cm
OAH
54 in
137.2 cm
L
36 in
91.4 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L158W | White 158W LED Light Engine

Delivered Lumens: 13,341

L315W | White 315W LED Light Engine

Delivered Lumens: 26,681


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Diffuser Height *

Please choose one:

H07.5 | 7.5" Height
H11.5 | 11.5" Height

H07.5
H11.5

Diffuser Finish *

FB00 | Matte Opal Diffuser

FB00

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. 7" canopy features field adjustable aircraft cables that allow the fixture to be mounted at an application appropriate height (up to OAH). White power cord.

DF_AC | Aircraft cable and power cord (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
