FEATURES & BENEFITS

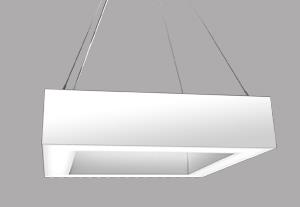

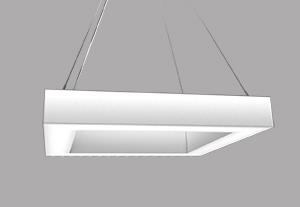

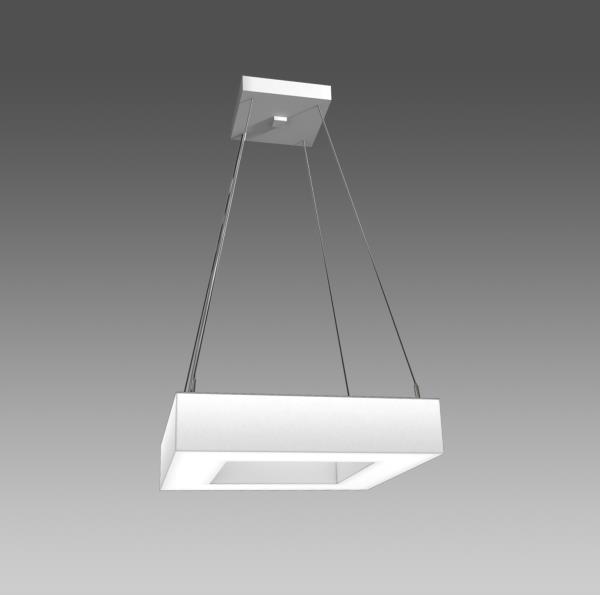

- Fully enclosed three-sided luminous form brightens horizontal and vertical planes
- Provides functional lighting with comfortable luminance levels
- Hand-fabricated construction maintains crisp, clean edges
- Seamless construction
- Diffuser available in two heights (see line art for details)
- Hang individually or consult factory to arrange in tiered or nested configurations
- Handcrafted in USA
SPECIFICATIONS
- LIGHT SOURCE: White LED light engine (contact factory for RGBW or Tunable White)
- CRI: 80+ or 90+
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- EFFICACY: 104 lm/W delivered
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- VOLTAGE: 120-277V standard
- DRIVER: Class 2 power supply integrated in canopy. Max distance to the driver (including OAH) is: #18 AWG = 50’, #16 AWG = 75’, #14 AWG = 100’. For extended distances, contact factory.
- DIMMING: 0-10V controls standard to 1% on LED light engines
- CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
- DIFFUSER: Matte opal acrylic
- FINISH: Top plate is always white (PT01). Canopy finished to your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, straight cable mounting, rectangles, or acoustic panel options
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

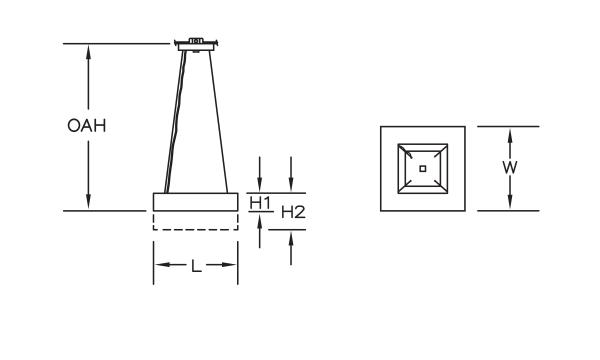

DIMENSIONS
Dimensions
Mounting Weight
Approximate: 10 lb (5 kg)
