Novato Concave Ring
AIP11968 52.00 in

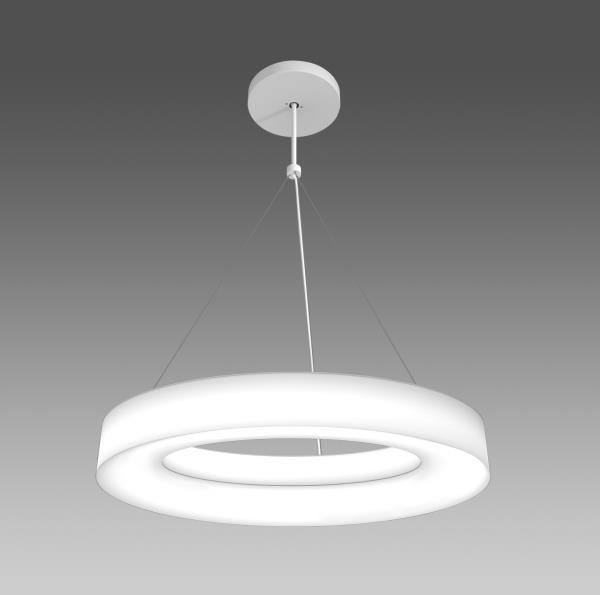

Novato Concave Ring
While highly functional, the Novato family provides a playful twist to make a lasting impression. Versatility is the main strength of this collection as they are perfectly suited for a wide range of modern or traditional environments. Customize your visual environment with the Novato Concave Ring by choosing a matte acrylic diffuser or from four fabric options. Available in 26", 39", and 52" diameters.
Novato Concave Ring AIP11968

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Hang individually or consult factory to arrange in tiered, orbiting, or nested configurations
  • Optional fabric lenses are cleanable
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 90+HE
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  102 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy. Max distance to the driver is 15' (includes OAH). For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER:  Choose matte opal diffuser or from four fabrics
  • CONSTRUCTION:  Seamless bottom and minimal lap joint(s) on inner and outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Canopy, stem, and hub finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

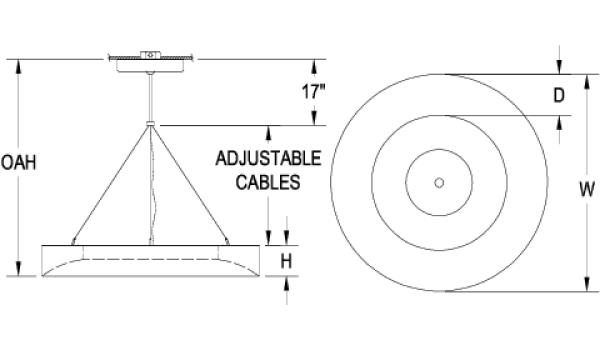

DIMENSIONS

Dimensions
W
52 in
132.1 cm
H
7.5 in
19 cm
D
10 in
25.4 cm
OAH
54 in
137.2 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L75W | White 75W LED Light Engine

Delivered Lumens: 7,701

L151W | White 151W LED Light Engine

Delivered Lumens: 15,403

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 75.0 - Max 151.0
LU   Min 7665 - Max 15432

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90+HE | 90+ High Efficacy

Diffuser Finish *

Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen
FB00
FB01
FB02
FB03
FB05

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Power supply canopy features a 45 degree swivel and meets earthquake requirements. Fixture suspends from hub by 3 aircraft cables and includes white power cord. Field adjustable aircraft cable allows the fixture to be mounted at an application appropriate height (up to OAH).

DF_PSS | 12" Power Supply Canopy & Stem (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. Finished ceiling to bottom of the hub is constant at 17" regardless of OAH. Minimum adjustable cable length is half of fixture width (W).

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
