Novato Convex Ring
AIP11979 39 in

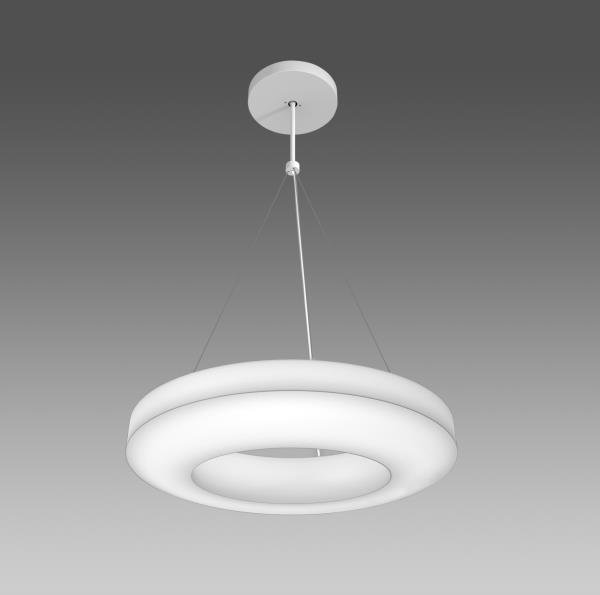

Novato Convex Ring
While highly functional, the Novato family provides a playful twist to make a lasting impression. Versatility is the main strength of this collection as they are perfectly suited for a wide range of modern or traditional environments. Customize your visual environment with the Novato Convex Ring by choosing a matte acrylic diffuser or from four fabric options. Available in 26", 39", and 52" diameters.
Novato Convex Ring AIP11979

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Hang individually or consult factory to arrange in tiered, orbiting, or nested configurations
  • Optional fabric lenses are cleanable
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • EFFICACY:  102 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class II power supply integrated in canopy.  Max distance to the driver is 15'.  For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • DIFFUSER:  Choose matte opal diffuser or from four fabrics
  • CONSTRUCTION:  Seamless bottom and minimal lap joint(s) on inner and outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Canopy, stem, and hub finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

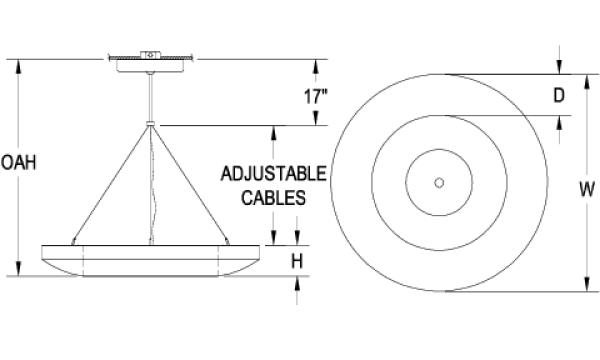

DIMENSIONS

Dimensions
W
39 in
99.1 cm
H
6.5 in
16.5 cm
D
8.5 in
21.6 cm
OAH
54 in
137.2 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L54W | White 54W LED Light Engine

Delivered Lumens: 5,502

L108W | White 108W LED Light Engine

Delivered Lumens: 11,004


Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser Finish *

Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

Mounting

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Power supply canopy features a 45 degree swivel and meets earthquake requirements. Fixture suspends from hub by 3 aircraft cables and includes white power cord. Field adjustable aircraft cable allows the fixture to be mounted at an application appropriate height (up to OAH).

DF_PSS | 12" Power Supply Canopy & Stem (default)

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. Finished ceiling to bottom of the hub is constant at 17" regardless of OAH. Minimum adjustable cable length is half of fixture width (W).

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
