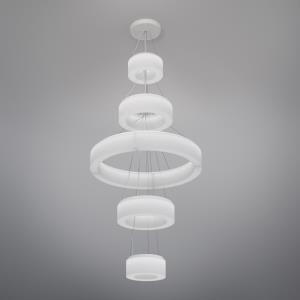

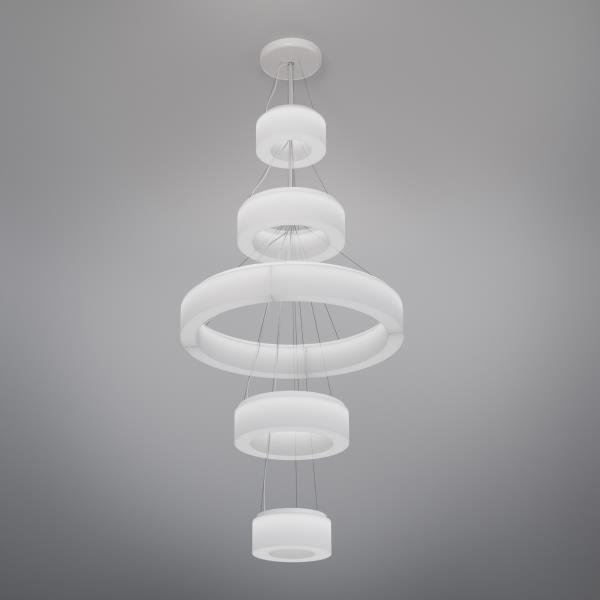

Stunningly elegant, the Novato Tiers chandelier is comprised of five perfectly proportioned Novato Rings. Each ring is fully enclosed and delivers an impressive amount of light. Measuring more than 10 feet tall, this chandelier demands attention and is sure to turn heads. Think of it as a centerpiece in contemporary atriums or lobbies.
Novato Tiers AIP11987

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Rings measure 24", 36" and 72" in diameter
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Hand-fabricated construction maintains crisp, clean edges
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Mix and match with entire Novato Family
  • Provides functional lighting with comfortable luminance levels
  • Single point mounting simplifies installation
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 102 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply(s)
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Edges are fused with solvent that permanently binds acrylic. 24" and 36" rings: diffuser has a seamless bottom and minimal lap joint(s) on its inner and outer surfaces. 72" ring is shipped in 4 segments. Segments are connected by powerful magnetics and secured with a mechanical connection. Plug & play wiring between sections expedites installation.
  • FINISH: Canopy and mounting components finished to match your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request. Each ring's top plate and channel are painted Super White (PT01).
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes or configurations
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

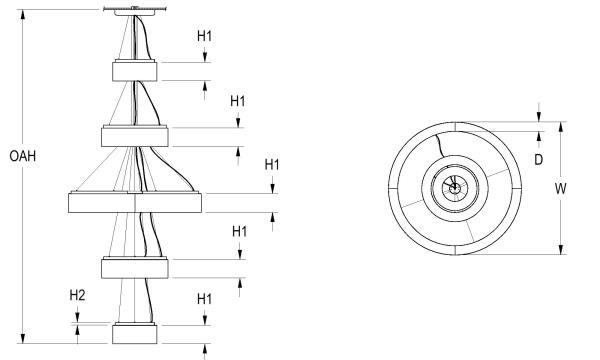

DIMENSIONS

Dimensions
W
72 in
182.9 cm
H1
10 in
25.4 cm
H2
1.5 in
3.8 cm
D
5 in
12.7 cm
OAH
181.5 in
461 cm
Mounting Weight
Approximate: 120 lb (55 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L290W | White 290W LED Light Engine

Delivered Lumens: 29,580
L581W | White 581W LED Light Engine

Delivered Lumens: 59,262

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Diffuser Finish *

FB00 | Matte Opal Diffuser

FB00

Mounting *

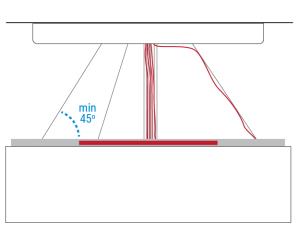

Mounts using auxiliary mounting holes. Additional support required (by others). Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The minimum adjustable cable length is half the diameter of each ring. Cables must be at least 45° to the fixture. Hubs are located inside the top two rings.

DF_MIA | 22" Canopy, Aircraft Cables & White Power Cords

MIA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
