Novato Globes- Pendant
40% more delivered lumens | 9 sizes | Consistent luminance
AIP12380
Novato Globes- Pendant

Our exceptional Novato Globes are designed to elevate any space with unmatched versatility. Create stunning focal points or subtle accents in any room by choosing from nine distinct sizes – more than any other manufacturer.

Our innovative technology ensures consistent luminance across all sizes, allowing you to mix and match without worrying about disparities in brightness. Enjoy over 40% more delivered lumens than acrylic globes, providing a brilliant glow and superior illumination to enhance your design.

Built with impact-rated durability, these exquisite PolySatin luminaires are made to withstand daily wear and tear while maintaining their beauty and functionality.

Novato Globes- Pendant AIP12380

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • 9 sizes to choose from for complete design freedom
  • Consistent luminance between all sizes
  • PolySatin diffuser allows for 40% more delivered lumens
  • All visible fasteners are flush mounted, providing a clean design
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: Static white, tunable white, or RGBW LED light engine
  • CRI: 80+, 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 121 lm/W
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply standard for white light engines. RGBW has a remote DMX driver; max distance to the driver is 15' (includes OAH).
  • DIMMING: 0-10V controls standard to 1% on static white light engines. DALI-2 (DT8) standard for tunable white. DMX standard for RGBW. Other dimming options are available; contact factory.
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: One-piece, molded thermoplastic with a satin finish. UV inhibitor combined with thermoplastic material before molding.
  • CONSTRUCTION:  Aluminum housing
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors, brushed aluminum, or brass finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including different sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

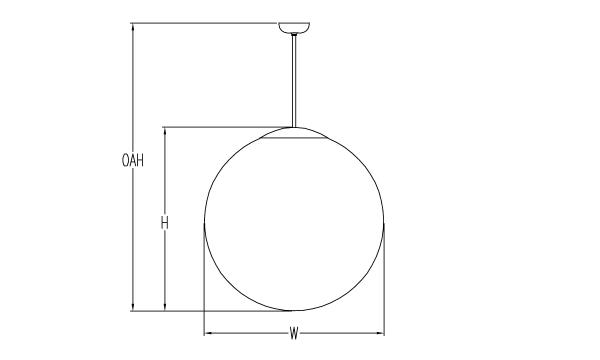

DIMENSIONS

Dimensions
10IN
W
10 in
25.4 cm
H
10 in
25.4 cm
OAH
58 in
147.3 cm
Mounting Weight: Approximate: 5 lb (3 kg)
12IN
W
12 in
30.5 cm
H
12 in
30.5 cm
OAH
60 in
152.4 cm
Mounting Weight: Approximate: 5 lb (3 kg)
14IN
W
14 in
35.6 cm
H
14 in
35.6 cm
OAH
62 in
157.5 cm
Mounting Weight: Approximate: 6 lb (3 kg)
16IN
W
16 in
40.6 cm
H
16 in
40.6 cm
OAH
64 in
162.6 cm
Mounting Weight: Approximate: 7 lb (4 kg)
18IN
W
18 in
45.7 cm
H
18 in
45.7 cm
OAH
66 in
167.6 cm
Mounting Weight: Approximate: 8 lb (4 kg)
20IN
W
20 in
50.8 cm
H
20 in
50.8 cm
OAH
68 in
172.7 cm
Mounting Weight: Approximate: 10 lb (5 kg)
22IN
W
22 in
55.9 cm
H
22 in
55.9 cm
OAH
70 in
177.8 cm
Mounting Weight: Approximate: 11 lb (5 kg)
24IN
W
24 in
61 cm
H
24 in
61 cm
OAH
72 in
182.9 cm
Mounting Weight: Approximate: 12 lb (6 kg)
27IN
W
27 in
68.6 cm
H
27 in
68.6 cm
OAH
75 in
190.5 cm
Mounting Weight: Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. White light engines are available in alternative wattages upon request. 80 CRI standard for RGBW products



10 INCH DIAMETER FIXTURE
10IN-L5W | Static White 5W LED Light Engine

Delivered Lumens: 606

10IN-L5W-T | Tunable White 5W LED Light Engine

Delivered Lumens: 606

10IN-10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211

10IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211

10IN-L9W-C 1 | RGBW 9W LED Light Engine

Delivered Lumens: 363
12 INCH DIAMETER FIXTURE
12IN-L7W | Static White 7W LED Light Engine

Delivered Lumens: 848

12IN-L7W-T | Tunable White 7W LED Light Engine

Delivered Lumens: 848

12IN-L14W | Static White 14W LED Light Engine

Delivered Lumens: 1,695

12IN-L14W-T | Tunable White 14W LED Light Engine

Delivered Lumens: 1,695

12IN-L14W-C 1 | RGBW 14W LED Light Engine

Delivered Lumens: 605
14 INCH DIAMETER FIXTURE
14IN-L10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211

14IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211

14IN-L19W | Static White 19W LED Light Enging

Delivered Lumens: 2,301

14IN-L19W-T | Tunable White 19W LED Light Engine

Delivered Lumens: 2,301

14IN-L22W-C 1 | RGBW 22W LED Light Engine

Delivered Lumens: 968
16 INCH DIAMETER FIXTURE
16IN-L12W | Static White 12W LED Light Engine

Delivered Lumens: 1,453

16IN-L12W-T | Tunable White 12W LED Light Engine

Delivered Lumens: 1,453

16IN-L24W | Static White 24W LED Light Engine

Delivered Lumens: 2,906

16IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906

16IN-L29W-C 1 | RGBW 29W LED Light Engine

Delivered Lumens: 1,331
18 INCH DIAMETER FIXTURE
18IN-L16W | Static White 16W LED Light Engine

Delivered Lumens: 1,938

18IN-L16W-T | Tunable White 16W LED Light Engine

Delivered Lumens: 1,938

18IN-L31W | Static White 31W LED Light Engine

Delivered Lumens: 3,754

18IN-L31W-T | Tunable White 31W LED Light Engine

Delivered Lumens: 3,754

18IN-L36W-C 1 | RGBW 36W LED Light Engine

Delivered Lumens: 1,694
20 INCH DIAMETER FIXTURE
20IN-L20W | Static White 20W LED Light Engine

Delivered Lumens: 2,422

20IN-L20W-T | Tunable White 20W LED Light Engine

Delivered Lumens: 2,422

20IN-L39W | Static White 39W LED Light Engine

Delivered Lumens: 4,723

20IN-L39W-T | Tunable White 39W LED Light Engine

Delivered Lumens: 4,723

20IN-L43W-C 1 | RGBW 43W LED Light Engine

Delivered Lumens: 1,936
22 INCH DIAMETER FIXTURE
22IN-L24W | Static White 24W LED Light Engine

Delivered Lumens: 2,906

22IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906

22IN-L46W | Static White 46W LED Light Engine

Delivered Lumens: 5,571

22IN-L46W-T | Tunable White 46W LED Light Engine

Delivered Lumens: 5,571

22IN-L50W-C 1 | RGBW 50W LED Light Engine

Delivered Lumens: 2,299
24 INCH DIAMETER FIXTURE
24IN-L28W | Static White 28W LED Light Engine

Delivered Lumens: 3,391

24IN-L28W-T | Tunable White 28W LED Light Engine

Delivered Lumens: 3,391

24IN-L55W | Static White 55W LED Light Engine

Delivered Lumens: 6,661

24IN-L55W-T | Tunable White 55W LED Light Engine

Delivered Lumens: 6,661

24IN-L57W-C 1 | RGBW 57W LED Light Engine

Delivered Lumens: 2,662
27 INCH DIAMETER FIXTURE
27IN-L35W | Static White 35W LED Light Engine

Delivered Lumens: 4,239

27IN-L35W-T | Tunable White 35W LED Light Engine

Delivered Lumens: 4,239

27IN-L71W | Static White 71W LED Light Engine

Delivered Lumens: 8,598

27IN-L71W-T | Tunable White 71W LED Light Engine

Delivered Lumens: 8,598

27IN-L71W-C 1 | RGBW 71W LED Light Engine

Delivered Lumens: 3,267

1 RGBW delivered lumens shown are for white only at 3000K

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Tunable White delivered lumens vary +/-5% from the values shown depending on the color temperature selected.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT
TUN | Tunable White 2700K-6500K CCT
RGBW 2 | RGBW 3000K CCT (This is the only choice when an RGBW light source is selected in Section A)

CRI *

DF_90+HE | 90+ High Efficacy

2 Use DMX/DALI programming for alternate color temps; see programming guide

Mounting *

Mounts to standard 4" octagonal junction box. White power cord standard, adjustable up to OAH. Canopies for the remote power supplies feature minimal profile with a 22.5 degree swivel. Choose a mounting from below:

CAA | 5" Canopy & Aircraft Cable, Remote Supply
CAS | 5.5" Canopy & Stem, Remote Supply
PSA | 10" Power Supply Canopy & Aircraft Cable
PSS | 10" Power Supply Canopy & Stem

CAA
CAS
PSA
PSS

Emergency

EMR | Emergency Battery Remote

Options

F | Fusing

Other Than Standard Options

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
For Tunable White or RGBW, see Driver section for any exceptions.

OAH
Request a modification
prev
close
next

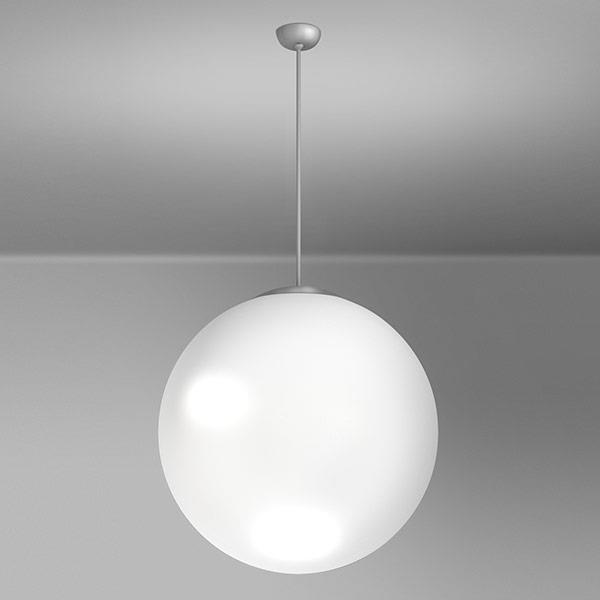

Novato Globes - 9 Sizes
