Loris - 9", 16"
AIP12047 16.60 in
Loris - 9", 16"

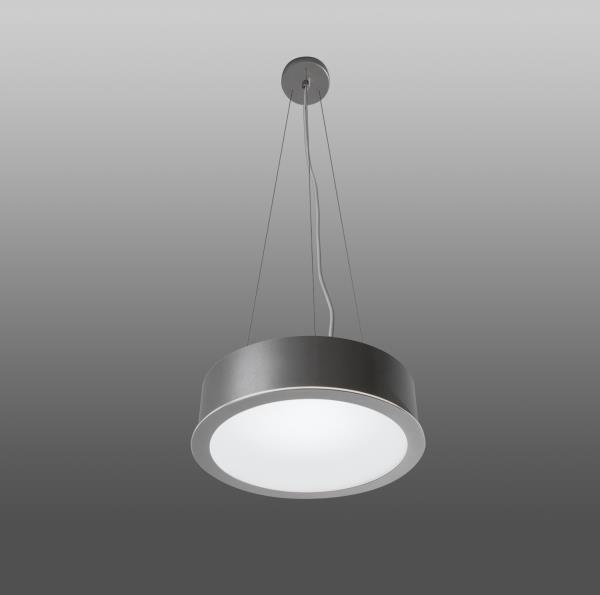

When you want to make a simple statement, the minimalistic cylindrical design of the Loris Collection fits the bill. It offers a coordinated line of pendants available in multiple diameters and heights, all with aluminum housing that can be powder coated in a variety of paint colors. Mix and match to create a unique visual statement. Loris small diameter pendants deliver impactful downlight illumination and are offered in two housing height options. The aircraft cable suspension mounting style provides versatility in design by allowing for different suspension heights.
Loris - 9", 16" AIP12047

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Highly transmissive diffusing acrylic enhances spaces with filtered illumination
  • Spun-metal trim ring adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  99 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • TOP LENS:  Any upward facing LEDs will be covered with a protective lens
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

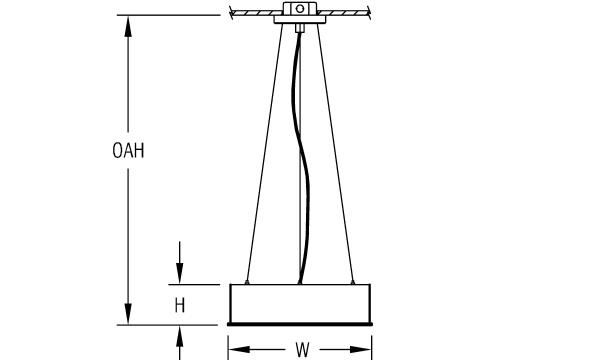

DIMENSIONS

Dimensions
W
16.6 in
42.2 cm
H
4.7 in
11.9 cm
OAH
36 in
91.4 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L14W | White 14W LED Light Engine

Delivered Lumens: 1,386


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Mounting *

Mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow the fixture to be mounted at an application appropriate height (up to OAH). Cables must be at an angle greater than or equal to 45° to fixture.

DF_AC | Aircraft cable and power cord (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

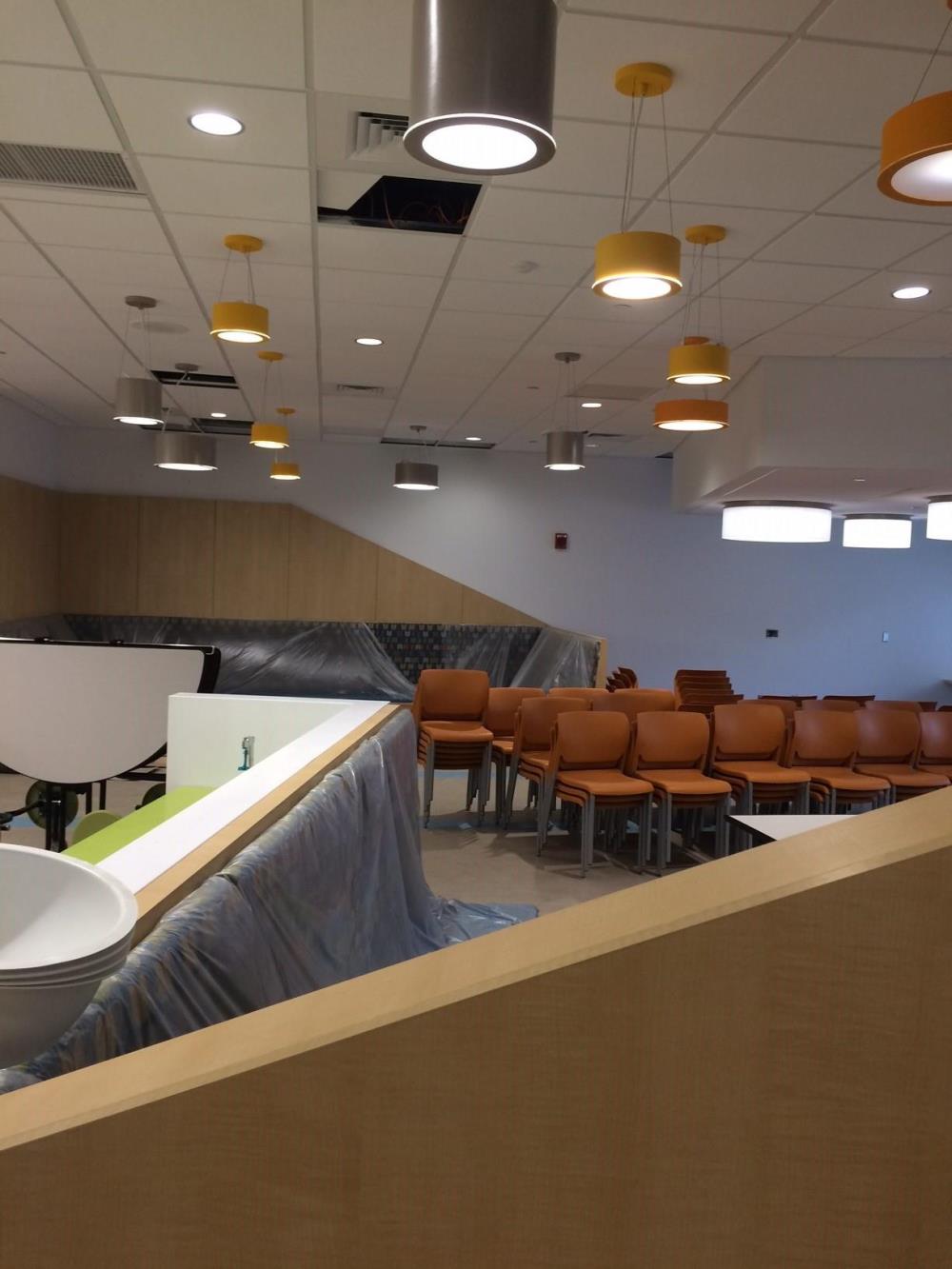

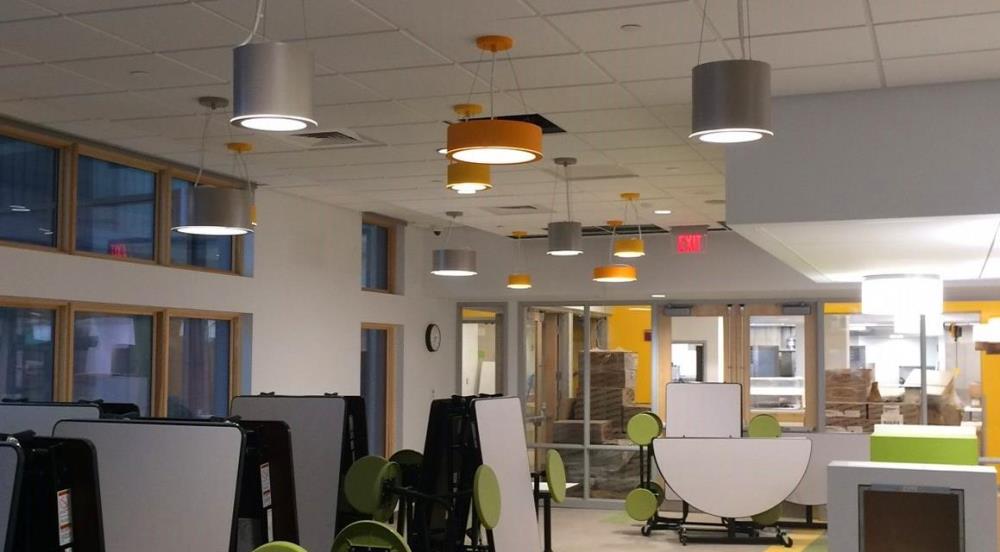

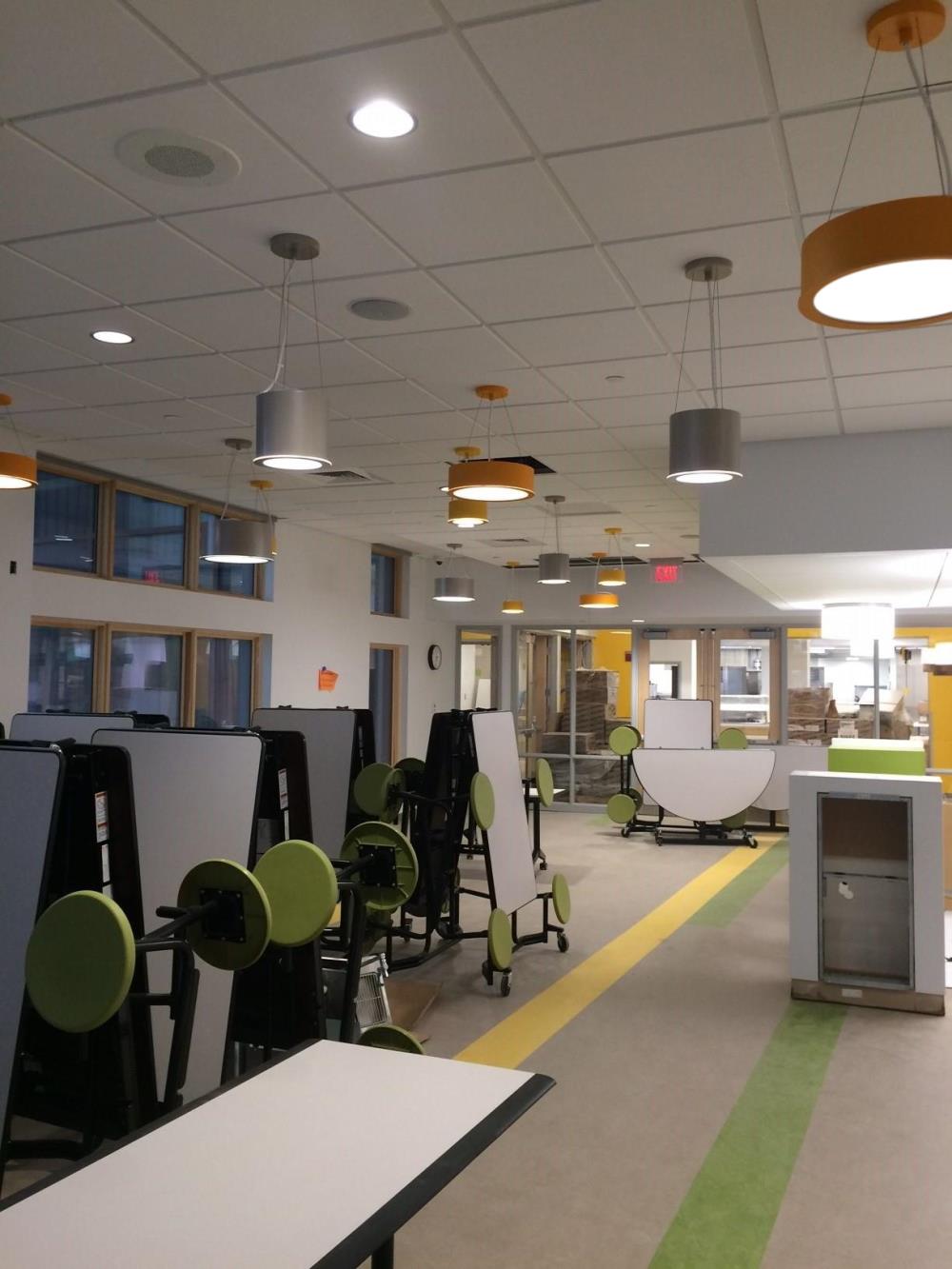

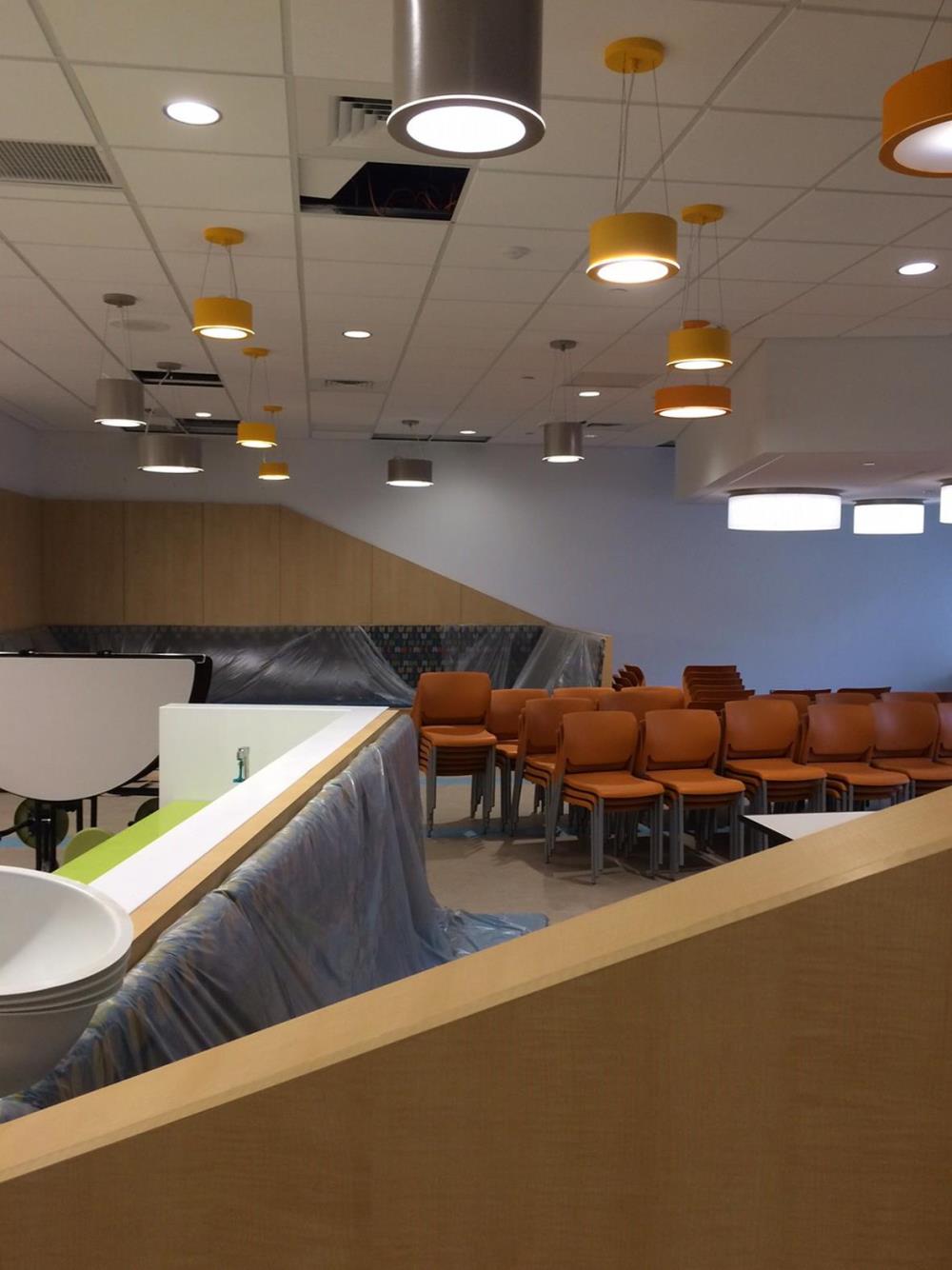

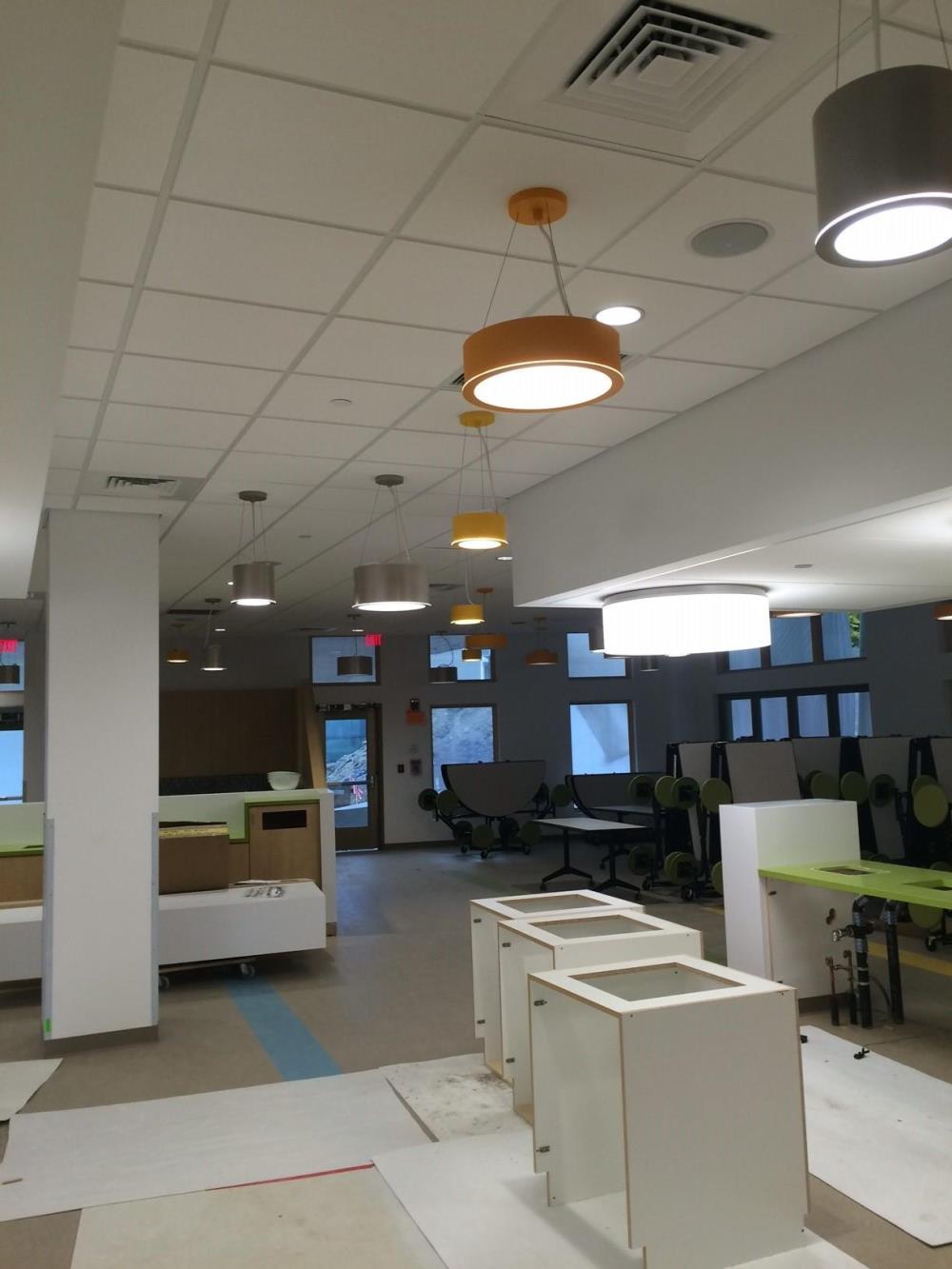

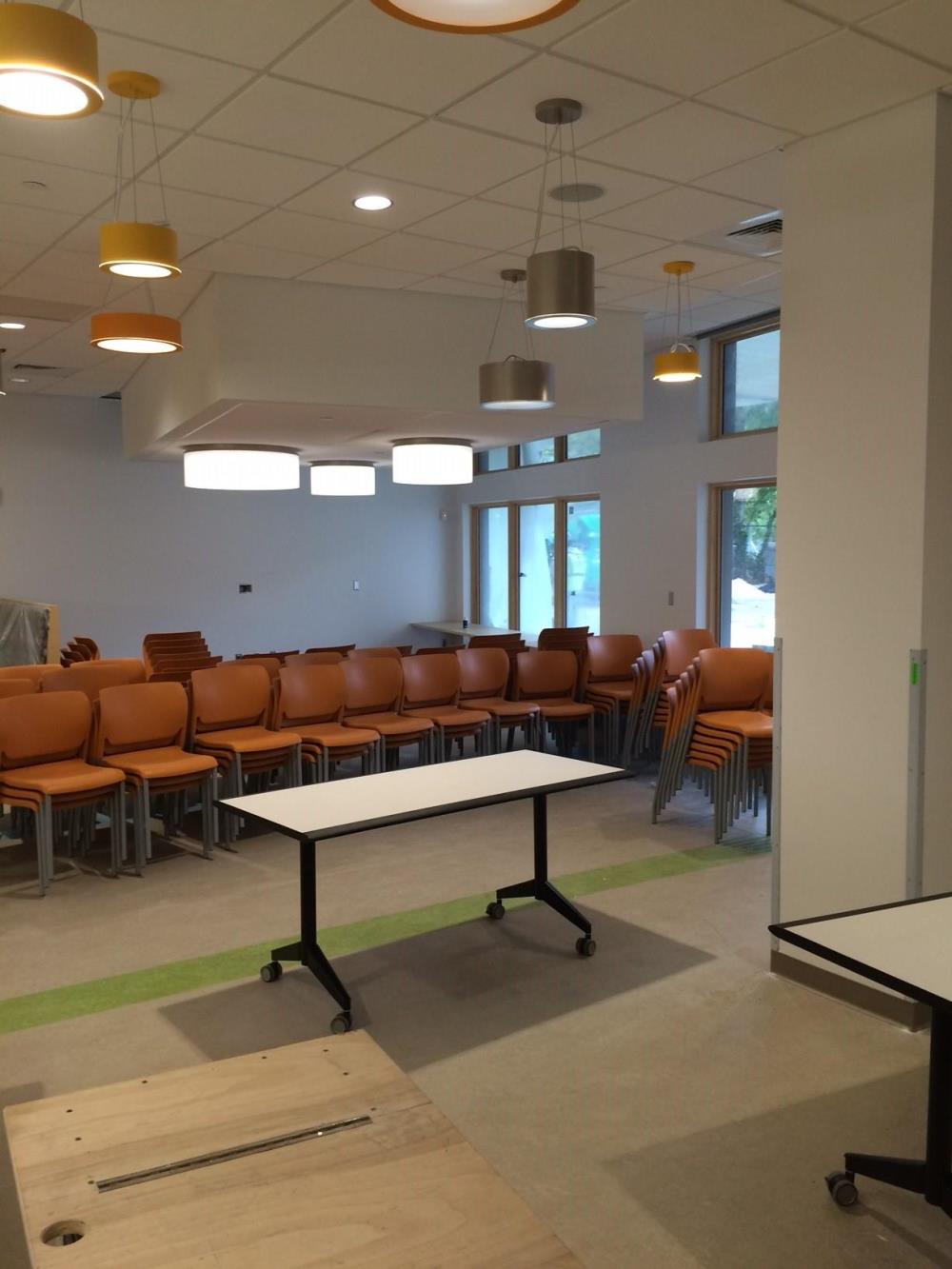

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 1 of 8

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 2 of 8

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 3 of 8

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 4 of 8

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 5 of 8

Mini Loris - Martin Luther King High School - Cafeteria

<< BACK TO THUMBNAILS
Mini Loris - Martin Luther King High School - Cafeteria
image 6 of 8

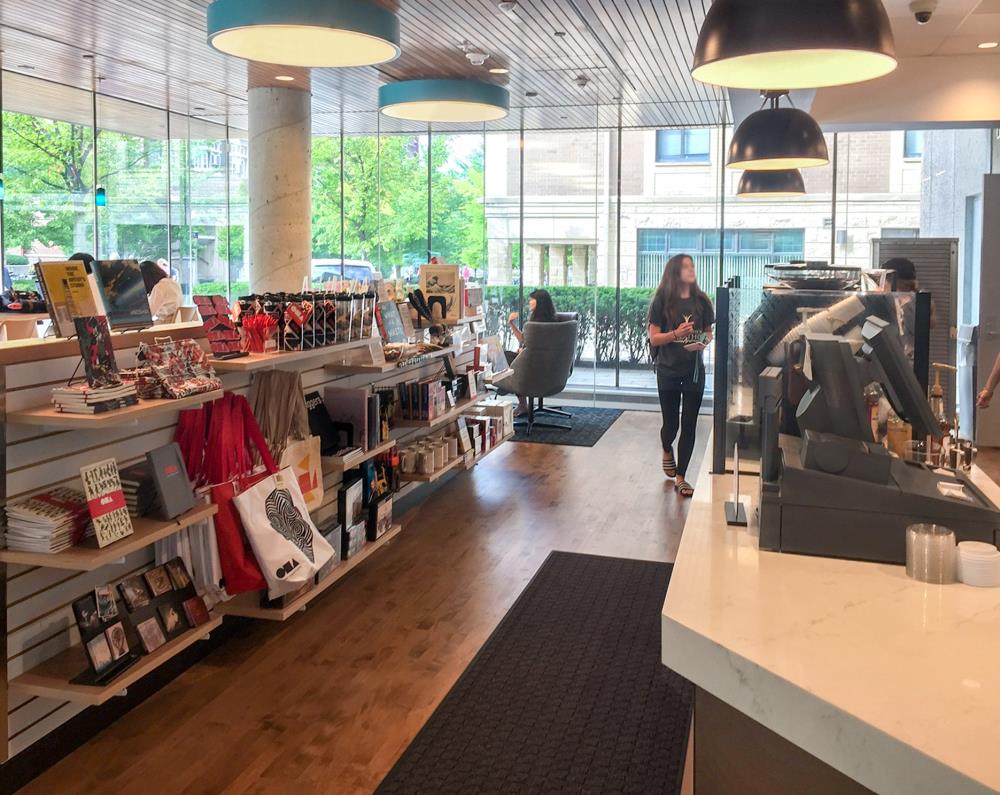

Loris Ceiling (modified) - Chazen Museum of Art, University of Wisconsin-Madison
