Zynn Ring Tiers
Custom designs made easy
Zynn Ring Tiers
Custom designs made easy
Zynn Ring Tiers
Custom designs made easy
Zynn Ring Tiers
Custom designs made easy
AIP12166 58.60 in
Zynn Ring Tiers

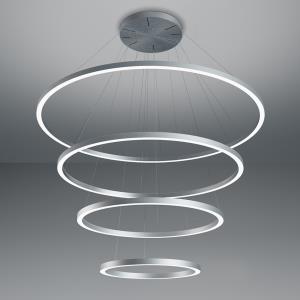

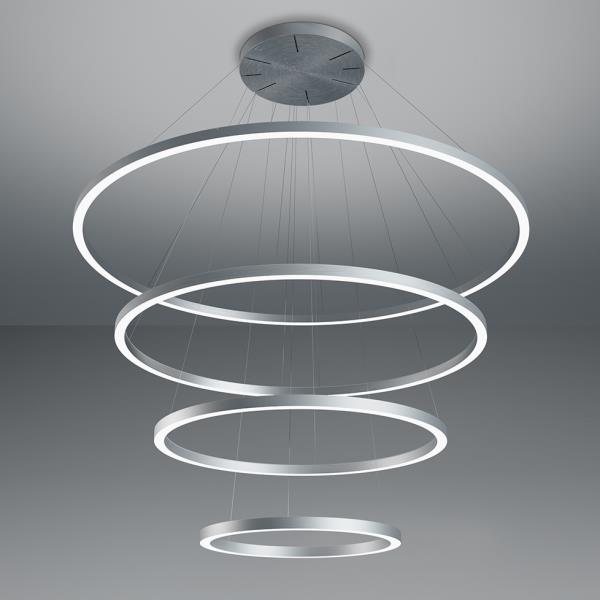

Combine 2', 3', 4', and 5' Zynn Rings into a unified design element with this versatile four-tiered chandelier. Each ring’s slim 1.25” cross-section carefully balances visual comfort with performance, making this more than a work of art. Seamless construction and nearly invisible energized cables add a new level of refinement that’s essential to your most important projects. Beyond that, adjustable cables give you the freedom to configure a special look that flows with your design. Create tiered, orbiting, or cascading configurations all with the same fixture. Also available in three-tier configurations. Other configurations available upon request.
Zynn Ring Tiers AIP12166

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • One of the slimmest ring profiles on the market
  • Seamless body and seamless diffuser with no pixelation
  • Diffuser sits slightly regressed (.03") from bottom edge of fixture
  • Exceptionally clean visual appearance from all angles
  • Go cordless with 1mm energized cable mounting options
  • Cables are field adjustable (up to OAH) enabling multiple looks with the same fixture
  • Available in direct or semi-direct distributions
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: Up to 59 lm/W delivered with power cord
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Class 2 power supply integrated in canopy. See mounting section for max driver distances.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and canopy finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate number of tiers or ring sizes and remote driver options
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in dry locations with use of energized cables or damp locations with use of power cord; not suitable for exterior applications

DIMENSIONS

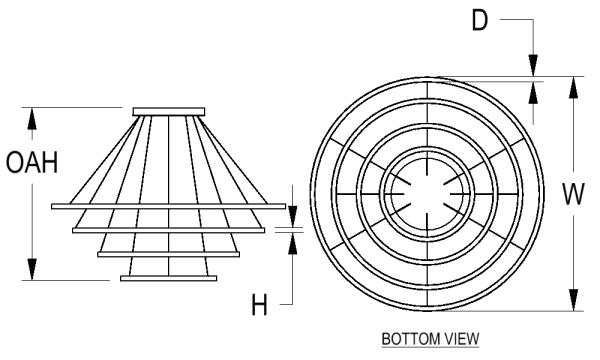

Dimensions
W
58.6 in
148.8 cm
H
1.2 in
3 cm
D
1.2 in
3 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Published luminaire wattages are for fixtures with power cord or "zero length" energized cables. When choosing energized cables, fixture wattages increase 6W per foot of OAH for low output and 15W per foot of OAH for high output. Voltage drop in energized cables reduces fixture efficacy; minimize OAH or choose an aircraft cable and power cord mounting to maximize efficacy. Alternative wattages available upon request.

L152W | White 152W LED Light Engine

Delivered Lumens: 9,004

L284W | White 284W LED Light Engine

Delivered Lumens: 16,823

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 152.0 - Max 284.0
LU   Min 8998 - Max 16813

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Canopy dimensions may change.

Mounting *

MCE max distance to the driver (including OAH) is 15' for low output and 7' for high output. MCP max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory. Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). Luminaire shown above features MCE mounting. For straight cable options, see catalogs AIP12094, AIP12095, AIP12096, and AIP12097. Please choose one:

MCE 2 | 18" Monopoint Canopy with Power Supply & Energized Cables
MCP 2 | 18" Monopoint Canopy with Power Supply & Aircraft Cables with 4 White Power Cords

2 Minimum adjustable cable length of each tier is half the diameter of the ring

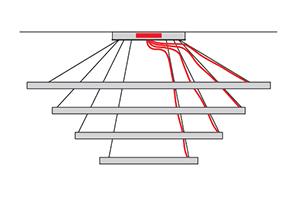

MCE

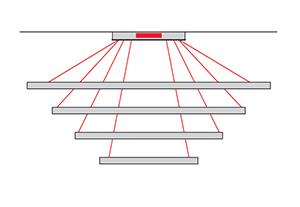

MCP

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Optical Distribution *

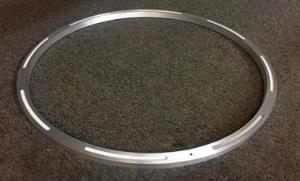

Choose DID option for 80% down/20% up distribution on the largest ring. Uplight slits with a matte opal diffuser added to top of housing, as shown below.

DF_DIR | Direct
DID 3 | Direct / Indirect

3 Apply .92 multiplier to largest ring for delivered lumens
DID

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next
