AIP12177 96 in

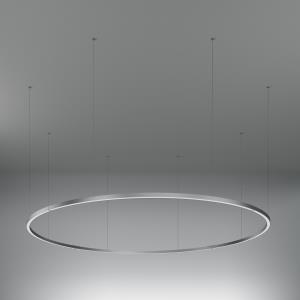

Zynn Ring 6', 8', 10' - Pendant
With a cross-section of just 1.25”, Zynn Ring is a minimalist masterpiece. This large diameter ring presents a dramatic scale while maintaining an exceptionally clean appearance. Characterized by a refined fit and finish, Zynn Ring is a favorite for today’s architects and designers. Energized cables give it a sophisticated weightless presence. Zynn Ring pendants are available in 2’ to 10’ diameter pendants and are seamless up to 5’. Other sizes available per project request.
Zynn Ring 6

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • One of the slimmest profiles on the market
  • Segmented for easy transportation and installation
  • Sections securely connect with flat joining plates
  • Matte opal acrylic diffuser sits slightly regressed (.03") from bottom edge of fixture
  • Smooth light with zero pixelation
  • Go cordless with energized cables
  • Available in direct or semi-direct distributions
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: Up to 59 lm/W delivered with power cord
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class II power supply. Max distance to the driver is 15' (includes OAH). For extended distances, contact factory.
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion. Four segments connected with butt joints; visible seams on body and lens.
  • FINISH: Housing and canopy finished to match (except button canopy). To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other sizes or alternate mountings
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in dry locations with use of energized cables or damp locations with use of power cord; not suitable for exterior applications

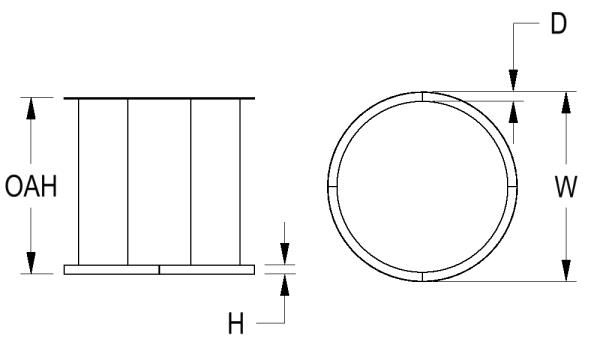

DIMENSIONS

Dimensions
W
96 in
243.8 cm
H
1.2 in
3 cm
D
1.2 in
3 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 20 lb (10 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Published luminaire wattages are for fixtures with power cord or "zero length" energized cables. When choosing energized cables, fixture wattages increase 0.2W per foot of OAH for low output and 0.5W per foot of OAH for high output. Voltage drop in energized cables reduces fixture efficacy; minimize OAH or choose an aircraft cable and power cord mounting to maximize efficacy. Alternative wattages available upon request.

L88W | White 88W LED Light Engine

Delivered Lumens: 5,213

L160W | White 160W LED Light Engine

Delivered Lumens: 9,478


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

BCP mounts to standard 4" octagonal junction box. BCP option includes standalone (independent of ceiling couplers) junction box cover. BCE option uses ceiling coupler (with cable gripper) to mount to electrically non-conductive structure above. Coupler mounts to ceiling using a 3/8" through hole with a maximum structure thickness of 1.25". Excess cable exits ceiling coupler above structure to be connected to Class II power lead (BCE). Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). Luminaire shown above features BCE mounting. Please choose one:

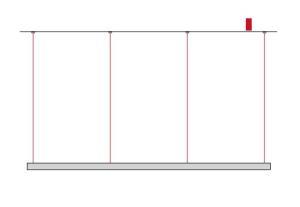

BCE 3 | 8 Straight Energized Cables with 7/8” Button Canopies, Remote Supply

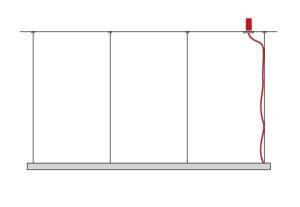

BCP 3 | 8 Straight Aircraft Cables with 7/8” Button Canopies and 4 White Power Cords with 5” Flat Canopies, Remote Supply

3 Button canopy finished as machined aluminum and not painted to match housing
BCE
BCP

Optical Distribution *

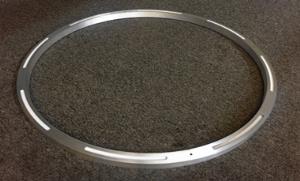

Choose DID option for 80% down/20% up distribution. Uplight slits with a matte opal diffuser added to top of housing, as shown below.

DF_DIR | Direct
DID 4 | Direct / Indirect

4 Apply .83 multiplier for delivered lumens
DID

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
