Zynn 2" Ring
The art of functional minimalism
Zynn 2" Ring
The art of functional minimalism
Zynn 2" Ring
The art of functional minimalism
AIP12209 122 in

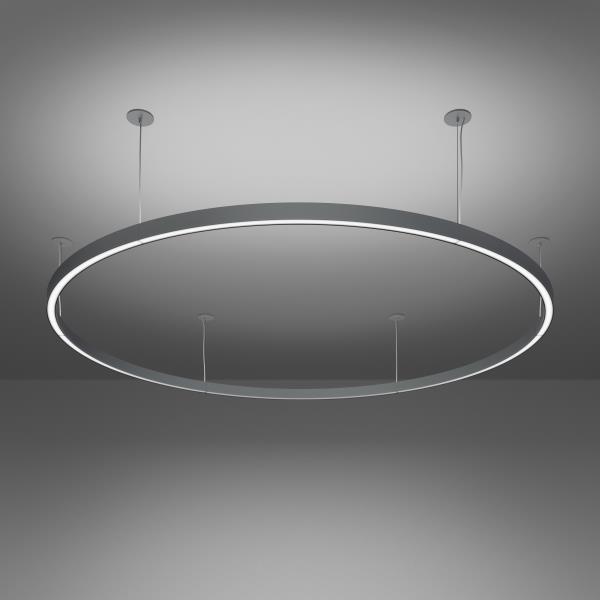

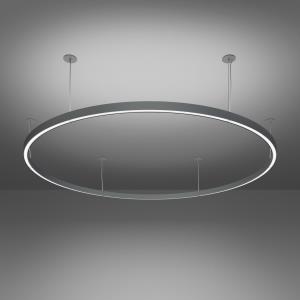

Zynn 2" Ring - Pendant
Zynn 2” Ring is the complete tool kit for lighting professionals. This is the line to specify when you need aesthetics you can count on, a wide range of scales, and the performance capabilities to light a space effectively and comfortably. Both the uplight and the downlight components of this luminaire are available in three output options – giving you the ability to select the combination of light that’s best suited for your environment. Handcrafted with incredible attention to detail, the luminaire exhibits the exceptional refinement that matters to you. The Zynn 2” Ring family is offered in every size needed to fit your application, from 2’ to 16’ in diameter.
Zynn 2" Ring - Pendant AIP12209

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2” x 3” profile
  • Create a well-balanced combination of indirect and direct light to increase visual comfort and improve light uniformity
  • Control up and down components independently
  • Segmented for easy transportation and installation
  • Clean, continuous lines of light with zero pixelation
  • Superior fit and finish
  • Keep ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct/Indirect
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: Up to 115 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • MAX AMBIENT OPERATING TEMP: 42°C (108°F)
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic (bottom). Frosted clear acrylic (top).
  • CONSTRUCTION: 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

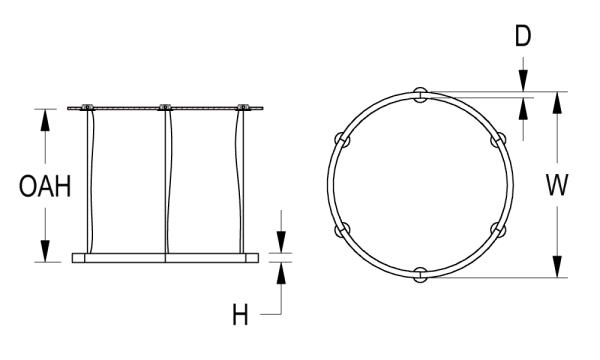

DIMENSIONS

Dimensions
W
122 in
309.9 cm
H
3 in
7.6 cm
D
2 in
5.1 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 60 lb (28 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:

DIR-L106W | White 106W LED Light Engine

Delivered Lumens: 7,621

DIR-L212W | White 212W LED Light Engine

Delivered Lumens: 15,243

DIR-L424W | White 424W LED Light Engine

Delivered Lumens: 30,486


Light Source 2 *

Choose an INDIRECT light source below:

IND-L106W | White 106W LED Light Engine (Delivered Lumens: 13,345)

IND-L212W | White 212W LED Light Engine (Delivered Lumens: 26,691)

IND-L424W | White 424W LED Light Engine (Delivered Lumens: 53,382)


Voltage *

120-277V | Universal Voltage

Lamp Options *

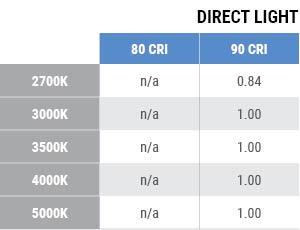

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH).

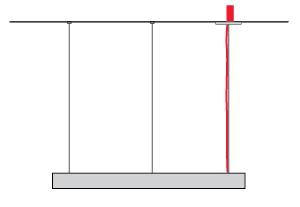

SRA | 5” Flat Canopies & 6 Straight Aircraft Cables with 6 White Power Cords, Remote Supply

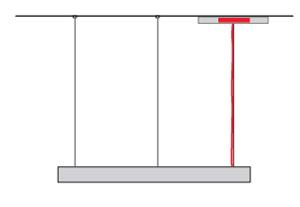

SCA | 12” Canopies with Power Supplies & 6 Straight Aircraft Cables with 6 White Power Cords

SRA
SCA

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
