Start building your product.
Specify your options and generate a personalized spec sheet.
FEATURES & BENEFITS
- Sleek 2” x 3” profile
- Create a well-balanced combination of indirect and direct light to increase visual comfort and improve light uniformity
- Control up and down components independently
- Segmented for easy transportation and installation
- Clean, continuous lines of light with zero pixelation
- Superior fit and finish
- Keep ceilings clean with minimal mounting hardware
- Hidden internal aircraft cable grippers are easy to adjust
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- DISTRIBUTION: Indirect/Direct
- CRI: 80+ or 90+
- LUMEN MAINTENANCE: L80 = >60,000 Hrs.
- EFFICACY: Up to 115 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
- MAX AMBIENT OPERATING TEMP: 42°C (108°F)
- DIMMING: 1% minimum dim level standard
- CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- DIFFUSER: Matte opal acrylic (bottom). Frosted clear acrylic (top).
- CONSTRUCTION: 6000 series aluminum extrusion
- FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 95 lb (44 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:
DIR-L169W | White 169W LED Light Engine
Delivered Lumens: 12,151
DIR-L339W | White 339W LED Light Engine
Delivered Lumens: 24,374
DIR-L678W | White 678W LED Light Engine
Delivered Lumens: 48,748
Light Source 2 *
Choose an INDIRECT light source below:
Lamp Options *

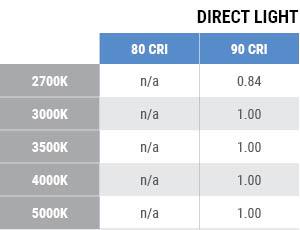

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.
Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.
1 Not available with SCA mounting option.

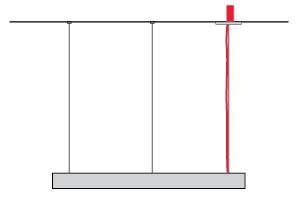

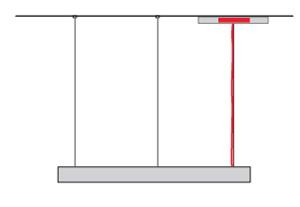

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH).
Other Than Standard Options

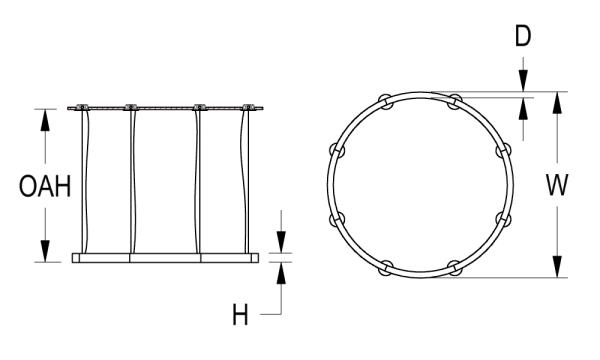

Specify overall height required from ceiling to the bottom of the fixture. The minimum OAH is half the diameter of the drum plus the diffuser height.
| Pendant suspension length other than standard
