AIP12212 26.00 in

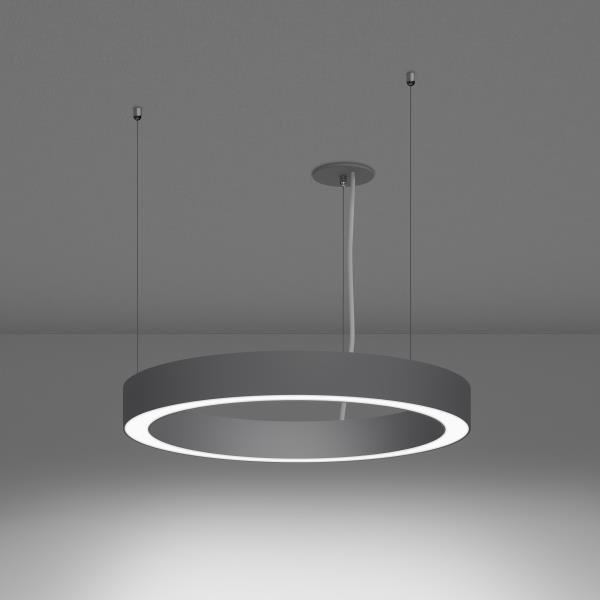

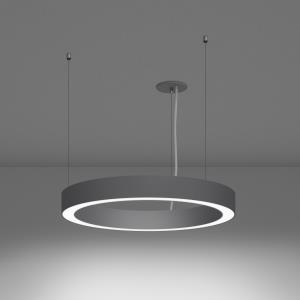

Zynn 2" Ring - Pendant
Zynn 2” Ring is the complete tool kit for lighting professionals. This is the line to specify when you need aesthetics you can count on, a wide range of scales, and the performance capabilities to light a space effectively and comfortably.
Zynn 2" Ring - Pendant AIP12212

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2” x 3” profile
  • Seamless housing finished to your specification
  • Clean, continuous lines of light with zero pixelation
  • Superior fit and finish
  • Keep ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Integral power supply for easier installation
  • Only one power drop
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 72 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • MAX AMBIENT OPERATING TEMP: 32°C (90°F)
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena and Current NX optional. Contact factory for other controls (e.g., nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Seamless matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

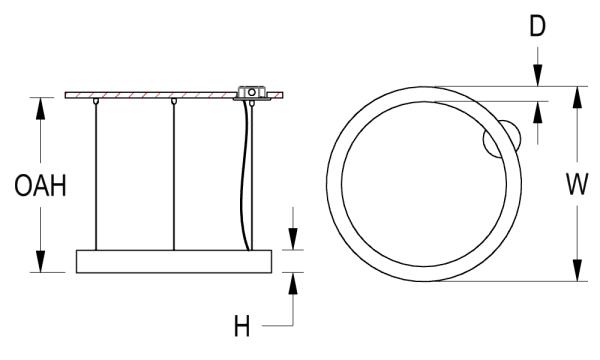

DIMENSIONS

Dimensions
W
26 in
66 cm
H
3 in
7.6 cm
D
2 in
5.1 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:

DIR-L21W | White 21W LED Light Engine

Delivered Lumens: 1,510

DIR-L42W | White 42W LED Light Engine

Delivered Lumens: 3,020

DIR-L85W | White 85W LED Light Engine

Delivered Lumens: 6,112


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as nLight, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming

1 Canopy dimensions may change.

Mounting *

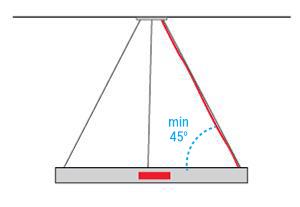

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). For SIA mounting, the aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. Cables must be at least 45° to the fixture.

SIA | 5” Flat Canopy & 3 Straight Aircraft Cables with White Power Cord; Integral Supply
MIA | 6” Flat Monopoint Canopy & 3 Aircraft Cables with White Power Cord; Integral Supply

SIA
MIA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. The minimum OAH is half the diameter of the drum plus the diffuser height.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
