AIP12226 98.00 in

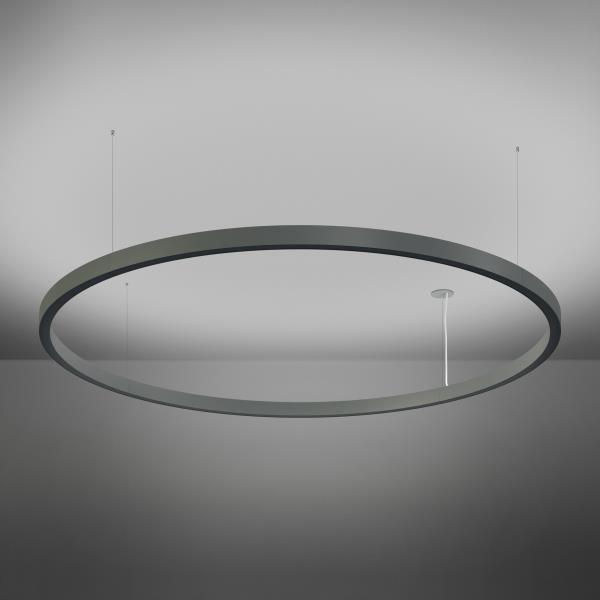

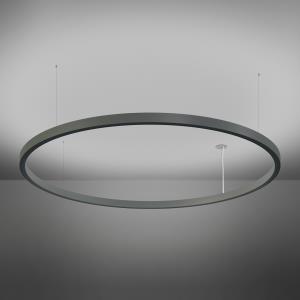

Zynn 2" Ring - Pendant
Zynn 2” Ring is the complete tool kit for lighting professionals. This is the line to specify when you need aesthetics you can count on, a wide range of scales, and the performance capabilities to light a space effectively and comfortably.
Zynn 2" Ring - Pendant AIP12226

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2” x 3” profile
  • Increase visual comfort, eliminate source brightness, and improve light uniformity with indirect lighting
  • Get tight to the ceiling with the Close-Mount Indirect Batwing option
  • Segmented for easy transportation and installation
  • Clean, continuous lines of light with zero pixelation
  • Coveted fit and finish
  • Hidden internal aircraft cable grippers are easy to adjust
  • Integral power supply for easier installation
  • Only one power drop
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Indirect
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 126 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • MAX AMBIENT OPERATING TEMP: 32°C (90°F)
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Frosted clear acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

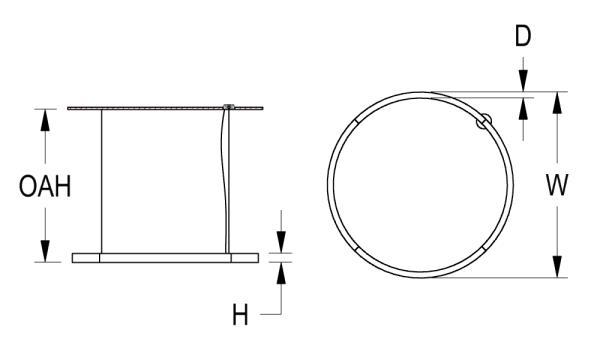

DIMENSIONS

Dimensions
W
98 in
248.9 cm
H
3 in
7.6 cm
D
2 in
5.1 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose an INDIRECT light source below:

IND-L85W | White 85W LED Light Engine

Delivered Lumens: 10,702

IND-L169W | White 169W LED Light Engine

Delivered Lumens: 21,277

IND-L339W | White 339W LED Light Engine

Delivered Lumens: 42,680


Indirect Distribution *

Choose the optical distributing for the indirect portion of the ring:

DF_SME | Symmetric (default)
BW 1 | Batwing


1 Delivered lumens are 90% of the output shown under Light Source 2.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as nLight, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 2 | Lutron Athena Wireless Node, 1% Dimming
NX 3 | Current NX Wireless, 1% Dimming

2 Canopy dimensions may change..   Not available with L169W or L339W light source.
3 Canopy dimensions may change.

Mounting *

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting.

SIA | 5” Flat Canopy & 4 Straight Aircraft Cables with White Power Cord; Integral Supply

SIA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
