Novato 2" Lines + Arcs
Unleash your creativity
AIP12235 2 in

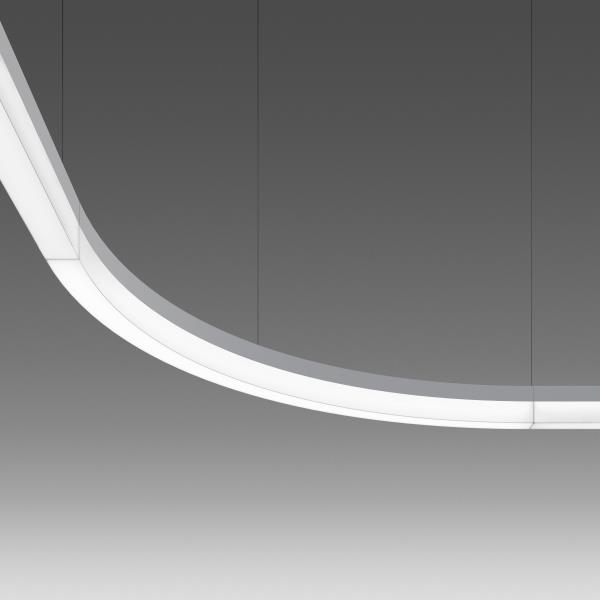

Novato 2" Lines + Arcs
This revolutionary modular system of luminous lines empowers you to create an infinite array of designs with ease, using all standard products. Get creative with crisp linear runs, precise angles, flowing curves, and sweeping elevation changes. There’s no limit to what you can design with these architectural building blocks of light. Impeccably designed with continuous illumination, Novato 2” Lines + Arcs exhibits clean lines with no breaks in the light. Luminous on three sides, it adds dimension by broadening the distribution of light. Plus, efficacy surpasses 100 lumens per watt! For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Novato 2" Lines + Arcs AIP12235

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Slim 2”x2” line of light
  • Three-sided luminous form brightens horizontal and vertical planes
  • 70% direct/30% indirect distribution
  • Up to 1,135 lm/ft
  • Provides functional lighting with comfortable luminance levels
  • Ideal for separating open offices, providing wayfinding, or adding markings
  • Up to 550' of continuous light with just one power drop
  • Maneuvers easily around obstructions
  • Easy daisy chain wiring simplifies installation
  • Hidden internal aircraft cable grippers are easy to adjust
  • Luminous Lines (AIP12234), Elevation Changes (AIP12236), and Connectors (AIP12237) are ordered separately
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >36,000 Hrs.
  • EFFICACY: 106 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run; see catalog CPS12238 to order. Connect power drops anywhere along the run.
  • MAX AMBIENT OPERATING TEMP: 34.5°C (94°F)
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena and Current NX optional. Contact factory for other controls (e.g., nLight AIR, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • EMERGENCY: Contact factory for remote options
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate configurations
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

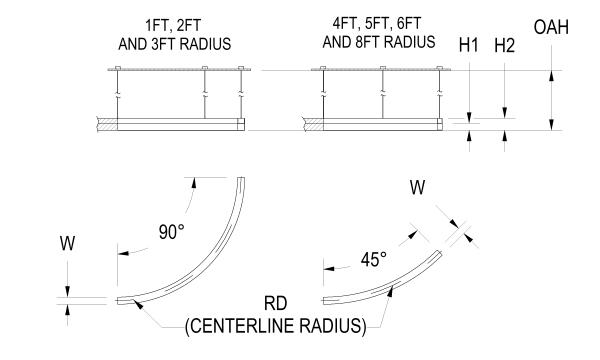

DIMENSIONS

Dimensions
1FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
12 in
30.5 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
24 in
61 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
36 in
91.4 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
48 in
121.9 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
5FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
60 in
152.4 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 10 lb (5 kg)
6FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
72 in
182.9 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 10 lb (5 kg)
8FT
W
2 in
5.1 cm
OAH
48 in
121.9 cm
RD
96 in
243.8 cm
H1
2 in
5.1 cm
H2
3.5 in
8.9 cm
Mounting Weight: Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

1 FOOT RADIUS 90° FIXTURE
1FT-L8W | White 8W LED Light Engine

Delivered Lumens: 854

1FT-L15W | White 15W LED Light Engine

Delivered Lumens: 1,602

2 FOOT RADIUS 90° FIXTURE
2FT-L15W | White 15W LED Light Engine

Delivered Lumens: 1,602

2FT-L30W | White 30W LED Light Engine

Delivered Lumens: 3,204

3 FOOT RADIUS 90° FIXTURE
3FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,563

3FT-L48W | White 48W LED Light Engine

Delivered Lumens: 5,126

4 FOOT RADIUS 45° FIXTURE
4FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,709

4FT-L32W | White 32W LED Light Engine

Delivered Lumens: 3,418

5 FOOT RADIUS 45° FIXTURE
5FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,136

5FT-L40W | White 40W LED Light Engine

Delivered Lumens: 4,272

6 FOOT RADIUS 45° FIXTURE
6FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,563

6FT-L48W | White 48W LED Light Engine

Delivered Lumens: 5,126

8 FOOT RADIUS 45° FIXTURE
8FT-L32W | White 32W LED Light Engine

Delivered Lumens: 3,418

8FT-L64W | White 64W LED Light Engine

Delivered Lumens: 6,835


Voltage *

120-277V | Universal Voltage

Lamp Options *

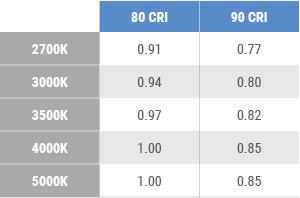

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as nLight AIR, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming

1 Contact factory for complimentary layout including controls package.

Mounting *

For mounting center information, go to https://www.spilighting.com/AIP12235 > Downloads > Install Sheets. Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to the power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation, the contractor is responsible for using the actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

DF_AC | Aircraft Cable (default)

Emergency

EMR is provided with a remote 10W, constant power battery back-up, for 90 Minutes of emergency operation, in a damp listed enclosure. EMC option if for direct connection to alternate emergency circuit (EM power By Others). All EM options in common section are provided with pass through wiring for normal power circuit within the configuration.

EMC | Emergency Circuit
EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH

Configuration *

Standalone pendants have two finished ends and include a power drop kit with a canopy that's finished to match the housing. Start/End units feature one joiner end and one finished end. Common units feature two joiner ends. Start/End and Common sections do not come with a power drop; see CPS12238 to order separately. Contact the factory for help determining how many drops your layout requires.

COM | Common
SAP | Standalone Pendant

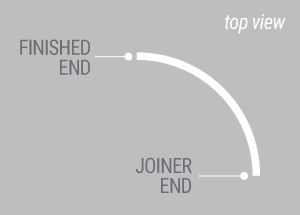

S/EL | Start/End Left

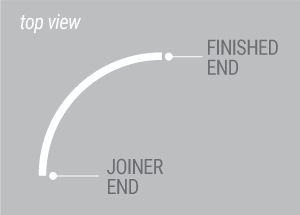

S/ER | Start/End Right

S/EL
S/ER
