Anything is possible with this creative modular system of luminous lines. Zynn 2” Lines + Arcs makes it fast and easy for you to create extraordinary curvilinear and rectilinear designs – all with standard products. Turn corners, sweep around columns, create geometric shapes, or form intricate patterns with smooth, continuous lines of light. Professional and refined, the system delivers up to 960 lumens per foot. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

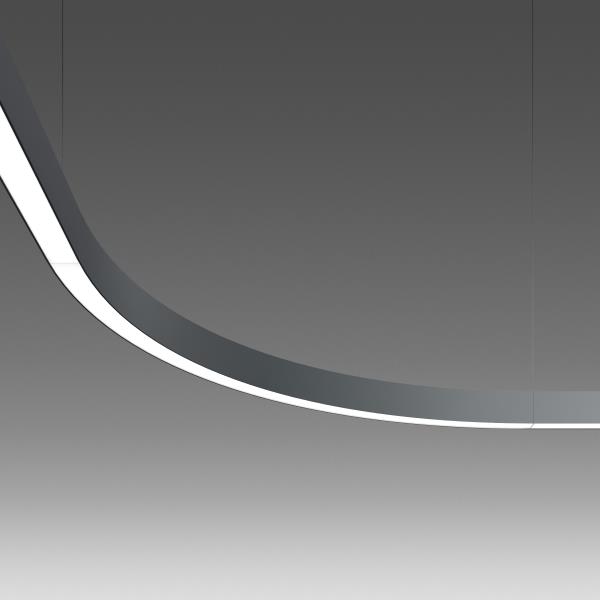

Zynn 2" Lines + Arcs AIP12256

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2" x 3" profile
  • Clean, continuous lines of light with zero pixilation
  • Up to 960 lm/ft
  • Provides functional lighting with comfortable luminance levels and is ideal for separating open offices, providing wayfinding, or adding markings
  • The system can go up to 500' with just one power drop
  • Maneuvers easily around obstructions
  • Superior fit and finish
  • Keeps ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Integral power supplies with easy daisy chain wiring simplifies installation
  • Lines (AIP12255) and Connectors (AIP12257) are ordered separately
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE: L80 = >54,000 Hrs.
  • EFFICACY: Up to 72 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run; see catalog CPS12267 to order. Connect power drops anywhere along the run.
  • MAX AMBIENT OPERATING TEMP: 32°C (90°F)
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • EMERGENCY: Contact factory for remote options
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including custom radii
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

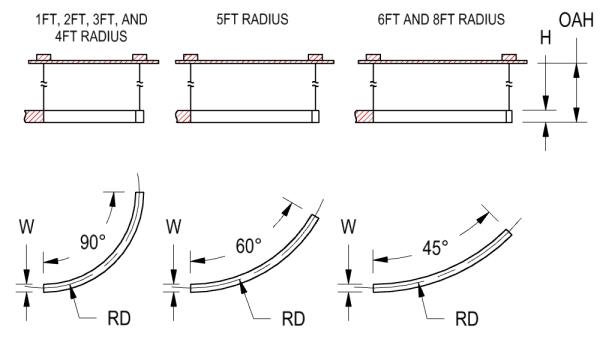

Dimensions
1FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
12 in
30.5 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
24 in
61 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
36 in
91.4 cm
Mounting Weight: Approximate: 10 lb (5 kg)
4FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
48 in
121.9 cm
Mounting Weight: Approximate: 15 lb (7 kg)
5FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
60 in
152.4 cm
Mounting Weight: Approximate: 10 lb (5 kg)
6FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
72 in
182.9 cm
Mounting Weight: Approximate: 15 lb (7 kg)
8FT
W
2 in
5.1 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
RD
96 in
243.8 cm
Mounting Weight: Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

1 FOOT RADIUS 90° FIXTURE
1FT-L11W | White 11W LED Light Engine

Delivered Lumens: 791

1FT-L21W | White 21W LED Light Engine

Delivered Lumens: 1,510

2 FOOT RADIUS 90° FIXTURE
2FT-L21W | White 21W LED Light Engine

Delivered Lumens: 1,510

2FT-L42W | White 42W LED Light Engine

Delivered Lumens: 3,020

3 FOOT RADIUS 90° FIXTURE
3FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,301

3FT-L64W | White 64W LED Light Engine

Delivered Lumens: 4,602

4 FOOT RADIUS 90° FIXTURE
4FT-L42W | White 42W LED Light Engine

Delivered Lumens: 3,020

4FT-L85W | White 85W LED Light Engine

Delivered Lumens: 6,112

5 FOOT RADIUS 60° FIXTURE
5FT-L35W | White 35W LED Light Engine

Delivered Lumens: 2,517

5FT-L71W | White 71W LED Light Engine

Delivered Lumens: 5,105

6 FOOT RADIUS 45° FIXTURE
6FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,301

6FT-L64W | White 64W LED Light Engine

Delivered Lumens: 4,602

8 FOOT RADIUS 45° FIXTURE
8FT-L42W | White 42W LED Light Engine

Delivered Lumens: 3,020

8FT-L85W | White 85W LED Light Engine

Delivered Lumens: 6,112


Voltage *

120-277V | Universal Voltage

Lamp Options *

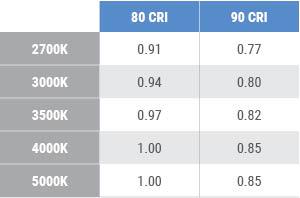

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

For mounting center information, go to https://www.spilighting.com/AIP12256 > Downloads > Install Sheets. Power drop canopy mounts to standard 4” octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to the power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation, the contractor is responsible for using the actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

DF_AC | Aircraft Cable (default)

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH

Configuration *

Start/End units feature one joiner end and one finished end. Common units feature two joiner ends. Start/End and Common sections do not come with a power drop; see CPS12267 to order separately. Contact the factory for help determining how many drops your layout requires.

COM 3 | Common

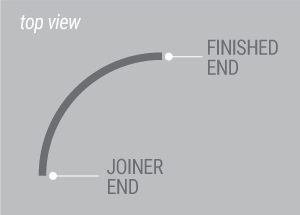

S/EL 3 | Start/End Left

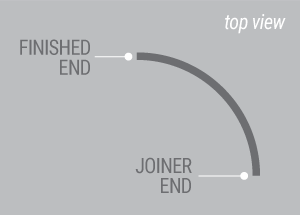

S/ER 3 | Start/End Right
S/EL
S/ER

3 Excludes power drop kit; see catalog ID CPS12267 to order
