Zynn 1.5" Ring
Zynn 1.5" Ring
Zynn 1.5" Ring
AIP12369 25.30 in

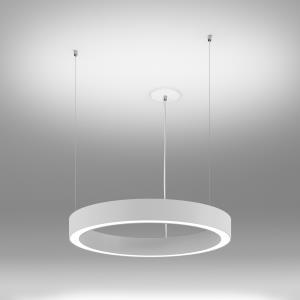

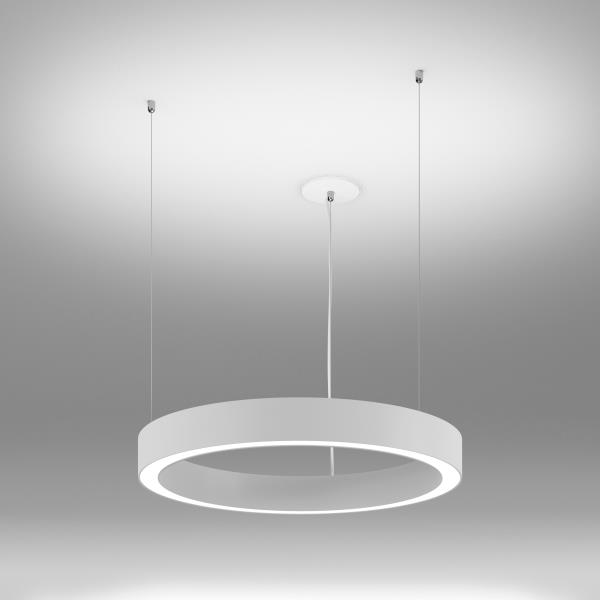

Zynn 1.5" Ring
This direct/indirect version of Zynn 1.5” Ring keeps it simple and budget-friendly with clean lines, reliable performance up to 77 lm/W, and the exceptional quality you expect from SPI Lighting. Designed to maximize visual comfort and provide optimum control, Zynn 1.5” Ring uses separate light sources for up and down light to give you the control flexibility your design needs. Available in a practical range of sizes, from 2’ to 5' in diameter.
Zynn 1.5" Ring AIP12369

Start building your product.

Specify your options and generate a personalized spec sheet.


  • Sleek 1.6” x 3” cross-section
  • Increase visual comfort and improve light uniformity with a well-balanced combination of direct/indirect light
  • Control up and down components independently
  • Seamless housing and bottom lens
  • Clean, continuous lines of light with zero pixelation
  • Superior fit and finish
  • Keep ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers add refinement and eliminate a common visual distraction
  • Conveniently adjust the length of the aircraft cables at the fixture instead of the ceiling
  • Handcrafted in USA


  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct/Indirect
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: Up to 77 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic (bottom lens); frosted clear acrylic or matte opal acrylic (top lens)
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications


25.3 in
64.3 cm
3 in
7.6 cm
1.6 in
4.1 cm
54 in
137.2 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.


Job Name:


To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:

DIR-L27W | White 27W LED Light Engine

Delivered Lumens: 1,758
DIR-L54W | White 54W LED Light Engine

Delivered Lumens: 3,515

Light Source 2 *

Choose an INDIRECT light source below:

IND-L27W | White 27W LED Light Engine (Delivered Lumens: 2,392)
IND-L54W | White 54W LED Light Engine (Delivered Lumens: 4,784)

Voltage *

120-277V | Universal Voltage

Lamp Options *

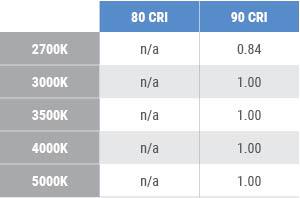

Apply multiplier from chart below for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT


DF_80 | (default)

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Mounting *

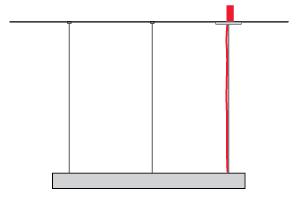

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). Contact factory for power supply in canopy options.

SRA | 5" Flat Canopy & 3 Straight Aircraft Cables with White Power Cord, Remote Drivers
MRA 1 | 6" Flat Monopoint Canopy & 3 Aircraft Cables with White Power Cord, Remote Drivers

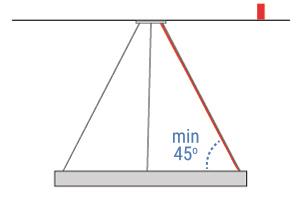

1 The minimum adjustable cable length is half the diameter of the ring. Cables must be at least 45° to the fixture.

Top Lens *

The frosted clear top lens maximizes transmission of indirect light, but the LEDs are visible. Choose the matte opal option for applications where the top of the fixture is within view.

DF_FC | Frosted Clear Acrylic (default)
MA01 2 | Matte Opal Acrylic

2 Delivered lumens are 73% of the output shown under Light Source 2; see separate IES file


10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
For Tunable White or RGBW, see Driver section for any exceptions.
