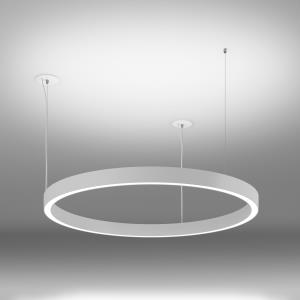

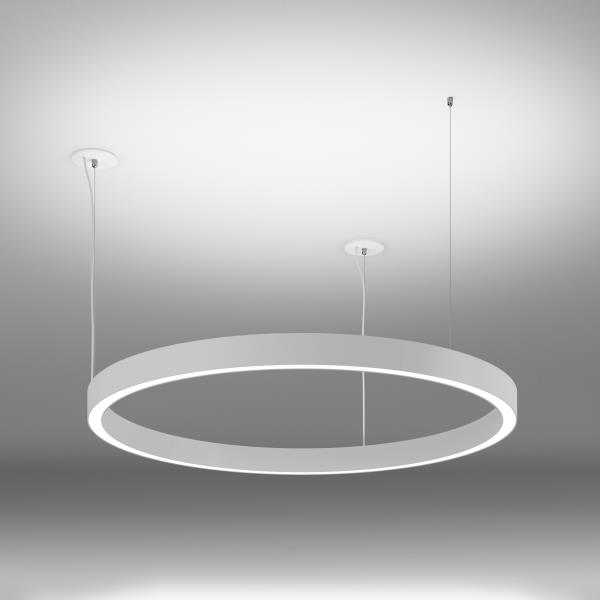

FEATURES & BENEFITS

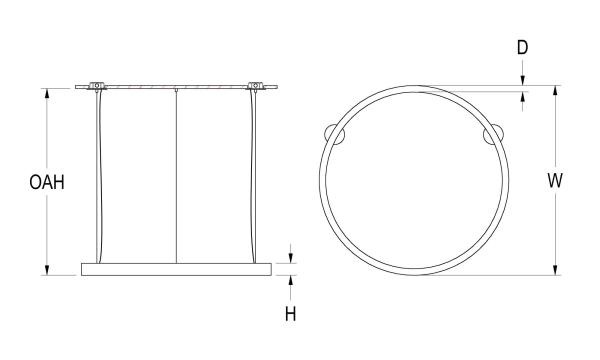

- Sleek 1.6” x 3” cross-section
- Increase visual comfort and improve light uniformity with a well-balanced combination of direct/indirect light
- Control up and down components independently
- Seamless housing and bottom lens
- Clean, continuous lines of light with zero pixelation
- Superior fit and finish
- Keep ceilings clean with minimal mounting hardware
- Hidden internal aircraft cable grippers add refinement and eliminate a common visual distraction
- Conveniently adjust the length of the aircraft cables at the fixture instead of the ceiling
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- DISTRIBUTION: Direct/Indirect
- CRI: 80+ or 90+
- LUMEN MAINTENANCE: L80 = >60,000 Hrs.
- EFFICACY: Up to 77 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
- MAX AMBIENT OPERATING TEMP: 42°C (108°F)
- DIMMING: 1% minimum dim level standard
- CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- DIFFUSER: Matte opal acrylic (bottom lens), frosted clear acrylic or matte opal acrylic (top lens)
- CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
- FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED
lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:
DIR-L54W | White 54W LED Light Engine
Delivered Lumens: 3,515
DIR-L109W | White 109W LED Light Engine
Delivered Lumens: 7,096
Light Source 2 *
Choose an INDIRECT light source below:
Lamp Options *
Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.
Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

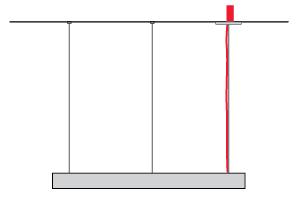

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). Contact factory for power supply in canopy options.

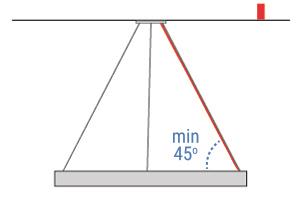

1 The minimum adjustable cable length is half the diameter of the ring. Cables must be at least 45° to the fixture.
Top Lens *
The frosted clear top lens maximizes transmission of indirect light, but the LEDs are visible. Choose the matte opal option for applications where the top of the fixture is within view.
2 Delivered lumens are 73% of the output shown under Light Source 2; see separate IES file
Other Than Standard Options
Specify overall height required from ceiling to the bottom of the fixture.
| Pendant suspension length other than standard For Tunable White or RGBW, see Driver section for any exceptions.
