Start building your product.
Specify your options and generate a personalized spec sheet.
FEATURES & BENEFITS
- Opal acrylic diffuser lens enhances a space with filtered illumination.
- Spun metal trim ring adds high-quality, decorative element to fixture.
- Wall mount family fixtures available to carry a consistent lighting design throughout a space.
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine or incandescent
- CRI: 80+ (contact factory for 90+)
- Lumen Maintenance: L70 = >50,000 Hrs.
- CCT: Available LED color temperatures: 3000K, 3500K, or 4000K
- DRIVER: LED versions feature integral Class 2 power supply standard
- DIMMING: 0-10V controls standard to 10% on LED light engines
- EMERGENCY: Emergency battery remote optional
- DIFFUSER: Opal acrylic is standard; matte acrylic and hand painted lenses optional. Any upward facing LEDs will be covered with a protective lens.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 50 lb (23 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.
L57W | White 57W LED Light Engine
Delivered Lumens: 4,051
L115W | White 115W LED Light Engine
Delivered Lumens: 8,102
1 Incandescent Lamp(s) Not Included
2 For incandescent light source only
Lamp Options *
Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.
3 Apply .95 multiplier for delivered lumens
4 Apply .97 multiplier for delivered lumens
Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Additional support required (by others).
Other Than Standard Options

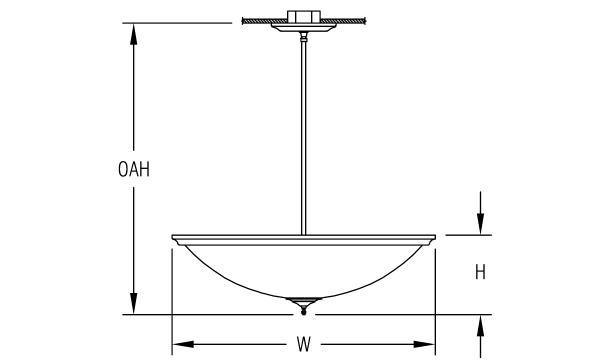

Specify overall height required from ceiling to the bottom of the fixture.
| Pendant suspension length other than standard
