Zynn Ring - Surface Mount
With a cross-section of just 1.25”, Zynn Ring is a minimalist masterpiece. Its best-in-market construction features a hand-fabricated seamless aluminum housing and seamless diffuser which give the luminaire its exceptionally clean appearance. Characterized by a refined fit and finish, Zynn Ring is a favorite for today’s architects and designers. Available in 1’ to 5’ diameters.
Zynn Ring - Surface Mount AIS12192

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • One of the slimmest profiles on the market
  • Seamless aluminum housing with no visible fasteners
  • Seamless matte opal acrylic diffuser sits slightly regressed (.03") from bottom edge of fixture
  • Smooth light with zero pixelation
  • Mounts on ceiling or wall
  • Choose a direct surface mount or a standoff option to overlap rings easily
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 59 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class 2 power supply. Max distance to the driver is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

Dimensions
W
58.6 in
148.8 cm
H
1.2 in
3 cm
D
1.2 in
3 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L27W | White 27W LED Light Engine

Delivered Lumens: 1,599

L54W | White 54W LED Light Engine

Delivered Lumens: 3,199

L103W | White 103W LED Light Engine

Delivered Lumens: 6,102

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 27.0 - Max 103.0
LU   Min 1598 - Max 6098

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Mounting *

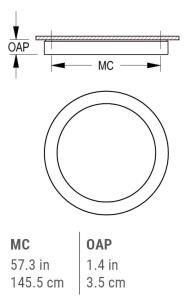

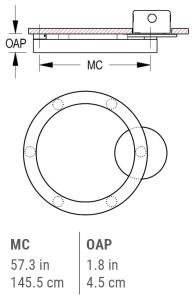

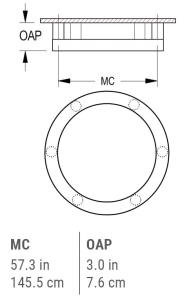

MCS mounting features a robust 1.75" standoff, with 6 mounting points, suitable for public spaces and is supplied with 8' lead length and 2.25" round goof plates. SFC mounting features a surface mounting plate and is supplied with 8’ lead length. SJB mounting features a 5” round j-box cover combined with (5) 0.5” standoffs. To overlap adjacent rings, alternate between SFC and MCS mountings. Contact factory for alternate standoff heights.

MCS | 1.75" Standoff Mount
SFC | Surface Mount
SJB | Surface Mount with 5" Round J-Box Cover

MCS
SFC
SJB

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Request a modification
prev
close
next

Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
Fox Architects | Photographer: Mike Caine, SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
image 1 of 10

Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
Fox Architects | Photographer: Mike Caine, SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
image 2 of 10

Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
Fox Architects | Photographer: Mike Caine, SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring - InSinkErator Headquarters, A Division of Emerson Electric Co.
image 3 of 10

Zynn Ring Surface Mount - Wall Concept
Mike Caine | SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring Surface Mount - Wall Concept
image 4 of 10

Zynn Ring Surface Mount - Ceiling Concept
Mike Caine | SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring Surface Mount - Ceiling Concept
image 5 of 10

Zynn Ring - Surface Mount (standoffs)
Mike Caine | SPI Lighting

<< BACK TO THUMBNAILS
Zynn Ring - Surface Mount (standoffs)
image 6 of 10

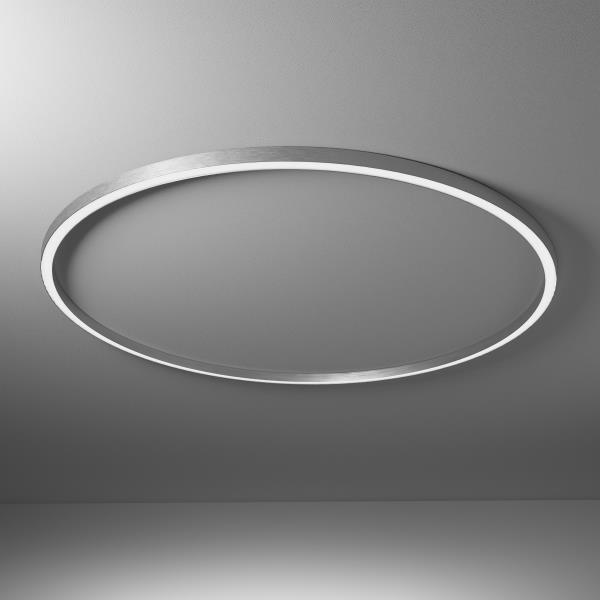

Zynn Ring Surface Mount
