Reo Surface Mount Decor
AIW10367 40 in

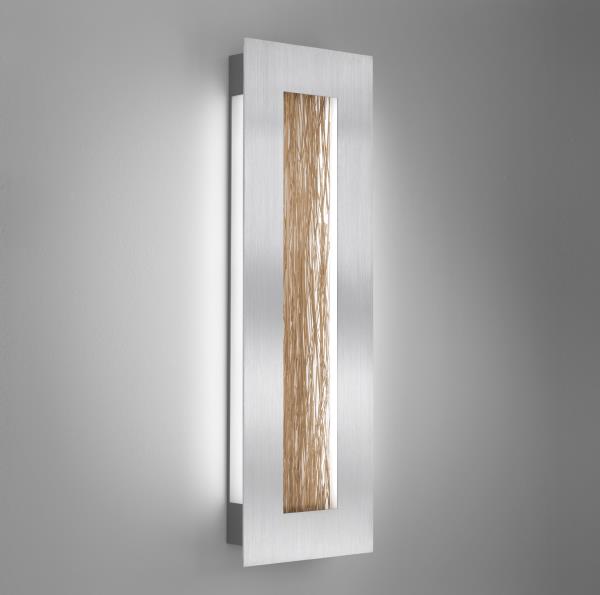

Reo Surface Mount Decor
Reo can be mounted to any wall surface and comply with ADA requirements while providing supplemental side illumination. Reo's unique light source orientation illuminates in front of and behind the decorative translucent panel, intensifying a 3D effect. The ability to complement any style comes standard.
Reo Surface Mount Decor AIW10367

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Add texture to a space with architectural panels (standard panels are available with other panels available upon request)
  • Optional durable wood laminate faceplate option adds a warm, natural texture to a space
  • Optional embossed stainless steel-linear and crosshatch face plate option adds a unique, metal accent and texture to a space
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from more than 30 thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to standard 4" octagonal junction box; additional mounting structure and hardware required (by others)
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

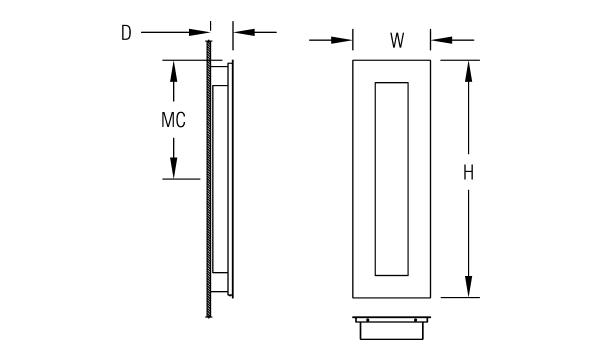

DIMENSIONS

Dimensions
W
13 in
33 cm
H
39.8 in
101.1 cm
D
3.7 in
9.4 cm
MC
19.5 in
49.5 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L36W | White 36W LED Light Engine

Delivered Lumens: 1,467

L72W | White 72W LED Light Engine

Delivered Lumens: 2,933


Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser *

Other styles available upon request. Contact factory to customize an architectural panel that coordinates with your application.

HP01 | Silver Hand Painted Acrylic Lens
HP02 | Beige Hand Painted Acrylic Lens
HP03 | Amber Hand Painted Acrylic Lens
TP01 | Translucent Panel, Bear Grass, Vertical

HP01
HP02
HP03
TP01

Faceplate Options

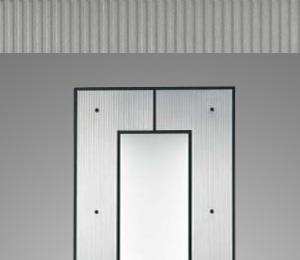

ES1 | Embossed Stainless Steel-Linear Pattern

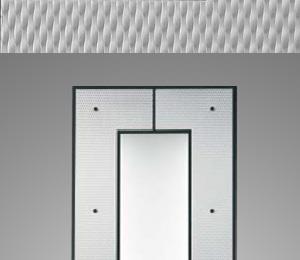

ES2 | Embossed Stainless Steel-Cross Hatch Pattern

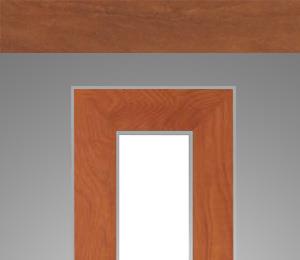

WF1 | Cherry Laminate

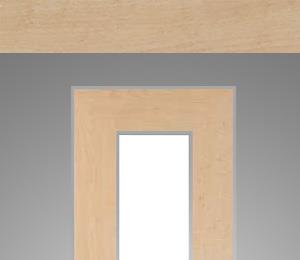

WF2 | Maple Laminate
ES1
ES2
WF1
WF2
