FEATURES & BENEFITS

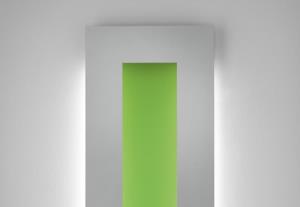

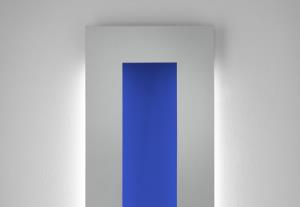

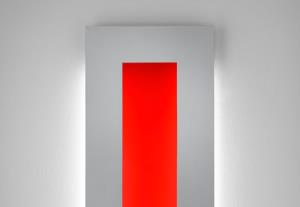

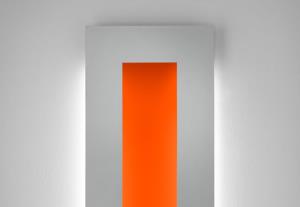

- Add a splash of color to a space with optional theatrical color gels (offered in five standard colors with custom colors available upon request)

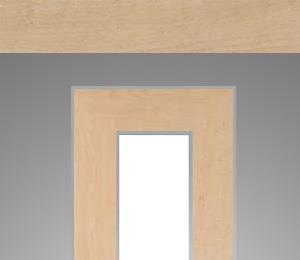

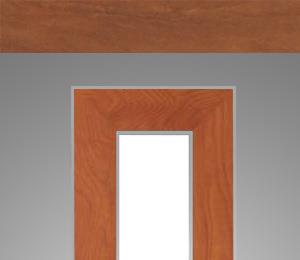

- Optional durable wood laminate faceplate option adds a warm, natural texture to a space

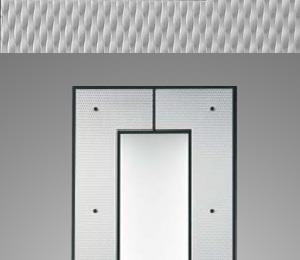

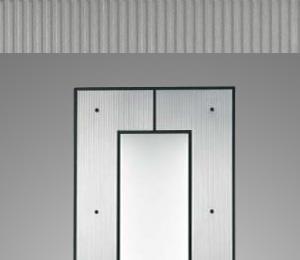

- Optional embossed stainless steel-linear and crosshatch face plate option adds a unique, metal accent and texture to a space
- Compliant with Americans with Disabilities Act (ADA) requirements
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- CCT: 3000K, 3500K, or 4000K
- DRIVER: Integral Class 2 power supply standard
- DIMMING: 0-10V controls standard to 1% on LED light engines
- EMERGENCY: Emergency battery remote optional
- CONSTRUCTION: Formed metal construction provides durable protection for internal components and is recyclable

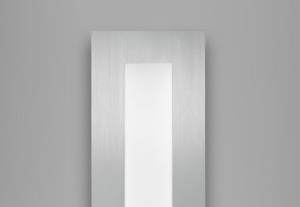

- FINISH: Faceplate and housing finished to match your specification (unless a faceplate option is specified). Choose from more than 30 thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
L36W | White 36W LED Light Engine
Delivered Lumens: 1,467
L72W | White 72W LED Light Engine
Delivered Lumens: 2,933
Lamp Options *
Delivered lumens shown are at 4000K CCT; apply multiplier for delivered
lumens at other CCT.
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens
Requires recessed mounting. Additional mounting structure and hardware required (by others).
Color Accents *
Contact factory to customize a color gel that coordinates with your application.
