Reo Full Recessed
AIW10376 39.80 in
Reo Full Recessed
Reo can be fully recessed, revealing only the faceplate. With a 1" wall projection, Reo easily satisfies ADA standards. Five optional color gels add a splash of color, serving as a guide or visual path. The ability to complement any style comes standard.
Reo Full Recessed AIW10376

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Add a splash of color to a space with optional theatrical color gels (offered in five standard colors with custom colors available upon request)
  • Optional durable wood laminate faceplate option adds a warm, natural texture to a space
  • Optional embossed stainless steel-linear and crosshatch face plate option adds a unique, metal accent and texture to a space
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Faceplate is finished to match your specification (unless a faceplate option is specified). Choose from 26 standard thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

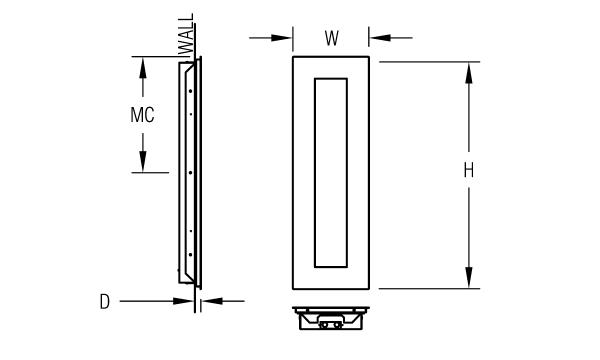

DIMENSIONS

Dimensions
W
13 in
33 cm
H
39.8 in
101.1 cm
D
1 in
2.5 cm
MC
19.5 in
49.5 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L36W | White 36W LED Light Engine

Delivered Lumens: 1,467

L72W | White 72W LED Light Engine

Delivered Lumens: 2,933


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Mounting *

Requires recessed mounting. Additional mounting structure and hardware required (by others).

DF_REC | Recessed Wall Mount (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Accents *

Contact factory to customize a color gel that coordinates with your application.

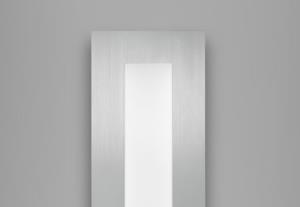

CG00 | White Color Gel

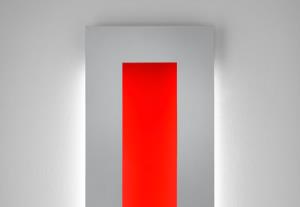

CG01 | Red Color Gel

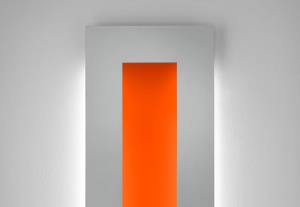

CG02 | Orange Color Gel

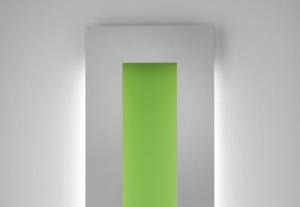

CG03 | Green Color Gel

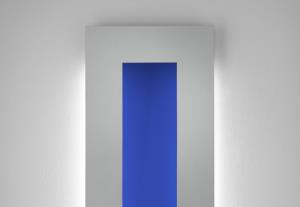

CG04 | Blue Color Gel

CG00
CG01
CG02
CG03
CG04

Faceplate Options

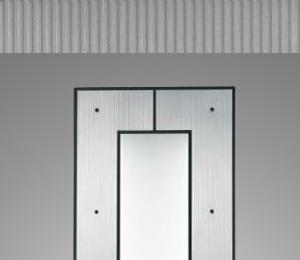

ES1 | Embossed Stainless Steel-Linear Pattern

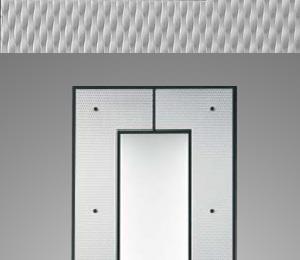

ES2 | Embossed Stainless Steel-Cross Hatch Pattern

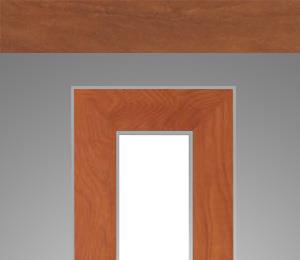

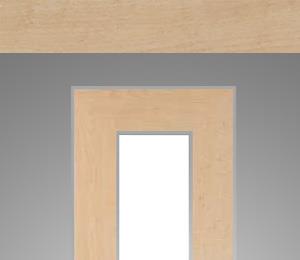

WF1 | Cherry Laminate
WF2 | Maple Laminate

ES1
ES2
WF1
WF2
Request a modification
prev
close
next

Walden Scouting Photos

Walden Scouting Photos
image 1 of 2

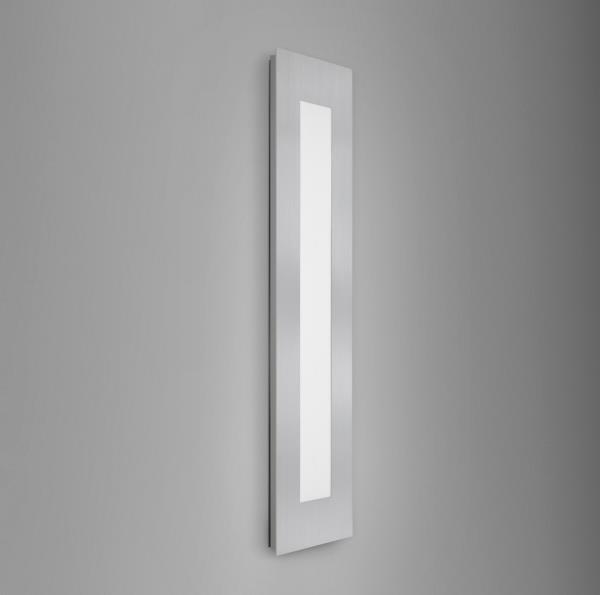

Reo - Product Images - Straight On
