Frisco
AIW10811 25.70 in
Frisco

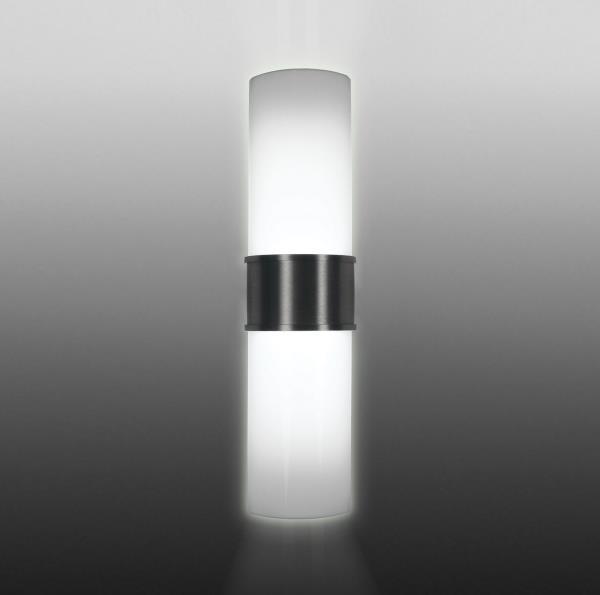

This wall sconce offers simple clean lines to provide accent lighting. The design fits a variety of spaces and is ideal for corridor or vanity applications. Choose from brushed aluminum or a palette of painted finishes.
Frisco AIW10811

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K.
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • LENS:  Top lens and bottom lens standard with any LED module
  • MOUNTING:  Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

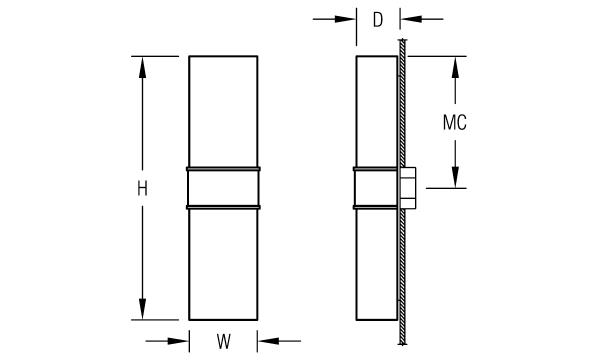

DIMENSIONS

Dimensions
W
6.6 in
16.8 cm
H
25.7 in
65.3 cm
D
4 in
10.2 cm
MC
12.8 in
32.5 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L29W | White 29W LED Light Engine

Delivered Lumens: 2,723

L14W | White 14W LED Light Engine

Delivered Lumens: 1,362


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote
