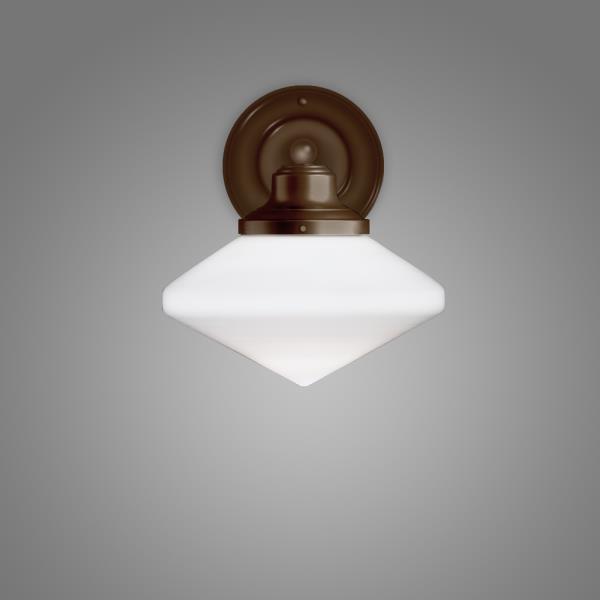

Ashland - Wall
AIW12195 14.00 in
Ashland - Wall
Classic designs never go out of style. Bring schoolhouse charm along with a state-of-the-art LED package to your vintage, industrial, and reclaimed interiors with the Ashland family of luminaires. And with efficacy of 104 lumens per watt, it delivers the performance needed for today in a traditional form that stands the test of time. Also available in incandescent.
Ashland - Wall AIW12195

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Timeless design, modern performance
  • Nostalgic feel
  • Authentic glass opal diffuser
  • Complimentary pendant and ceiling mounted luminaires help you to carry out a consistent lighting design throughout a space
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine or incandescent
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >72,000 Hrs.
  • EFFICACY: 104 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER: Integral Class 2 power supply standard
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena and nLight AIR optional. Contact factory for other controls (e.g., Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Opal glass
  • CONSTRUCTION: Aluminum or brass
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes.  RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

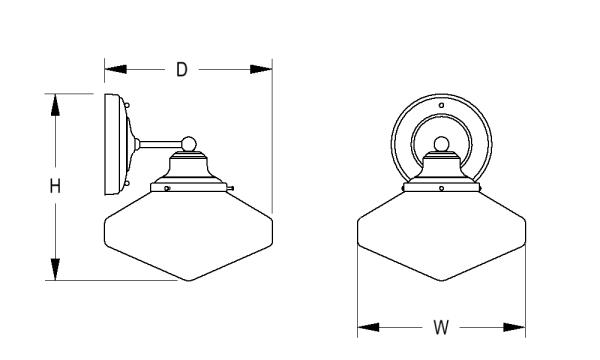

DIMENSIONS

Dimensions
W
14 in
35.6 cm
H
15.3 in
38.9 cm
D
14 in
35.6 cm
Mounting Weight
Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 2,290

L43W | White 43W LED Light Engine

Delivered Lumens: 4,476

1N150 1 | 1INC150W/A21
CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 22.0 - Max 43.0
LU   Min 2290 - Max 4476

1 Incandescent Lamp(s) Not Included

Voltage *

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Not required with incandescent.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 2 | (default)
90 3

2 Not available in 2700K
3 Not available in 5000K

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote
