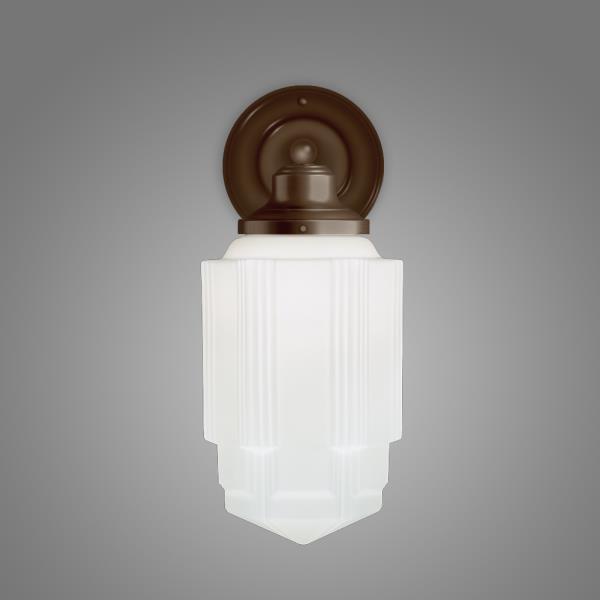

Ashland - Wall
AIW12196 9 in
Ashland - Wall
Classic designs never go out of style. Bring schoolhouse charm along with a state-of-the-art LED package to your vintage, industrial, and reclaimed interiors with the Ashland family of luminaires. And with efficacy of 104 lumens per watt, it delivers the performance needed for today in a traditional form that stands the test of time. Also available in incandescent.
Ashland - Wall AIW12196

Start building your product.

Specify your options and generate a personalized spec sheet.


  • Timeless design, modern performance
  • Nostalgic feel
  • Authentic glass opal diffuser
  • Complimentary pendant and ceiling mounted luminaires help you to carry out a consistent lighting design throughout a space
  • Handcrafted in USA


  • LIGHT SOURCE: White LED light engine or incandescent
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 104 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • DRIVER: Integral Class 2 power supply standard
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Opal glass
  • CONSTRUCTION: Aluminum or brass
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • EMERGENCY: Emergency battery remote optional
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes.  RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

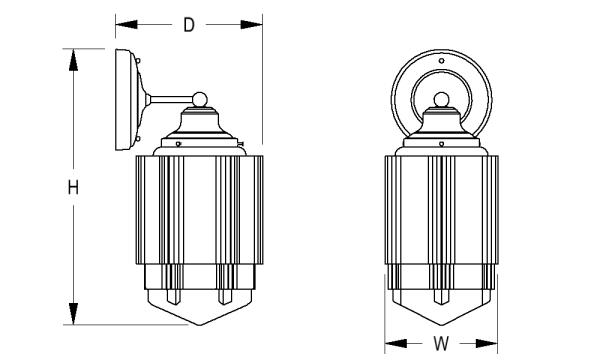

9.4 in
23.9 cm
23 in
58.4 cm
12.3 in
31.2 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.


Job Name:


To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 2,290
L43W | White 43W LED Light Engine

Delivered Lumens: 4,476
1N150 1 | 1INC150W/A21

1 Incandescent Lamp(s) Not Included

Voltage *

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options *

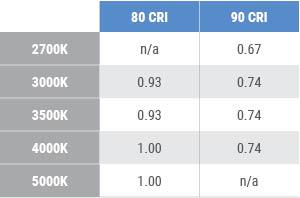

Delivered lumens shown are at 3500K and 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT

2 Apply .93 multiplier for delivered lumens


EMR | Emergency Battery Remote

Request a modification
