Harbor - Double Bars
AIW8273 18 in

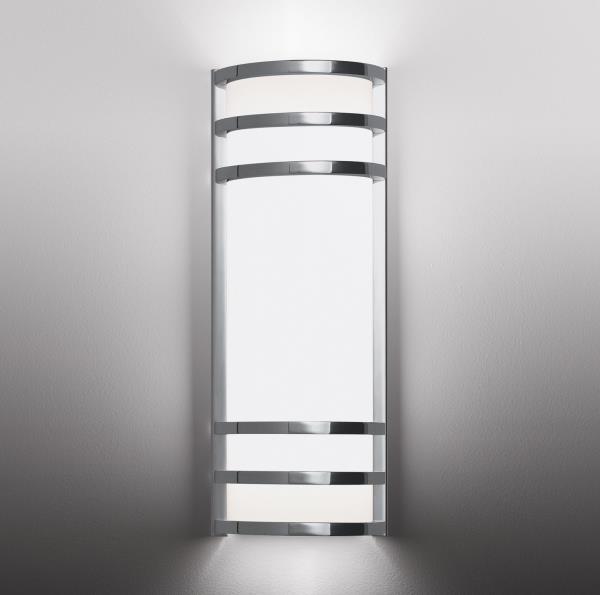

Harbor - Double Bars
The Harbor sconce is available with varying levels of ornamentation to adapt to many types of spaces and to meet a range of budgets. The fixture adds six horizontal bars for adornment, while still retaining the clean lines of the Harbor series.
Harbor - Double Bars AIW8273

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Optional VAN (vanity mount) features solid end caps for a fully enclosed fixture
  • Exterior family fixtures available to carry a consistent lighting design throughout a project
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER: Formed opal acrylic lens standard; matte acrylic optional. Prismatic top lens and bottom lens standard with any LED module. They shield direct view of the lamp in applications where views above or below the fixture are possible and prevent external objects from entering the fixture.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

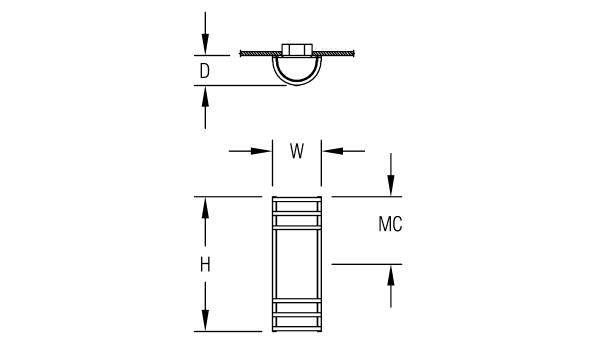

DIMENSIONS

Dimensions
W
7 in
17.8 cm
H
18 in
45.7 cm
D
4 in
10.2 cm
MC
9 in
22.9 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L14W | White 14W LED Light Engine

Delivered Lumens: 957

L29W | White 29W LED Light Engine

Delivered Lumens: 1,913


Voltage

120-277V | Universal Voltage

Mounting

Vanity mount features solid end caps.

VAN 1 | Vanity Mount

1 Solid end caps standard.

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Diffuser

DF_OA | Opal Acrylic Diffuser Lens (default)
MA01 | Matte Acrylic Diffuser Lens
OA
MA01

DownLoad my spec sheet Request a modification
