Osage - Basic
AIW8287 11 in
Osage - Basic

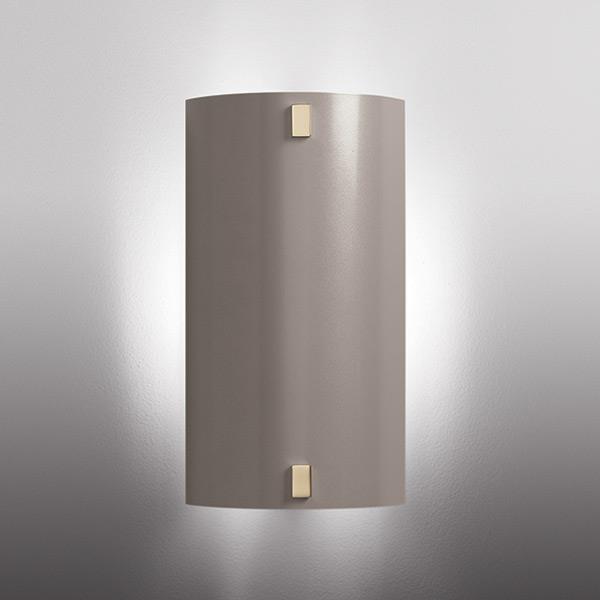

The solid metal housing and medallion decorative accents create a contemporary flair for this half-cylinder wall scone making it perfect for corridors, small spaces, or anywhere that a decorative element is needed. The Osage is also appropriate for spaces requiring ADA compliance. Choose from a palette of both painted and metal finishes.
Osage - Basic AIW8287

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fixture provides backlight illumination, accenting a space while creating a sense of depth
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • LUMEN MAINTENANCE (LED):  L70 life = 50,000+ hours
  • CCT:  Available LED color temperatures: 3000K, 3500K, or 4000K
  • DRIVER:  LED versions feature integral Class II power supply standard
  • DIMMING:  0-10V controls standard on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • LENS:  TL (top lens) and BL (bottom lens) standard with any LED module
  • MOUNTING:  Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

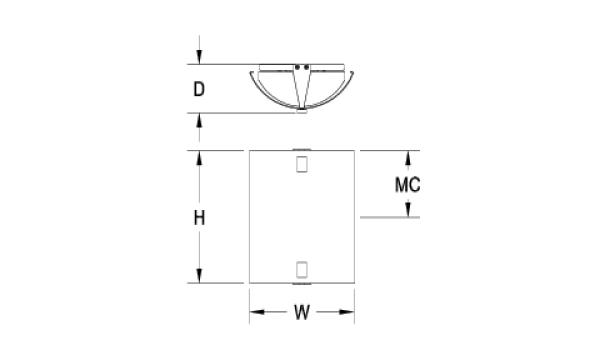

DIMENSIONS

Dimensions
W
9 in
22.9 cm
H
11 in
27.9 cm
D
4 in
10.2 cm
MC
7.5 in
19 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L7W | White 7W LED Light Engine

Delivered Lumens: 466

L14W | White 14W LED Light Engine

Delivered Lumens: 931

2N40 1 | 2INC40W/T10/Med

1 Incandescent/Quartz Lamp(s) Not Included

Voltage

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Accents *

ACM | Medallion Decorative Accent
