Montgomery
AIW8308 18 in
Montgomery

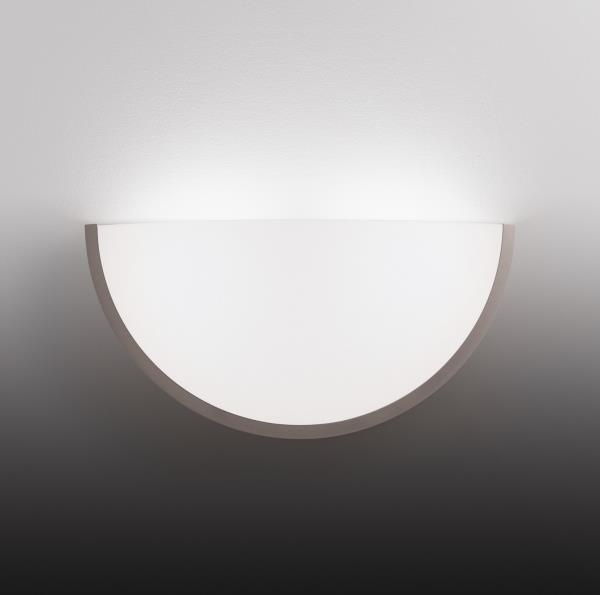

The Montgomery ADA compliant wall sconce features a spun metal backplate with a thermal formed opal acrylic lens. It is appropriate for a wide variety of applications where ADA compliance is an issue. Choose from a palette of both painted and metal finishes.
Montgomery AIW8308

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • LUMEN MAINTENANCE (LED):  L70 life = 50,000+ hours
  • CCT:  Available LED color temperatures: 3000K, 3500K, or 4000K
  • DRIVER:  LED versions feature integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 5% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional. Top lens standard with any LED module.
  • MOUNTING:  Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

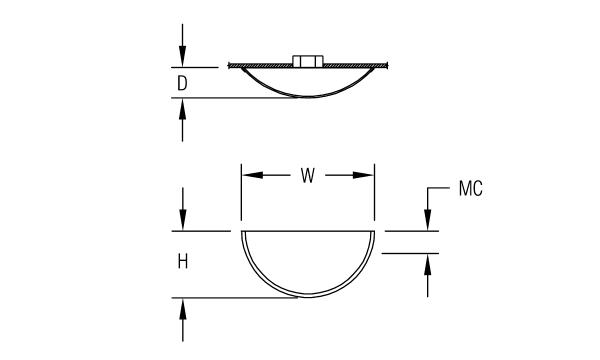

DIMENSIONS

Dimensions
W
18 in
45.7 cm
H
9 in
22.9 cm
D
4 in
10.2 cm
MC
3 in
7.6 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L11W | White 11W LED Light Engine

Delivered Lumens: 845

L22W | White 22W LED Light Engine

Delivered Lumens: 1,690


Voltage

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Diffuser

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens
OA
HP01
HP02
HP03
MA01
