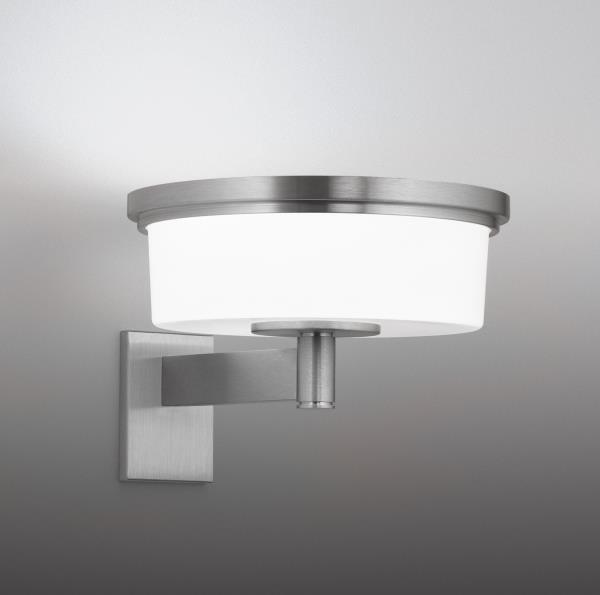

Minsk - Bowl on Arm
AIW8863 14.70 in
Minsk - Bowl on Arm
Our drum collection was inspired to create something different and new in the world of luminous lighting products, yet we find this simple form offers classic lines and patterns. Its application can approach a broad array of architectural environments for a new and fresh approach without losing its appeal in the years to come. The family includes pendant, chandelier, wall-mounted, and ceiling models to illuminate and enhance environments where you are looking to break stride with the past.
Minsk - Bowl on Arm AIW8863

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Hinge and latch assembly simplifies relamping by eliminating the need to remove and manage fixture bowl
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  Available LED color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  LED versions feature integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • MOUNTING:  Mounts to standard 4" octagonal junction box; additional mounting structure and hardware required (by others)
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

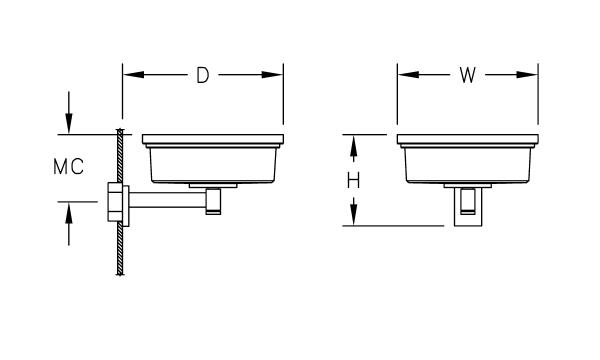

DIMENSIONS

Dimensions
W
14.7 in
37.3 cm
H
9.5 in
24.1 cm
D
16.7 in
42.4 cm
MC
7 in
17.8 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 2,119

L43W | White 43W LED Light Engine

Delivered Lumens: 4,239

1N100 1 | 1INC100W/A19
CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 22.0 - Max 43.0
LU   Min 2178 - Max 4257

1 Incandescent Lamp(s) Not Included
*For requests outside Min-Max range, please contact factory.

Voltage *

120V 2 | 120 Volt
120-277V | Universal Voltage

2 For incandescent light source only

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Not required with incandescent.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Diffuser *

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Options

F | Fusing
