Sebring
Sebring
AIW9673 12.00 in
Sebring

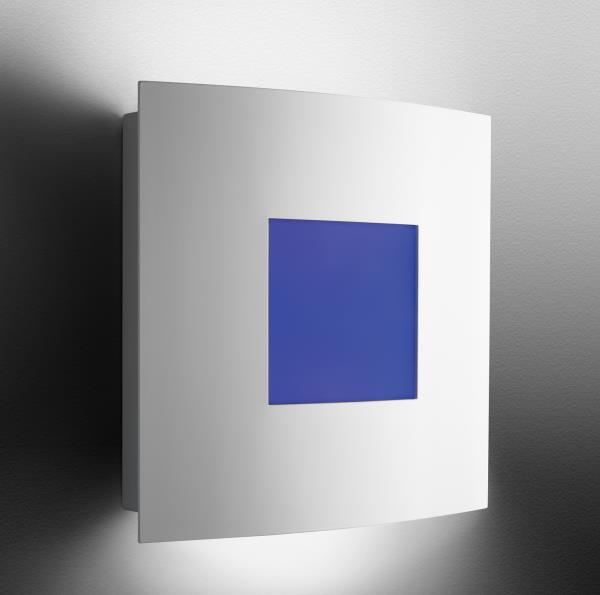

The Sebring sconce provides a designers "eye" to the world around it. Optional color gels can be provided for a splash of color and to increase visual interest. The fixture can be designed for any application where ADA compliance, path of egress lighting, and sophisticated styling is required. Choose from a palette of painted finishes or choose a brushed aluminum metal finish.
Sebring AIW9673

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Add a splash of color to a space with optional theatrical color gels (offered in five standard colors with custom colors available upon request)
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • LENS:  Top lens and bottom lens standard with any LED module
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

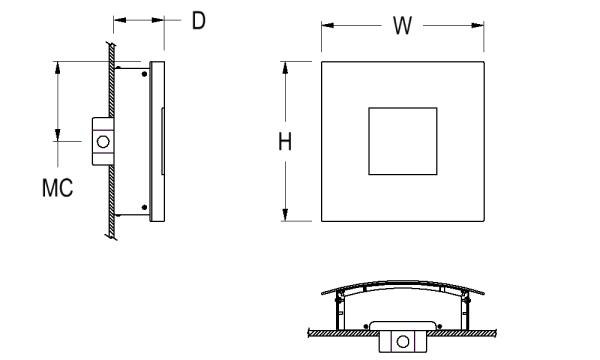

DIMENSIONS

Dimensions
W
12 in
30.5 cm
H
12 in
30.5 cm
D
3.8 in
9.7 cm
MC
6 in
15.2 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L7W | White 7W LED Light Engine

Delivered Lumens: 208

L14W | White 14W LED Light Engine

Delivered Lumens: 416

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 7.0 - Max 14.0
LU   Min 203 - Max 406

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Accents *

Contact factory to customize a color gel that coordinates with your application.

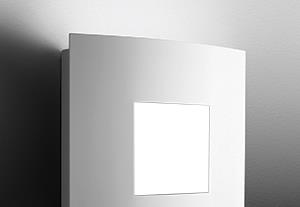

CG00 | White Color Gel

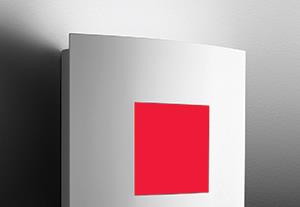

CG01 | Red Color Gel

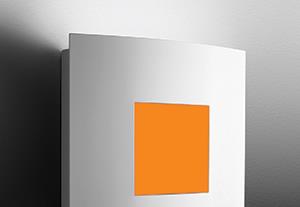

CG02 | Orange Color Gel

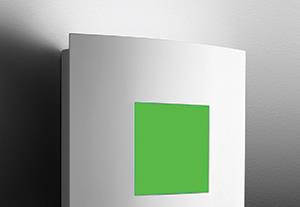

CG03 | Green Color Gel

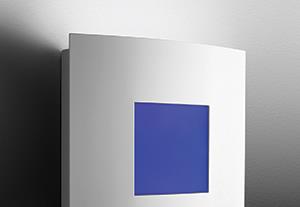

CG04 | Blue Color Gel

CG00
CG01
CG02
CG03
CG04
