Sebring
Sebring
AIW9972 13.00 in
Sebring - Decor

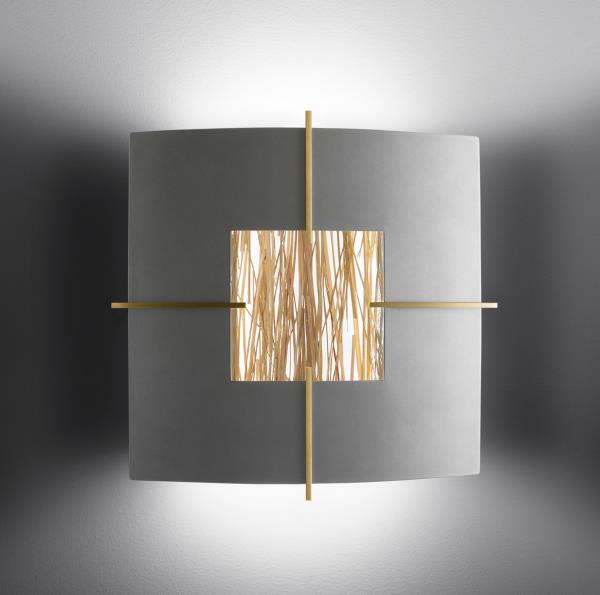

The Sebring sconce provides a designers "eye" to the world around it. This version features an inset decorative panel that adds a sense of depth and texture. Choose from a variety of standard architectural panels or customize your own to complement any decor. Choose from a palette of painted finishes or choose a brushed aluminum metal finish.
Sebring - Decor AIW9972

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Solid metal accents add high-quality, decorative element to fixture
  • Add texture to a space with architectural panels (standard panels are available with other panels available upon request)
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER: Integral Class 2 power supply standard
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • LENS: Top lens and bottom lens standard with any LED module
  • CONSTRUCTION: Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH: The face plate is aluminum and available in brushed or painted finishes. Accents are available in brushed, plated, or tinted brass or can be painted.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior application

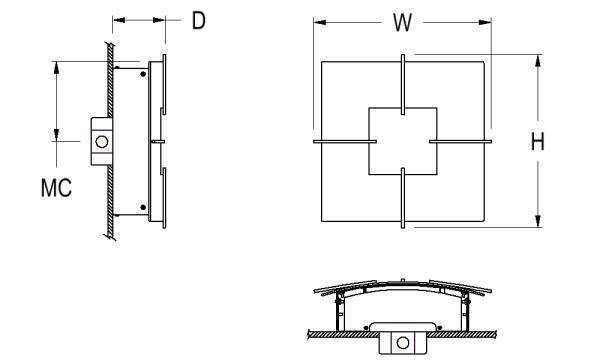

DIMENSIONS

Dimensions
W
13 in
33 cm
H
13 in
33 cm
D
4 in
10.2 cm
MC
6.5 in
16.5 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L7W | White 7W LED Light Engine

Delivered Lumens: 208

L14W | White 14W LED Light Engine

Delivered Lumens: 416

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 7.0 - Max 14.0
LU   Min 203 - Max 406

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Diffuser *

Other styles available upon request. Contact factory to customize an architectural panel that coordinates with your application.

HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
TPBG | Translucent Panel, Bear Grass

HP01
HP02
HP03
TPBG

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up

EMR | Emergency Battery Remote

Accents *

ACC | Decorative Accents
