Novato 2" Lines + Arcs
Unleash your creativity
CPS12238 5.00 in
Novato 2" Lines + Arcs

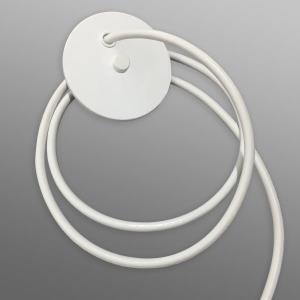

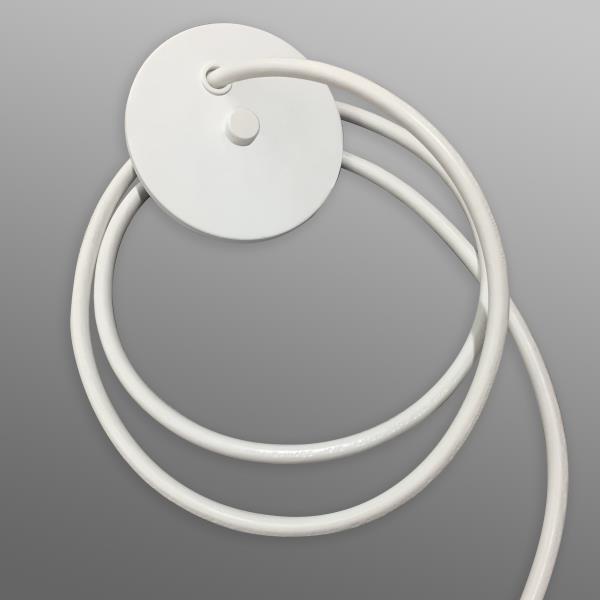

This power drop kit is specifically designed for the Novato 2" Lines + Arcs system. It includes a canopy and cord.
Novato 2" Lines + Arcs CPS12238

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES  & BENEFITS

  • One power drop required for every circuit

SPECIFICATIONS

  • VOLTAGE: 120-277V standard
  • POWER CORD: White power cord supplied compatible with Novato 2" Lines + Arcs luminaires
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to a standard 4" octagonal junction box; aircraft ceiling coupler (supplied with Novato unit) can be connected to the power drop canopy to gain flexibility in mounting
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

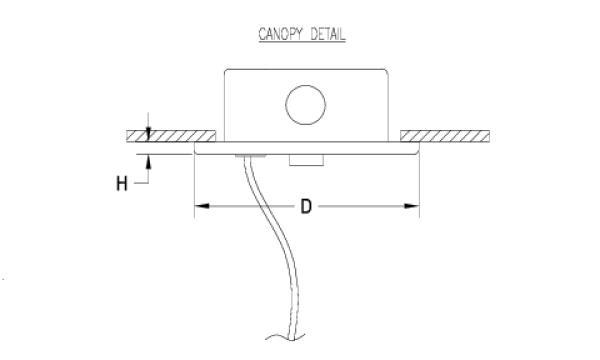

DIMENSIONS

Dimensions
H
0.3 in
0.8 cm
D
5 in
12.7 cm
OAH
48 in
121.9 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

CPC - CC | Canopy and Power Drop Kit

Voltage *

120-277V | Universal Voltage

Other Than Standard Options

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
