CPS12267 5.00 in
Zynn 2" Lines + Arcs

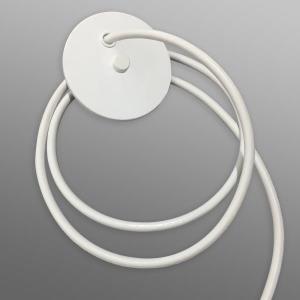

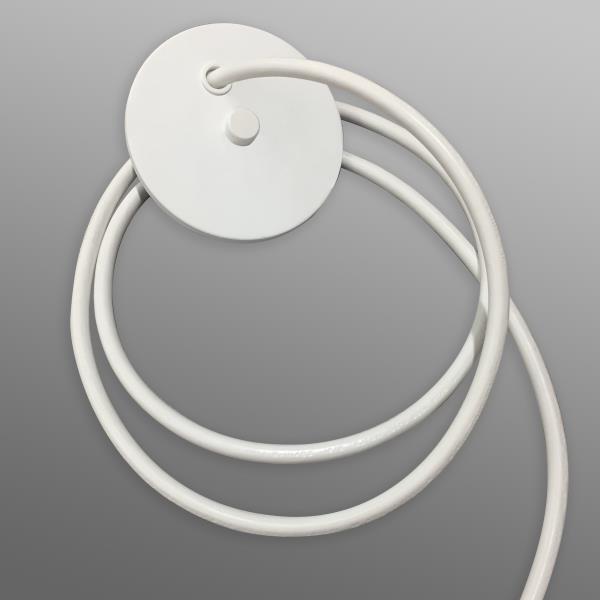

This power drop kit is specifically designed for the Zynn 2" Lines + Arcs system. It includes a canopy and cord.
Zynn 2" Lines + Arcs CPS12267

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES  & BENEFITS

  • One power drop required for every circuit

SPECIFICATIONS

  • VOLTAGE: 120-277V standard
  • POWER CORD: White power cord supplied compatible with Zynn 2" Lines + Arcs luminaires
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to a standard 4" octagonal junction box; aircraft ceiling coupler (supplied with Zynn unit) can be connected to the power drop canopy to gain flexibility in mounting
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

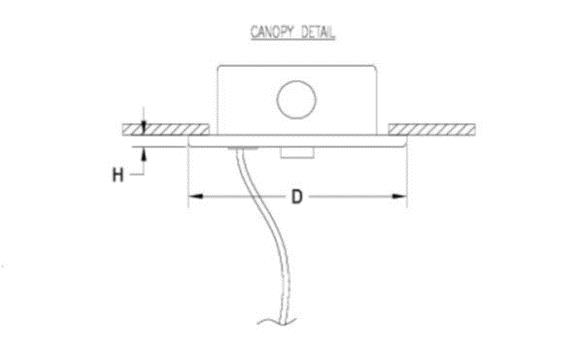

DIMENSIONS

Dimensions
H
0.3 in
0.8 cm
D
5 in
12.7 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

CPC - CC | Canopy and Power Drop Kit

Voltage

120-277V | Universal Voltage

Other Than Standard Options

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
Electrical Design: GRAEF | Plunkett Raysich Architects, LLP | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
image 1 of 16

Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
Electrical Design: GRAEF | Plunkett Raysich Architects, LLP | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
image 2 of 16

Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
Electrical Design: GRAEF | Plunkett Raysich Architects, LLP | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
image 3 of 16

Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
Electrical Design: GRAEF | Plunkett Raysich Architects, LLP | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Pavo 6” & Zynn 2" Lines + Arcs (Indirect) - Lumen Christi Catholic Church
image 4 of 16

Zynn 2" Lines + Arcs - Wayfinding Concept
Visualization: Mike Caine, SPI Lighting

<< BACK TO THUMBNAILS
Zynn 2" Lines + Arcs - Wayfinding Concept
image 5 of 16

Zynn 2" Lines + Arcs - Conference Room Concept
Visualization: Mike Caine, SPI Lighting

<< BACK TO THUMBNAILS
Zynn 2" Lines + Arcs - Conference Room Concept
image 6 of 16

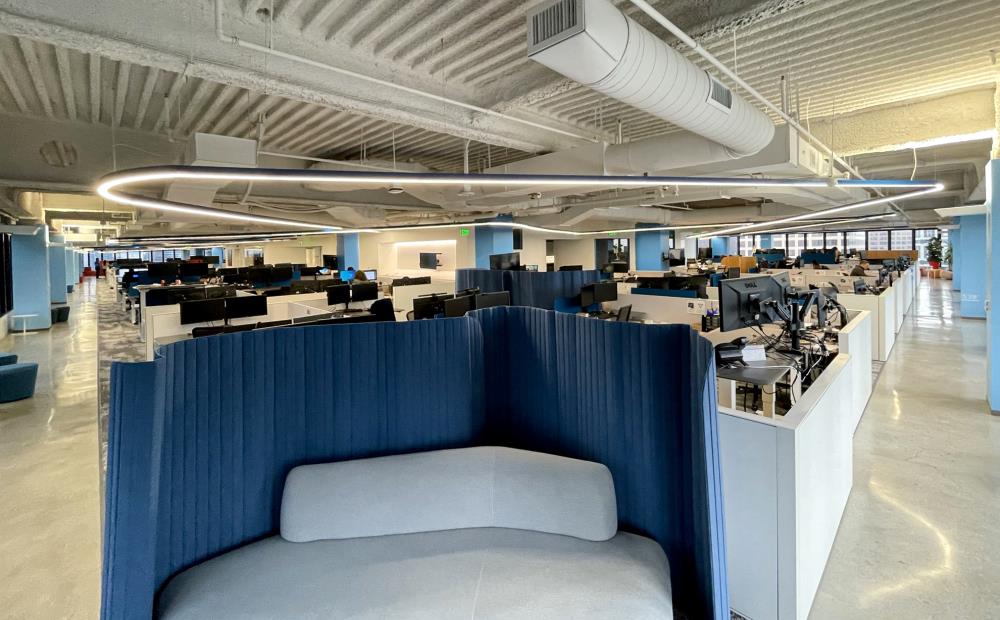

Zynn 2" Lines + Arcs - Open Office Concept
