Echo Velocity 3.5 Exterior
EEP11945 57 in

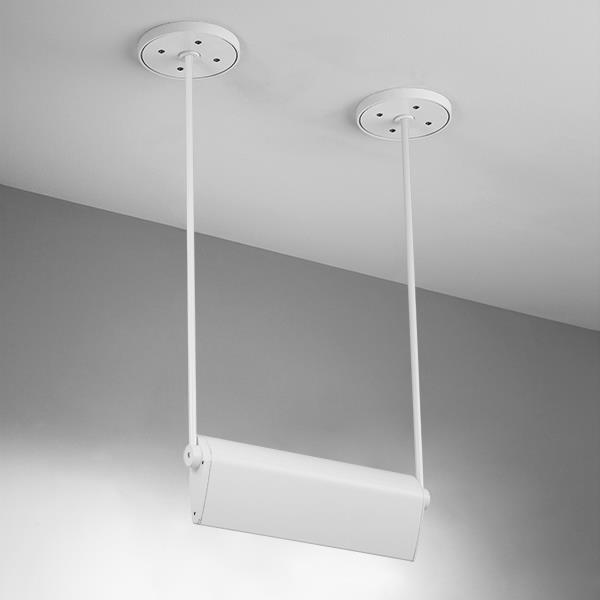

Echo Velocity 3.5 Exterior - Pendant
Designed with a unique, asymmetric profile, Echo Velocity 3.5 LED combines high-performance in an organic form. Offered in interior and exterior versions with multiple mounting options, this versatile luminaire lights a wide variety of projects well. It delivers the quality illumination and efficient light control the Echo family is known for. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Velocity 3.5 Exterior - Pendant EEP11945

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Field adjustable housing locks into position, enabling precise fixture alignment for high-quality design performance
  • Stainless steel external fasteners will not rust or corrode
  • Dust cover lens standard
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • LUMEN MAINTENANCE: L70 life = 50,000+ hours
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class II power supply
  • DIMMING:  0-10V controls standard to 1% on LED light engines; Lutron control options available
  • CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable; cast aluminum end caps protect internal components and are recyclable
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static color options
  • APPROVALS:  ETL listed to UL standards (US and Canada) for use in wet locations. IP66 rated fixture per International Electrotechnical Commission (IEC) certifies fixture as dust-tight and protected against powerful water jets. Run configuration is wet location listed only.

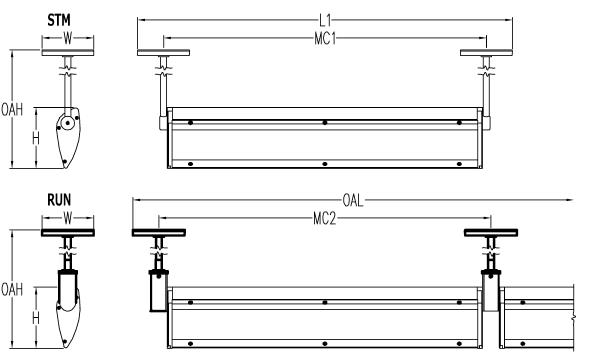

DIMENSIONS

Dimensions
W
6.2 in
15.7 cm
L1
56.6 in
143.8 cm
H
7.2 in
18.3 cm
OAH
35.9 in
91.2 cm
MC1
50.4 in
128 cm
MC2
51.6 in
131.1 cm
Mounting Weight
Consult Factory.
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L15W | White 15W LED Light Engine

Delivered Lumens: 1,445

L29W | White 29W LED Light Engine

Delivered Lumens: 2,720

L57W | White 57W LED Light Engine

Delivered Lumens: 5,440


Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

Mounts to standard 4" octagonal junction box. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

STM | Stem Mount
RUN 3 | Continuous Run
OAL | Specify Length of Run
  ft.

3 For a take-off and pricing, contact factory.   Wet listed only

Dimming

DF_DIM1 | 1% dimming with 0-10V control (default)
LUT0 | Lutron Hi-Lume, (LDE1) Eco System, Fade to Black Dimming
LUT2 | Lutron Hi-Lume, (LTEA2W) 2-Wire, 1% Dimming (120V Forward Phase Only)
LUT5 | Lutron 5 Series, (LDE5) Eco System 5% Dimming

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
