EEW12173 45.00 in
Echo Blade - Exterior

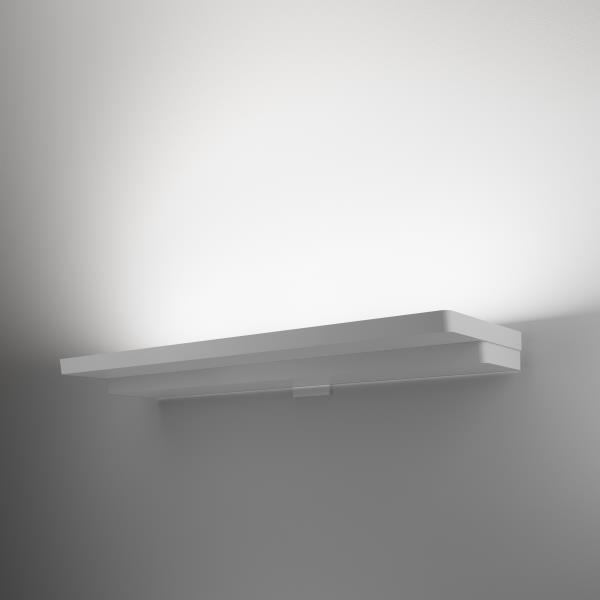

Echo Blade is the slimmest, most discreet high output asymmetric lighting tool on the market. It combines high output density with outstanding quality in a sleek, new architectural form that performs as great as it looks. With a profile just over 3”, SPI Lighting’s Echo Blade can deliver from 11,000 to 33,000 lumens. Specially constructed for wet locations, this IP66 rated luminaire is ideal for illuminating canopies with comfortable, glare-free light. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Blade - Exterior EEW12173

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Increase visual comfort, eliminate source brightness, and improve light uniformity with indirect lighting
  • A true asymmetric with high-efficiency optics
  • Efficacy up to 102 lm/W
  • Optional backlight shielding available
  • Full horizontal cut-off
  • Minimal projection off the wall
  • Delivers a smooth, consistent beam pattern of even white light suitable for highly-finished ceilings and walls
  • Top lens removes striations and corrects for color-over-angle
  • Natatorium-rated: Durable aluminum housing, minimum 2 mils powder coat paint finish, corrosion-resistant fasteners, sealed LED modules, and fully potted power supply(s) sealed with epoxy
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • ORIENTATION: Indirect or direct
  • LUMEN MAINTENANCE:  L90 = >72,000 Hrs at 40°C ambient temperature
  • EFFICACY:  Up to 102 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes integral Class 2 power supplies
  • MAX AMBIENT OPERATING TEMP: 40°C (104°F)
  • DIMMING:  0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Aluminum construction; precision injection molded optics
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations; suitable for interior or exterior use. IP66 rated fixture per International Electrotechnical Commission (IEC) certifies fixture as dust-tight and protected against powerful water jets.

DIMENSIONS

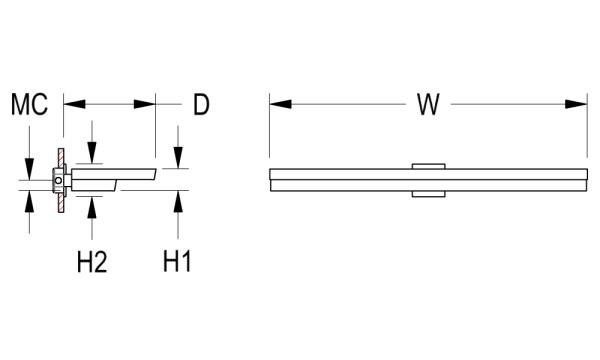

Dimensions
W
45 in
114.3 cm
H1
3.1 in
7.9 cm
H2
4.6 in
11.7 cm
D
13.1 in
33.3 cm
MC
2.3 in
5.8 cm
Mounting Weight
Approximate: 35 lb (16 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Delivered lumens shown are with the Wide Asymmetric (WA) optical package; apply multiplier for alternate distribution.

L324W | White 324W LED Light Engine

Delivered Lumens: 32,983

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 162.0 - Max 324.0
LU   Min 16492 - Max 32983

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

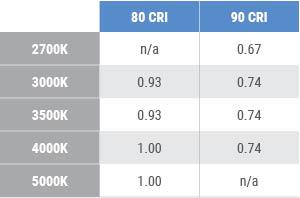

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 1 | (default)
90 2

1 Not available in 2700K
2 Not available in 5000K

Mounting

Yoke mount features ±12° of adjustable tilt.

DF_YOK | Yoke Mount with 4.6" J-Box Cover

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR-Damp includes damp location enclosure for Battery back-up. EMR-W/L includes a wet location enclosure for battery back-up.

EMR-DAMP | Emergency Battery Remote - Damp Location
EMR-W/L | Emergency Battery Remote - Wet Location

Optical Distribution *

The backlight shield reduces the appearance of hot spots on walls. Contact factory for applications support.

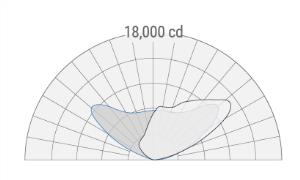

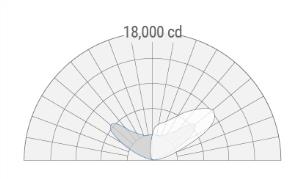

WA | Wide Asymmetric Type IV

WAB 3 | Wide Asymmetric with Backlight Shield


3 Delivered lumens are 70% of the output shown under Light Source; see IES file
WA
WAB

Options

F | Fusing
