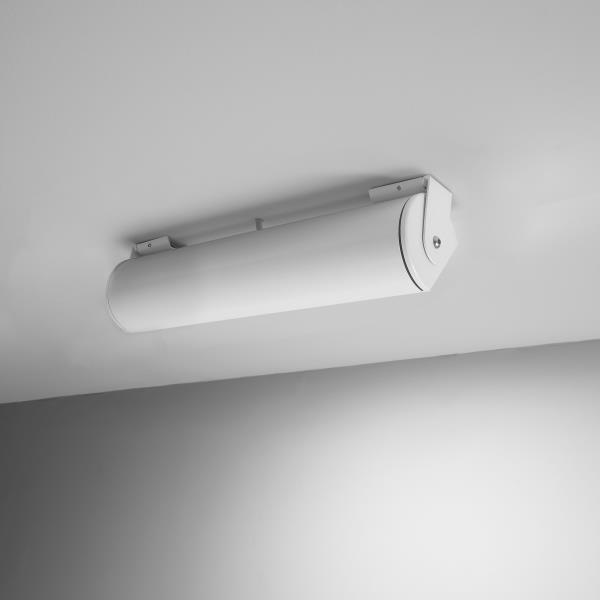

Echo Round 3.5 LED - Ceiling
Echo Round 3.5 LED features a compact housing, integral power supply, and efficient optical design. This unobtrusive lighting solution is perfect for small spaces with lower ceilings such as small offices, conference rooms, corridors, lobbies, and coves. Customize your visual environment with a wide variety of mounting and shielding options sure to solve your lighting application challenges. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Round 3.5 LED - Ceiling EIC11911

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Stainless steel external fasteners will not rust or corrode
  • Field adjustable housing locks into position, enabling precise fixture alignment for high-quality design performance
  • Dust cover lens standard
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • LUMEN MAINTENANCE: L70 life = 50,000+ hours
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class II power supply standard
  • DIMMING:  0-10V controls standard  to 1% on LED light engines; Lutron control options available
  • EMERGENCY: Emergency battery remote optional
  • CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable; cast aluminum end caps protect internal components and are recyclable
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static color options
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in damp locations; not recommended for exterior applications

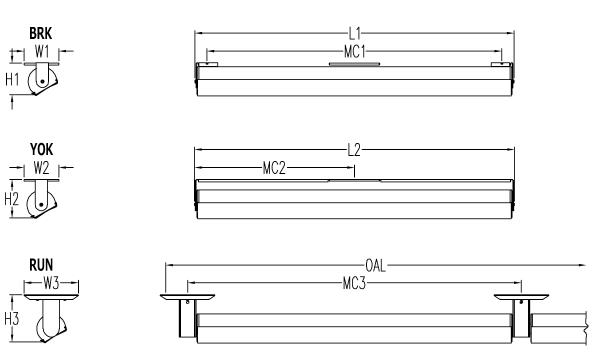

DIMENSIONS

Dimensions
L1
26 in
66 cm
L2
26.1 in
66.3 cm
H1
3.9 in
9.9 cm
H2
4.7 in
11.9 cm
H3
5.7 in
14.5 cm
MC1
23.1 in
58.7 cm
MC2
13.1 in
33.3 cm
MC3
27.8 in
70.6 cm
W1
4.2 in
10.7 cm
W2
4.2 in
10.7 cm
W3
6.5 in
16.5 cm
Mounting Weight
Consult Factory.
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L8W | White 8W LED Light Engine

Delivered Lumens: 651

L14W | White 14W LED Light Engine

Delivered Lumens: 1,225

L29W | White 29W LED Light Engine

Delivered Lumens: 2,451


Voltage

120-277V | Universal Voltage

Mounting *

Bracket mount is supplied with a discrete cover that fits over a standard 4" octagonal junction box. Additional support required (by others). Yoke and Run mount to standard 4" octagonal junction box with auxiliary mounting holes. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

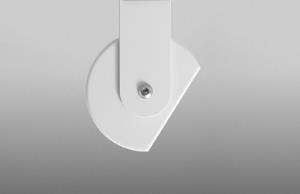

BRK | Bracket Mount

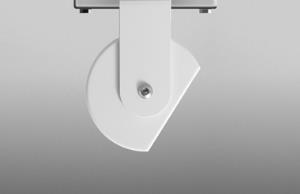

YOK | Yoke Mount
RUN 1 | Continuous Run
OAL | Specify Length of Run
  ft.

1 For a take-off and pricing, contact factory
BRK
YOK

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Dimming

DF_DIM1 | 1% dimming with 0-10V control (default)
LUT0 | Lutron Hi-Lume, (LDE1) Eco System, Fade to Black Dimming
LUT2 | Lutron Hi-Lume, (LTEA2W) 2-Wire, 1% Dimming (120V Forward Phase Only)
LUT5 | Lutron 5 Series, (LDE5) Eco System 5% Dimming

Emergency

EMR | Emergency Battery Remote

Accessories

Cut-off shield (CS), louver (LV) and translucent shield (TS) options cannot be used together.

CS | Cut-Off Shield

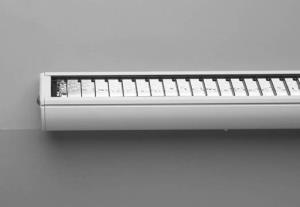

LV2 | Black Unidirectional Louver External

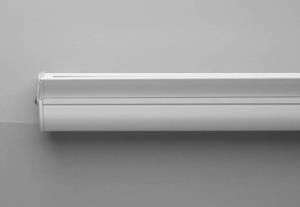

TS | Translucent Shield
CS
LV2
TS
