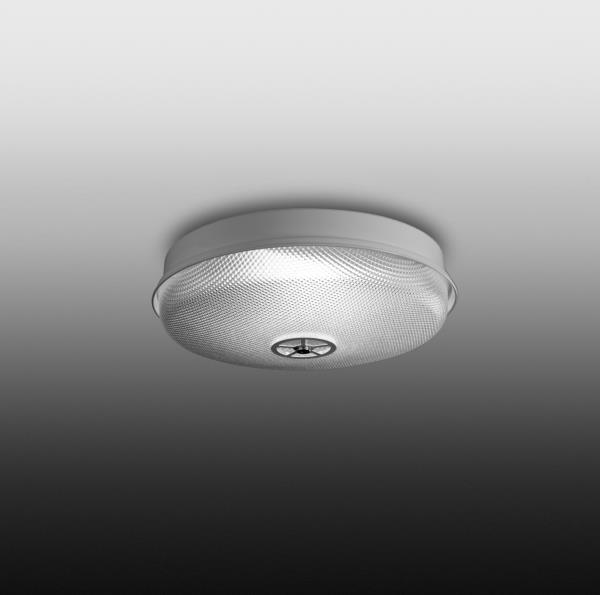

IPS LED - Ceiling
EIC8393 30 in
IPS LED - Ceiling
The IPS series provides the advantages of LED technology in a fixture form appropriate for spaces traditionally lit by HID high-bays and low-bays. This luminaire provides an alternative to 250 watt Metal Halide fixtures. Features include instant-on, instant restrike, dimming, and a near 50 percent energy savings vs. traditional HID lamped fixtures. IPS is the ideal lighting solution for a variety of applications including athletic facilities, large retail spaces, multi-purpose facilities, and a wide range of industrial applications. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com. Companion pendant fixtures also available.
IPS LED - Ceiling EIC8393

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Optical chamber painted high reflectance (minimum 92%) white
  • Spun metal housing adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • EFFICACY:  109 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • LENS:  Clear Pattern 12 prismatic acrylic lens
  • FINISH:  Superwhite (PT01) thermoset polyester powder coat paint standard
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

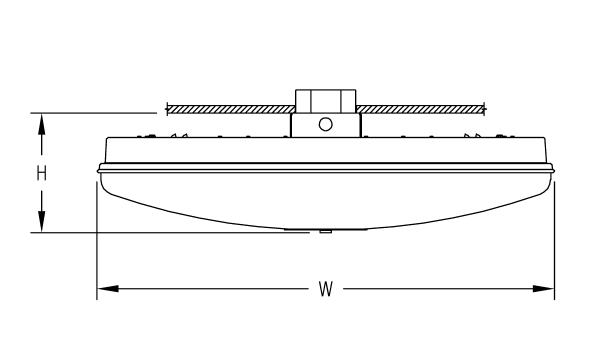

DIMENSIONS

Dimensions
W
30 in
76.2 cm
H
7.8 in
19.8 cm
Mounting Weight
Consult Factory.
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L172W | White 172W LED Light Engine

Delivered Lumens: 18,714


Voltage

120-277V | Universal Voltage

Lamp Options

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Options

WG | Wire Guard
