EIP12252 38.20 in

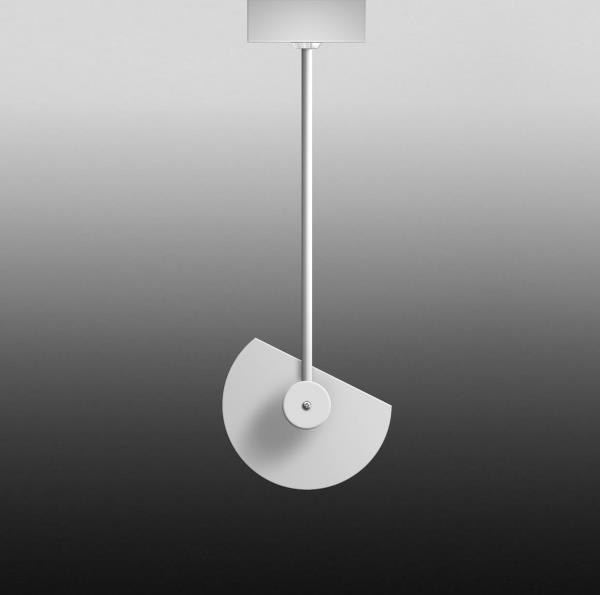

Echo Round 9.0 LED - Pendant
Powered by next generation LED technology, Echo Round 9.0 is one of the most comfortable and efficient ways to deliver performance indirect lighting today. With it, you can effectively illuminate large, open spaces from the perimeter with high lumen packages and a forward throw of smooth, uniform light. Improve comfort and visibility by concealing the light source from view. Offered in 14,000 to 42,500 lumen packages, Echo Round 9.0 provides an impressive amount of light in a classic, compact design. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Round 9.0 LED - Pendant EIP12252

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • More efficient (131 lm/W) and higher output than any product in its category
  • Hides direct view of the light source, improving visual comfort and mitigating glare
  • Field-adjustable housing locks into position, enabling precise fixture alignment
  • Forward tilt directs light away from the wall to the center of the room
  • High ambient operating temperature rating and long rated lifetime
  • Choose from three standard color temps: 3000K, 3500K, 4000K
  • 0-10V dimming to 1% comes standard
  • Built to last from durable extruded aluminum
  • Natatorium construction option available for additional protection in corrosive environments
  • Rounded geometry blends naturally with architecture
  • Excellent replacement for 250W or 400W indirect metal halide fixtures with up to 57% energy savings
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • ORIENTATION: For indirect use only
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L90 = >72,000 Hrs. at 44°C ambient temperature
  • EFFICACY:  Up to 131 lm/W delivered
  • MAX AMBIENT OPERATING TEMP: 44°C (111°F)
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER:  Fully potted integral Class 2 power supply standard
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Extruded aluminum housing and cast aluminum end caps provide durable protection for internal components; precision injection molded optics
  • FINISH:  Housing and mounting components finished to match. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including multi-head pendants
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in damp locations; not recommended for exterior applications

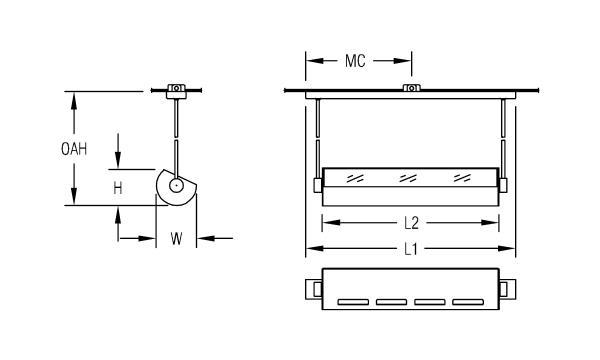

DIMENSIONS

Dimensions
W
8.9 in
22.6 cm
L1
45.5 in
115.6 cm
L2
38.2 in
97 cm
H
7.8 in
19.8 cm
OAH
80 in
203.2 cm
MC
22.8 in
57.9 cm
Mounting Weight
Approximate: 40 lb (19 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L325W | White 325W LED Light Engine

Delivered Lumens: 42,413

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 162.0 - Max 325.0
LU   Min 21141 - Max 42412

Voltage *

120-277V | Universal Voltage

Lamp Options *

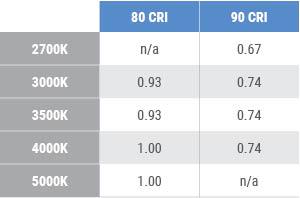

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 1 | (default)
90 2

1 Not available in 2700K
2 Not available in 5000K

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 3 | Lutron Athena Wireless Node, 1% Dimming
NX 3 | Current NX Wireless, 1% Dimming
NLTA 3 | Acuity nLight Air, 1% Dimming

3 Not recommended for natatorium environments without additional component protection. Contact factory for options.

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes.

DF_STM | Stem Mount (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Accessories

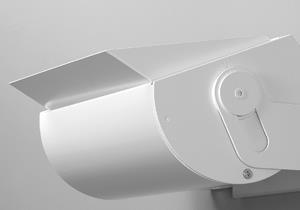

Cut-Off Shield painted to match housing.

CS | Cut-Off Shield

CS

Options

Natatorium Construction means you can be confident that your SPI Lighting luminaire is built to withstand the corrosive environments of natatoriums. Stainless steel fasteners are added to the fixture’s already robust design, which includes an aluminum housing painted with a minimum of 2 mils powder coat paint and fully-potted power supply(s).

NAT | Natatorium Construction
F | Fusing

Other Than Standard Options

Specify the overall height required from ceiling to the bottom of the fixture. The OAH min/max range is determined only by the physical limitations of the luminaire. Appropriate mounting heights are separately calculated from photometric lighting layouts and recommended from the specifier. If the specified mounting height is outside of the OAH range, please contact the factory.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
