FEATURES & BENEFITS
- High quality indirect light increases visual comfort, eliminates source brightness, and improves uniformity
- True asymmetric optics with a deep forward throw
- Specify the direction of the light
- Glare-free with full horizontal cut-off
- Can tilt fixture heads +/-8.5° and still maintain full horizontal cut-off; locks into position
- Super-high 129 lm/W standard efficacy
- Lights from the perimeter
- Delivers a smooth, consistent beam pattern of even white light suitable for highly-finished ceilings and walls
- Specially designed to operate in high ambient temperature environments
- Innovative pin-fin aluminum heat sink keeps LEDs cool, lengthening the lifetime
- Natatorium option adds additional protection in corrosive environments
- LED modules and power supplies are integrated into a quick-change light engine
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine with gasketed and sealed LEDs
- CRI: 80+ (contact factory for 90+)
- ORIENTATION: Indirect (contact factory for direct applications)
- LUMEN MAINTENANCE: L90 = >72,000 Hrs at 40°C ambient temperature
- EFFICACY: Up to 129 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Integral Class 2 power supply
- MAX AMBIENT OPERATING TEMP: 40°C (104°F)
- DIMMING: 0-10V controls standard to 1%
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- CONSTRUCTION: Aluminum construction; precision injection molded optics
- FINISH: Housing and mounting components finished to match, except the heat sink which is always painted Satin Aluminum (PT50). Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests, including wire guard options
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 75 lb (35 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
(2) 433W | White 866W LED Light Engine
Delivered Lumens: 111,881
Lamp Options *
Delivered lumens shown are at 3500K and 4000K CCT; apply multiplier for delivered lumens at other CCT. Contact factory for alternate color temperatures.
1 Apply .93 multiplier for delivered lumens

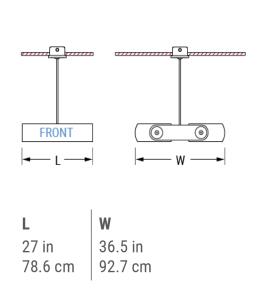

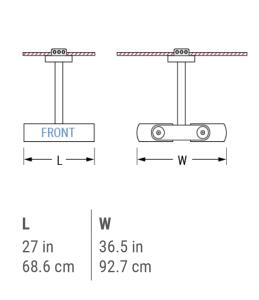

Mounts over standard 4” octagonal junction box with auxiliary mounting holes. STM5 is field cuttable.

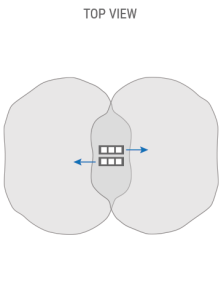

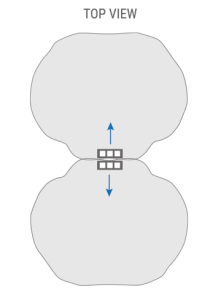

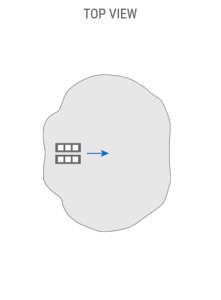

Optical Orientation *
Specify the direction of light.
When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.
Other Than Standard Options

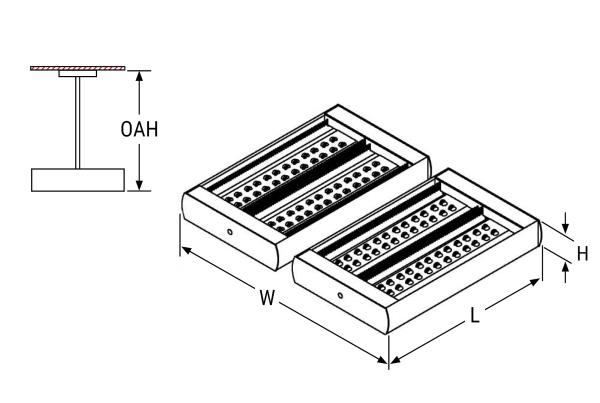

Specify overall height required from the ceiling to the bottom of the fixture. The OAH min/max range is determined only by the physical limitations of the luminaire. Appropriate mounting heights are separately calculated from photometric lighting layouts and recommended from the specifier. If the specified mounting height is outside of the OAH range, please contact the factory.
| Pendant suspension length other than standard
