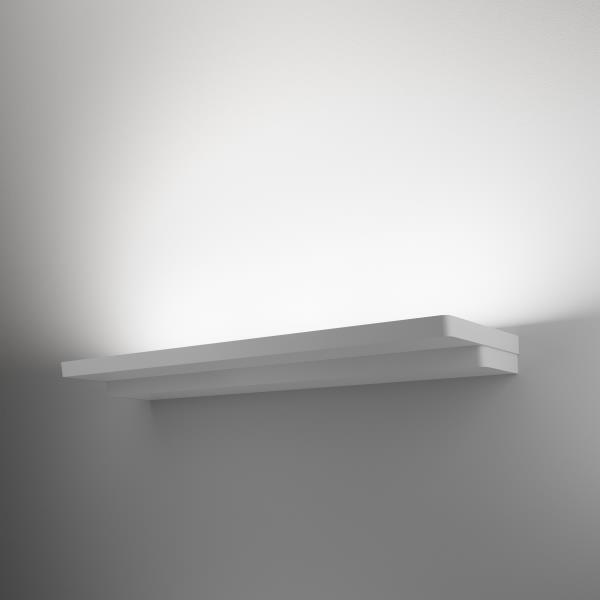

Echo Blade is the slimmest, most discreet high output asymmetric lighting tool on the market. It combines high output density with outstanding quality in a sleek, new architectural form that performs as great as it looks. With a profile just over 3”, SPI Lighting’s Echo Blade can deliver from 12,000 to 36,000 lumens. Available in either a deep forward throw or a wide distribution, it is ideal for illuminating large spaces with comfortable, glare-free light. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Blade EIW12184

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Increase visual comfort, eliminate source brightness, and improve light uniformity with indirect lighting
  • A true asymmetric with high-efficiency optics
  • Efficacy up to 112 lm/W
  • Optional backlight shielding available
  • Full horizontal cut-off
  • Minimal projection off the wall
  • Delivers a smooth, consistent beam pattern of even white light suitable for highly-finished ceilings and walls
  • Top lens removes striations and corrects for color-over-angle
  • Natatorium-rated version available
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • ORIENTATION: Indirect or direct
  • LUMEN MAINTENANCE:  L90 = >72,000 Hrs at 40°C ambient temperature
  • EFFICACY:  Up to 112 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes integral Class 2 power supplies
  • MAX AMBIENT OPERATING TEMP: 40°C (104°F)
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena optional. Contact factory for other controls (e.g., nLight AIR, Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Aluminum construction; precision injection molded optics
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

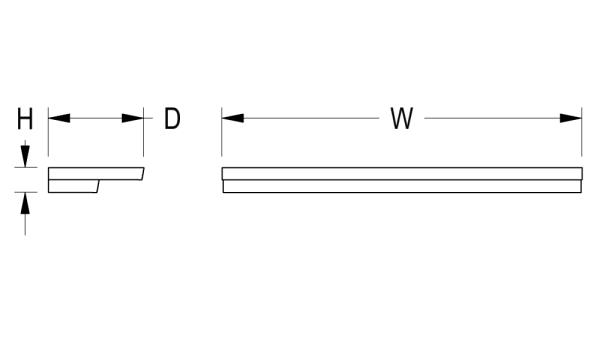

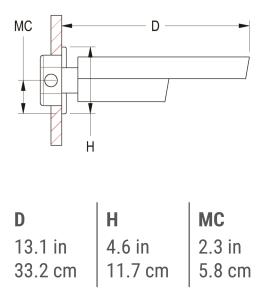

DIMENSIONS

Dimensions
W
45 in
114.3 cm
H
3.1 in
7.9 cm
D
12 in
30.5 cm
Mounting Weight
Approximate: 35 lb (16 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Delivered lumens shown are with the Deep Asymmetric (DA) optical package; apply multiplier for alternate distributions.

L324W | White 324W LED Light Engine

Delivered Lumens: 36,320

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 162.0 - Max 324.0
LU   Min 18160 - Max 36320

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

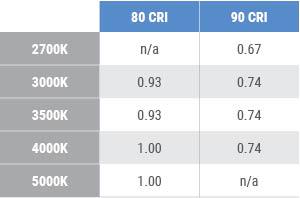

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 1 | (default)
90 2

1 Not available in 2700K
2 Not available in 5000K

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as nLight AIR, Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming

Mounting *

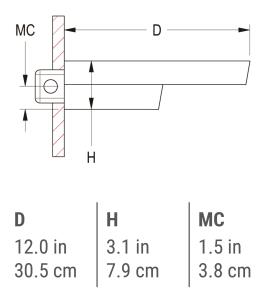

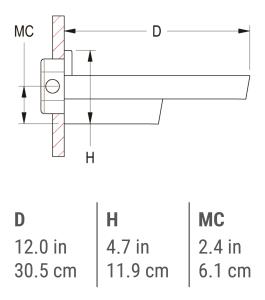

Yoke mount features ±12° of adjustable tilt.

SSB | Surface Mount over Switch Box
SJB | Surface Mount with 4.6" J-Box Cover
YOK | Yoke Mount with 4.6" J-Box Cover

SSB
SJB
YOK

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Optical Distribution *

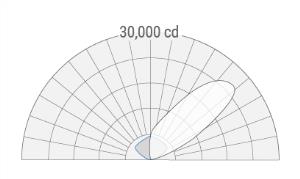

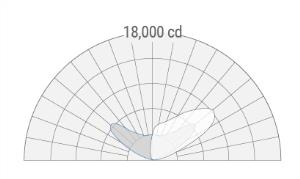

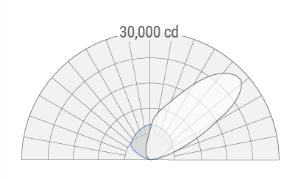

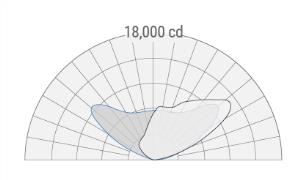

The Deep Asymmetric beam is commonly used in larger spaces to get more light to the center of the room. The Wide Asymmetric beam provides more even illumination in smaller spaces and allows for greater fixture spacing. The backlight shield reduces the appearance of hot spots on walls. Contact factory for applications support.

DA | Deep Asymmetric

WA 3 | Wide Asymmetric

DAB 4 | Deep Asymmetric with Backlight Shield

WAB 5 | Wide Asymmetric with Backlight Shield


3 Delivered lumens are 91% of the output shown under Light Source; see IES file
4 Delivered lumens are 78% of the output shown under Light Source; see IES file
5 Delivered lumens are 63% of the output shown under Light Source; see IES file
DA
WA
DAB
WAB

Options

Natatorium construction adds stainless steel fasteners and silicone potted connections to the luminaire’s already robust construction, which includes a durable aluminum housing, minimum 2 mils powder coat paint finish, and fully-potted power supply(s) sealed with epoxy.

NAT | Natatorium Construction
F | Fusing
