Echo Blade Micro Max
EIW12398 9.13 in
Echo Blade Micro Max
Our Smallest, most powerful, and most versatile asymmetric lighting tool. Designed to be a discreet powerhouse, this fixture delivers up to 5,000 lumens, has 6 optical distributions, and can be utilized in both indirect and direct applications.
Echo Blade Micro Max EIW12398

Start building your product.

Specify your options and generate a personalized spec sheet.

 FEATURES & BENEFITS

  • 4” x 9”x 4”
  • ADA compliant
  • Up to 5,000 delivered lumens
  • 6 optical distributions
  • Indirect and direct applications
  • A true asymmetric with high-efficiency optics
  • Efficacy up to 112 lm/W
  • Optional backlight shield available
  • Full horizontal cutoff
  • Top lens removes striations and corrects for color-over-angle
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • ORIENTATION: Indirect or direct
  • LUMEN MAINTENANCE:  L85 = >72,000 Hrs at 35°C ambient temperature
  • EFFICACY:  Up to 112 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes integral Class 2 power supplies
  • MAX AMBIENT OPERATING TEMP: 35°C (95°F)
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., nLight Air, Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery Back-up, providing 90 minutes of emergency operation.  Contact factory for other emergency options.
  • CONSTRUCTION: Aluminum construction; precision injection molded optics
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

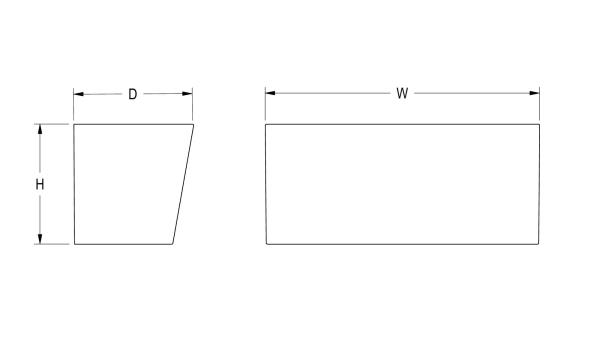

DIMENSIONS

Dimensions
W
9.1 in
23.2 cm
H
4 in
10.2 cm
D
4 in
10.2 cm
Mounting Weight
Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Delivered lumens shown are with the Deep Asymmetric (DA) optical package; apply multiplier for alternate distributions.

L22W | White 22W LED Light Engine

Delivered Lumens: 2,466

L44W | White 44W LED Light Engine

Delivered Lumens: 4,932


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 1 | (default)
90 2

1 Not Available in 2700K
2 Not Available in 5000K

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as nLight Air, Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming

Mounting

Yoke Mount features ±15° of adjustable tilt.

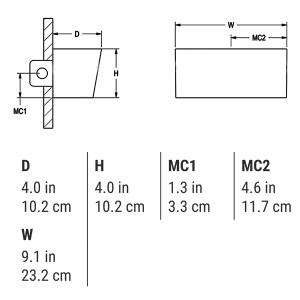

SSB | Surface Mount Over Switch Box

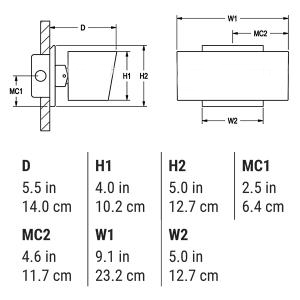

YOK 3 | Yoke Mount With Standard J-Box Cover

3 Not ADA Compliant with yok mount
SSB
YOK

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for battery back-up.

EMR | Emergency Battery Remote

Optical Distribution

Deep Asymmetric: Larger spaces, gets more light to center of room.
Wide Asymmetric: Ceiling uniformity, wall wash, closer to ceiling applications.
Ultra-Wide Asymmetric: Narrow spaces, maximize fixture spacing.

DA | Deep Asymmetric
DAB 4 | Deep Asymmetric with Backlight Shield
WA 5 | Wide Asymmetric
WAB 6 | Wide Asymmetric with Backlight Shield
UWA 7 | Ultra Wide Asymmetric
UWAB 8 | Ultra Wide Asymmetric With Backlight Shield

4 Delivered lumens are 76% of the output shown under Light Source; see IES file
5 Delivered lumens are 97% of the output shown under Light Source; see IES file
6 Delivered lumens are 65% of the output shown under Light Source; see IES file
7 Delivered lumens are 95% of the output shown under Light Source; see IES file
8 Delivered lumens are 73% of the output shown under Light Source; see IES file
DA
DAB
WA
WAB
UWA
UWAB
