LRU12242 26 in
Lightruss LED Gen 2
This is the sophisticated answer for large spaces that require multiple high output indirect fixtures, such as natatoriums and athletic facilities. Lightruss LED Gen 2 delivers a unified, organized system of asymmetric light and eliminates most all vertical power drops and fixture stem canopy arrays. The state-of-the-art, two-rail truss delivers power. It discreetly nests each high-performance fixture head, eliminating direct glare and improving comfort and visibility. Inside the luminaires, next generation LED technology delivers high lumen density at 127 lm/W. The system is capable of achieving high footcandle requirements, even for televised broadcasts. Available in 54,900, 82,300, and 109,800 lumen packages, Lightruss LED Gen 2 will help you light more with less fixtures. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Lightruss LED Gen 2 LRU12242

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • The best way to light natatoriums
  • True asymmetric optics with a deep forward throw
  • Glare-free with full horizontal cutoff
  • Slim, streamlined design that blends into architecture
  • The cleanest visual package
  • The only solution designed with a truss-type assembly and through wiring that saves money on installation by sharply reducing the number of power drop and conduit required
  • The system is pre-wired at the factory with multi-pin male/female connectors for fast and foolproof installation
  • Run up to 12 circuits through the rails (contact factory to discuss optional emergency or dimming)
  • Fusing protects from dirty power
  • Fully engineered for natatoriums, Lightruss LED Gen 2 is designed to deliver many years of reliability. It features all-aluminum construction; durable polyester powder coat paint finish (including fasteners in critical applications); fully potted power supplies; gasketed and fully sealed LED modules; and fail-safe, corrosion resistant hanging mechanisms.
  • Specially designed to operate in high ambient temperature environments
  • Innovative pin-fin aluminum heat-sink keeps LEDs cool, lengthening the life of the system
  • Lights from the perimeter, eliminating fixtures over pools
  • Fixture heads are easily accessed and can be removed, moved, and added after installation without disassembly of the entire system
  • LED modules and power supplies are integrated into a quick-change LED engine for fast and easy replacements
  • Turn lights on and off – instantly
  • System can be designed to turn corners and change elevation to follow the contours of the space
  • Easy to specify – our experienced applications team fully designs a system specific for your application and provides the documentation needed to design, bid, and install
  • Save 60% or more in energy costs when replacing an indirect Metal Halide (MH) system
  • Tried and tested, the Lightruss family has been installed in more than 1,200 facilities
  • Handcrafted in USA

Note: This spec sheet is for the fixture head only. Each fixture attaches to a dual rail truss system with self-supporting geometry.  The dual rail truss system is supported by fabricated bulkheads which mount by either corrosion-resistant nickel alloy aircraft cables or stem. Contact factory for a full system layout.

SPECIFICATIONS:

  • LIGHT SOURCE: White LED light engine with gasketed and sealed LEDs

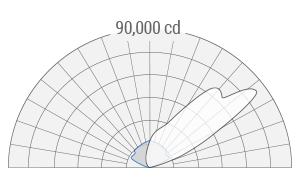

  • DISTRIBUTION: Indirect
  • LUMEN MAINTENANCE: L90 = >72,000 Hrs. at 45° ambient temperature
  • EFFICACY: Up to 127 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K standard
  • VOLTAGE: 120-277V standard
  • DRIVER: Fully potted integral Class 2 power supply standard
  • MAX AMBIENT OPERATING TEMP: 45°C (113°F); contact factory for higher ambient temp applications
  • DIMMING: Optional 10% dimming with 0-10v control available; contact factory
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Aluminum housing; extruded aluminum rails; precision molded acrylic optics
  • FINISH: All components finished to match, except for the heat sink which is always painted Satin Aluminum (PT50). Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

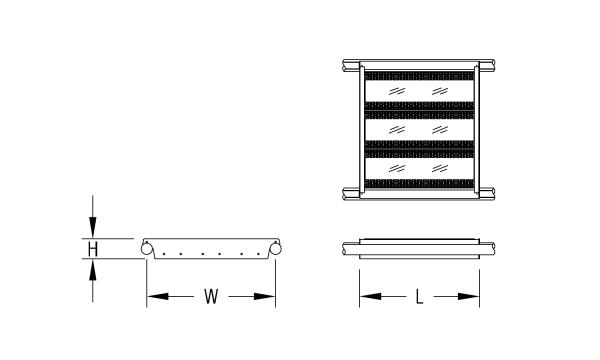

DIMENSIONS

Dimensions
W
25.7 in
65.3 cm
H
4 in
10.2 cm
L
24 in
61 cm
Mounting Weight
Approximate: 60 lb (28 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternate wattages available upon request.

L649W | White 649W LED Light Engine

Delivered Lumens: 82,293


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 3500K and 4000K CCT; apply multiplier for delivered lumens at other CCT. Contact factory for alternate color temperatures.

3000K 1 | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT

1 Apply .93 multiplier for delivered lumens

Optical Distribution *

DF_DA | Deep Asymmetric (default)

DA

Options

NAT | Natatorium Construction
