LRU12270 12.00 in
Lightruss Rail

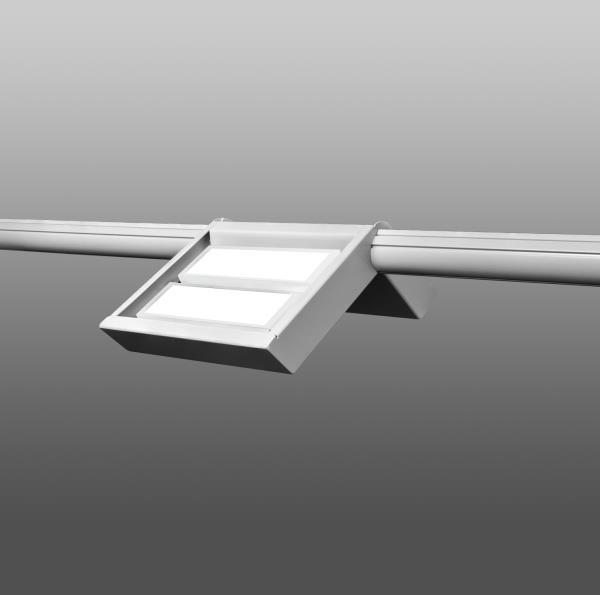

At just 2.5 inches deep, Lightruss Rail is the most compact product in the revolutionary Lightruss family. Designed with integrated LED modules, it brightly illuminates large spaces powerfully and efficiently. Mounted on a single rail, the system's streamlined design blends seamlessly with ceiling construction. Hinged housings clamp over the rail and are self-supporting without tools, simplifying installation and maintenance. It's an elegant way to safely light natatoriums or other high ceiling applications. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Lightruss Rail LRU12270

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Create a contemporary look with this low profile, single rail design
  • Present a clean visual package by encapsulating wireways and eliminating vertical stems
  • Lessen glare on surfaces, increase visual comfort and improve light uniformity with indirect lighting
  • Robust construction with natatorium option
  • Eliminate fixtures over pools
  • Save 25 to 30 percent on installation costs by reducing the number of power drops
  • Gain freedom and flexibility for ideal positioning of luminaires regardless of ceiling impediments such as supports, HVAC and other systems
  • Access and remove lighting modules without disassembling the entire system
  • Choose from visually-matching indirect and direct lighting luminaires
  • Rail system can be modified to turn corners and change elevations
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: Up to 130 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Fully potted integral Class 2 power supply standard
  • MAX AMBIENT OPERATING TEMP: 34°C (93°F)
  • DIMMING: 5% minimum dim level standard. 1% dimming optional.
  • CONTROLS: 0-10V 5% dimming standard. 0-10V 1% dimming, Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Aluminum housing; precision injection molded optics
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

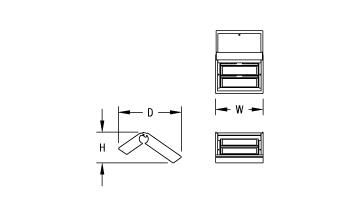

DIMENSIONS

Dimensions
W
12 in
30.5 cm
H
7.8 in
19.8 cm
D
15.9 in
40.4 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L98W | White 98W LED Light Engine

Delivered Lumens: 12,740


Voltage *

120-277V | Universal Voltage

Lamp Options *

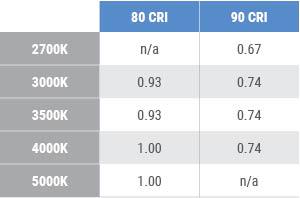

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 1 | (default)
90 2

1 Not available in 2700K
2 Not available in 5000K

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM5 | 0-10V Control, 5% Dimming (default)
DIM1 | 0-10V Control, 1% Dimming
AWNR 3 | Lutron Athena Wireless Node, 1% Dimming
NX 3 | Current NX Wireless, 1% Dimming
NLTA 3 | Acuity nLight Air, 1% Dimming

3 Not recommended for natatorium environments without additional component protection. Contact factory for options.

Mounting *

Hinged housing clamps over Lightruss Rail and is self-supporting without tools. Field adjustable aircraft cable allows the fixture to be mounted at an application appropriate height (up to OAH). Fixture modules can be added, removed or replaced without dismantling mounting track.

DF_AC | Corrosion-resistant nickel alloy aircraft cables (default)

Accessories

Cut-off shield (CS) and louver (LV) options cannot be used together.

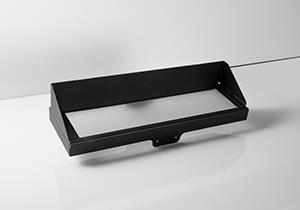

CS 4 | Cut-Off Shield

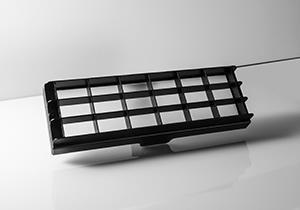

LV 5 | Louver

4 Apply .85 multiplier for delivered lumens
5 Apply .55 multiplier for delivered lumens
CS
LV

Options

When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
F | Fusing
