FEATURES & BENEFITS
- Save 40% or more in energy costs
- One-for-one fixture replacement fits into your existing system layout and maintains the current light distribution
- Reuses the existing truss and wiring
- Substantially improve light quality and color consistency
- Turn lights on and off – instantly
- Eliminate the cost, labor, and risks associated with multiple relamping cycles
- Vastly superior solution to retrofit lamps
- Glare-free with full horizontal cutoff

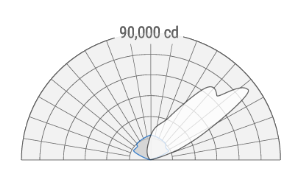

- True asymmetric optics with a deep forward throw
- Specially designed to operate in high ambient temperature environments
- Innovative pin-fin aluminum heat-sink keeps LEDs cool, lengthening the life of the system
- LED modules and power supplies are integrated into a quick-change LED engine
- DC surge suppression included (with NAT option) to increase the protection against minor surge events
- Compatible with Lightruss Size 2 metal halide systems
- Tried and tested, the Lightruss family has been installed in more than 1,200 facilities
- Handcrafted in USA
Note: This spec sheet is for the fixture head only.
SPECIFICATIONS:
- LIGHT SOURCE: White LED light engine with gasketed and sealed LEDs
- DISTRIBUTION: Indirect; contact factory to discuss direct options
- LUMEN MAINTENANCE: L90 = >72,000 Hrs. at 45° ambient temperature
- EFFICACY: Up to 127 lm/W delivered
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K standard
- VOLTAGE: 120-277V standard; contact factory for 347-480V systems
- CRI: 80+ or 90+
- DRIVER: Fully potted integral Class 2 power supply standard
- MAX AMBIENT OPERATING TEMP: 45°C (113°F); contact factory for higher ambient temp applications
- DIMMING: Optional 5% and 1% minimum dim levels available
- CONTROLS: Standard without controls. 0-10V, Lutron Athena, and nLight AIR optional. Contact factory for other controls (e.g., Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- CONSTRUCTION: Aluminum housing; extruded aluminum rails; precision molded acrylic optics
- FINISH: All components finished to match, except for the heat sink which is always painted Satin Aluminum (PT50). Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests, including the triangle truss
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

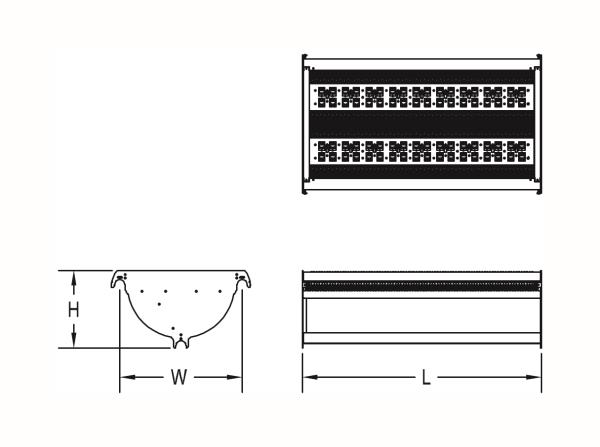

DIMENSIONS
Dimensions
Mounting Weight
Approximate: 60 lb (28 kg)
