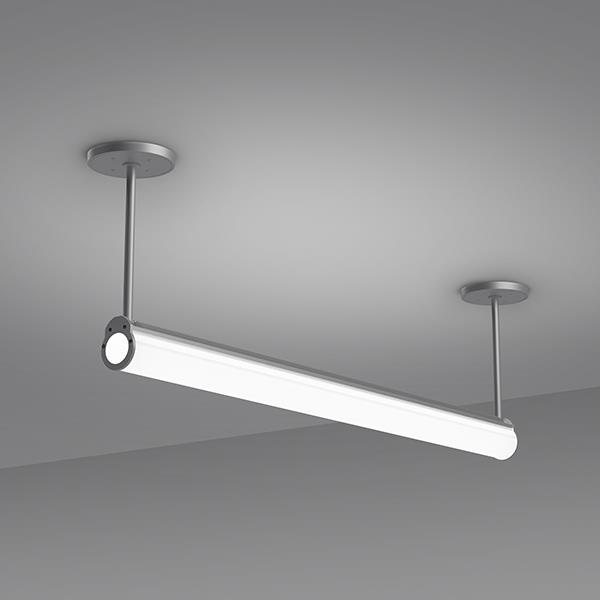

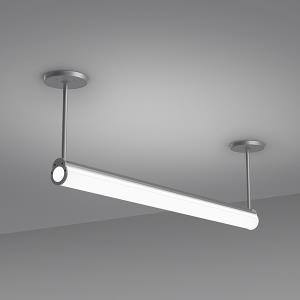

Lyon Exterior - Suspended
SEP12110 49 in
Lyon Exterior - Suspended
Lyon is a family of small-scale linear LED fixtures that delivers impressive performance at an affordable price. Designed for exterior applications, it is a practical choice for lighting eaves, covered walkways, outdoor canopies or other exterior spaces. The lens, available in five shapes, softly diffuses light with minimal glare. Lyon's simple design and versatility make it suitable for many kinds of spaces. Available in interior and exterior pendant, ceiling, and wall mount versions in 4' and 8' lengths.
Lyon Exterior - Suspended SEP12110

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Choose from 5 diffuser shapes
  • Configure in a run or hang as a pendant
  • Housing is engineered to act as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at optimal temperatures
  • Up to 1495 lm/foot delivered at high wattage
  • Semi-direct distribution of 89% direct/11% indirect
  • Anodized finish provides durable corrosion protection
  • Flush mounted external fasteners
  • Available in low, medium and high wattages
  • Provides functional lighting with comfortable luminance levels
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • EFFICACY:  105 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes remote wet listed Class II power supply. Each module requires connection to a 24V constant voltage power supply; modules over 60W may require multiple power supplies/feeds.
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • LENS:  Diffused acrylic lens
  • CONSTRUCTION:  Housing fabricated from 6000 series aluminum extrusion
  • FINISH:  Housing available in anodized finishes only with end caps, canopies, and mounting components painted to match
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static LED colors
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations

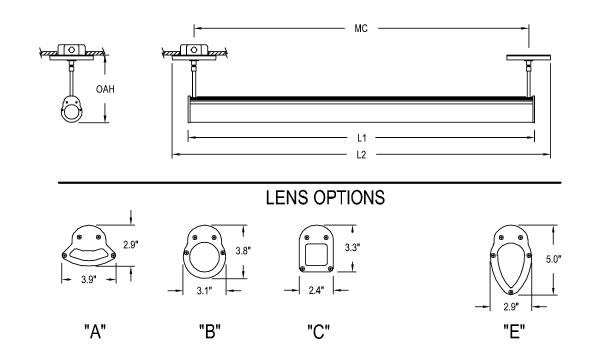

DIMENSIONS

Dimensions
L1
49.2 in
125 cm
L2
53.5 in
135.9 cm
OAH
36 in
91.4 cm
MC
47.3 in
120.1 cm
Mounting Weight
Consult Factory.
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L15W | White 15W LED Light Engine

Delivered Lumens: 1,594

L29W | White 29W LED Light Engine

Delivered Lumens: 3,001

L57W | White 57W LED Light Engine

Delivered Lumens: 6,001


Voltage

120-277V | Universal Voltage

Mounting

Mounts to standard 4" octagonal junction box. Features two 6.2" cast aluminum canopies. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

DF_STM | Stem Mount (default)

Linear Run

RUN 1 | Continuous Run
OAL | Specify Length of Run
  ft.

1 For a take-off and pricing, contact factory.   Runs are configured using 4' and 8' sections; consult factory for other lengths

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Emergency

EMR | Emergency Battery Remote

Options *

Shown at top with shape "B". See line art for dimensions. Alternate end cap finish (AEF) specified separately.

A | End Cap "A" Shape
B | End Cap "B" Shape
C | End Cap "C" Shape
D | End Cap "D" Shape
E | End Cap "E" Shape
EC01 | Solid End Cap
AEF 4 | Alternate End Cap Finish
A
B
C
D
E

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

4 Paint finishes are for end caps only
