Lyon Exterior - Suspended
SEP12111 96.20 in

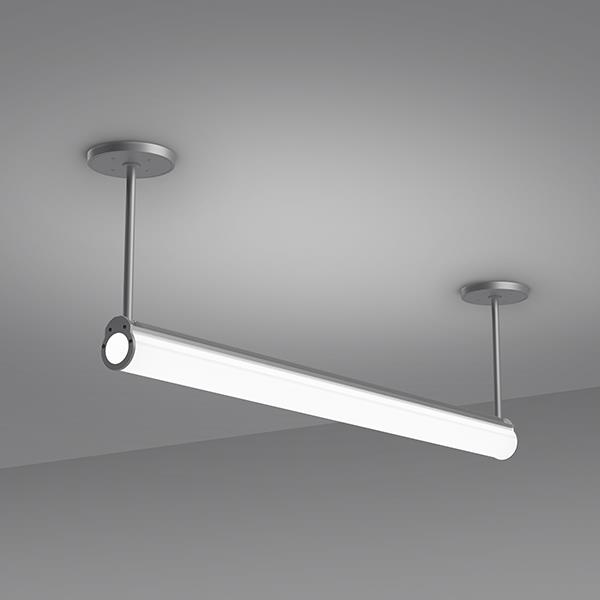

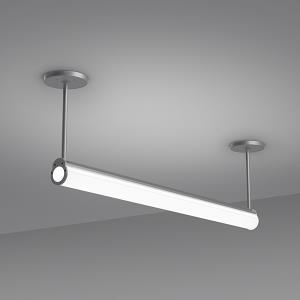

Lyon Exterior - Suspended
Lyon is a family of small-scale linear LED fixtures that delivers impressive performance at an affordable price. Designed for exterior applications, it is a practical choice for lighting eaves, covered walkways, outdoor canopies or other exterior spaces. The lens, available in four shapes, softly diffuses light with minimal glare. Lyon's simple design and versatility make it suitable for many kinds of spaces. Available in interior and exterior pendant, ceiling, and wall mount versions in 4' and 8' lengths.
Lyon Exterior - Suspended SEP12111

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Choose from 4 diffuser shapes
  • Housing is engineered to act as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at optimal temperatures
  • Semi-direct distribution of 89% direct/11% indirect
  • Anodized finish provides durable corrosion protection
  • Flush mounted external fasteners
  • Available in two wattages
  • Provides functional lighting with comfortable luminance levels
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  105 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes remote damp listed Class 2 power supply and either a damp location or wet location enclosure. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • LENS:  Diffused acrylic lens
  • CONSTRUCTION:  Housing fabricated from 6000 series aluminum extrusion
  • FINISH:  Housing available in anodized finish only with end caps, canopies, and mounting components painted to match
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static LED colors
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations

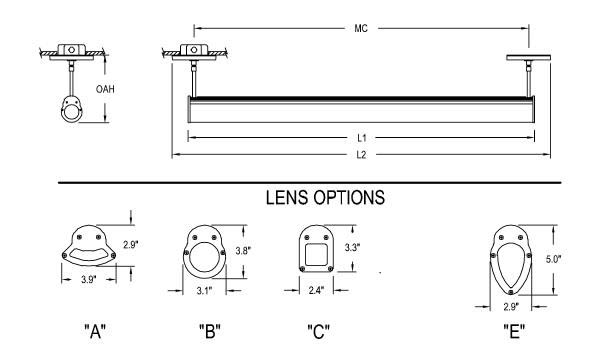

DIMENSIONS

Dimensions
L1
96.2 in
244.3 cm
L2
100.5 in
255.3 cm
OAH
36 in
91.4 cm
MC
94.3 in
239.5 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L28W | White 28W LED Light Engine

Delivered Lumens: 2,940

L56W | White 56W LED Light Engine

Delivered Lumens: 5,880

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 28.0 - Max 56.0
LU   Min 2940 - Max 5880

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Mounting *

Mounts to standard 4" octagonal junction box. Features two 6.2" cast aluminum canopies. Choose a mounting from below:

DF_STM | Stem Mount (default)

Remote Power Supply Enclosure *

PSE | Remote Power Supply with Damp Location Enclosure
PSE-NONE | Remote Power Supply without Enclosure
PSE-WL | Remote Power Supply with Wet Location Enclosure

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR will be included in enclosure specified above.

EMR 1 | Emergency Battery Remote

1 EMR not available with PSE-NONE

Lens Shapes *

Shown at top with shape "B". See line art for dimensions.

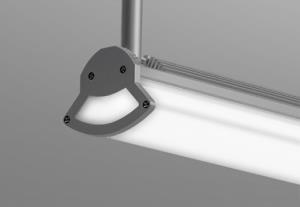

A | Lens Shape "A"

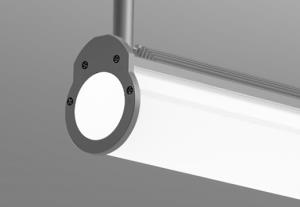

B | Lens Shape "B"

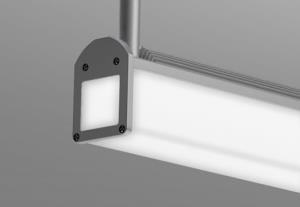

C | Lens Shape "C"

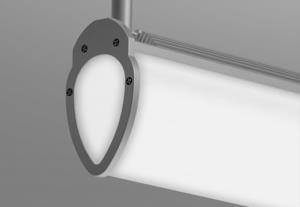

E | Lens Shape "E"

A
B
C
E

Options

Alternate end cap finish (AEF) specified separately.

EC01 | Solid End Cap
AEF 2 | Alternate End Cap Finish

2 Available in painted finishes only

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
